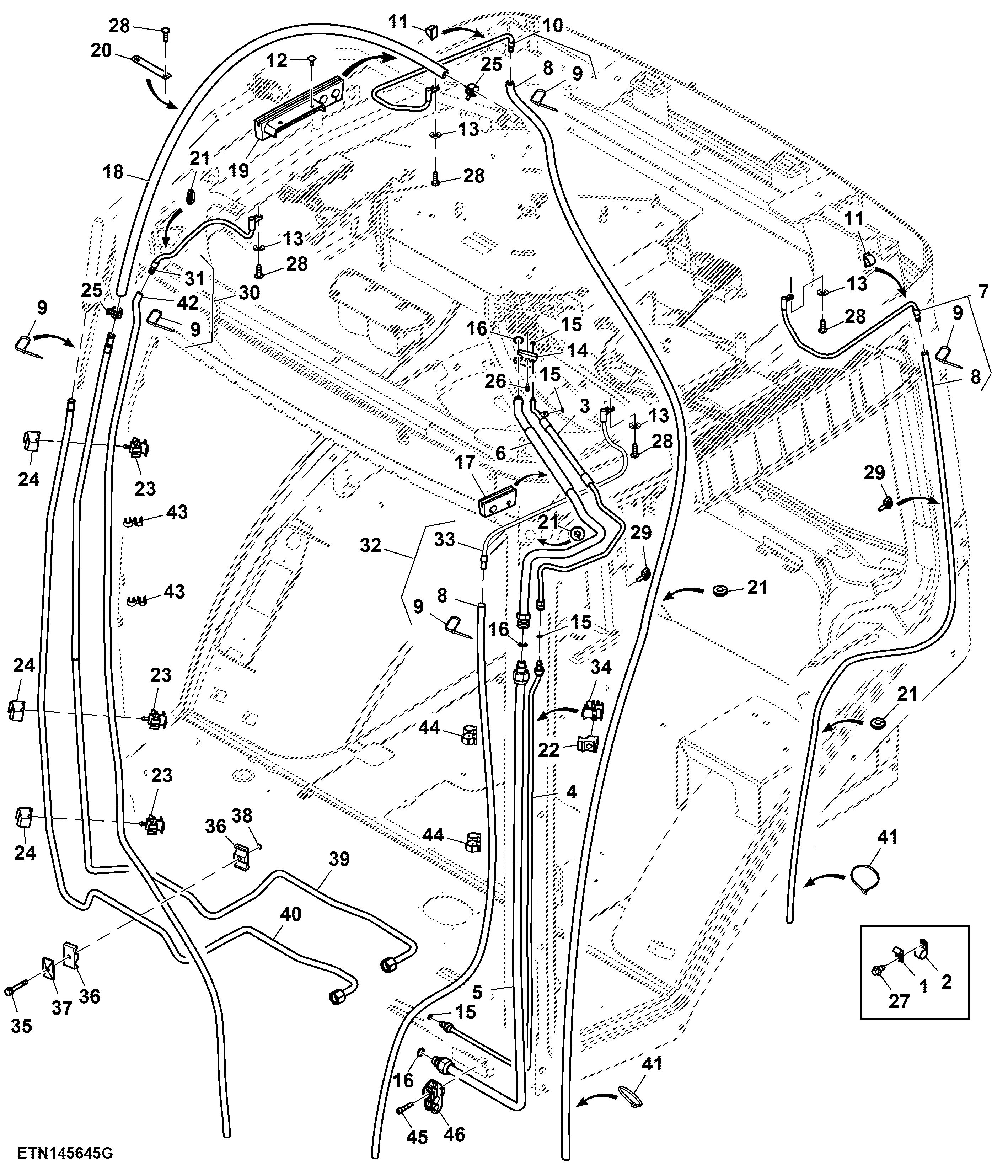

HVAC Lines, FT4 Engine (054000 - 062000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH76882	1	Clip	ORDER R561326; ALSO ORDER R552448
2	AH78237	1	Clamp	ORDER R561326; ALSO ORDER R552448
3	RE286824	1	Line	AC High Pressure, Roof
4	RE306558	1	Line	AC High Pressure, A-Post Supply Line
5	RE306560	1	Line	AC Suction, A-Post Return Line
6	RE310144	1	Line	Refrigerant, High Pressure
7	RE332499	1	Hose	Condensate Drain, LH Rear
8	R289547	3	Hose	Condensate Drain
9	R44302	5	Tie Band	-
10	RE332500	1	Hose	Condensate Drain, RH Rear
11	RE57589	2	Clip	-
12	R115466	2	Plug	-
13	24M7100	4	Washer	6.600 X 22 X 2 mm
14	R125223	1	Plate	-
15	R183409	4	O-Ring	-
16	R183412	3	O-Ring	-
17	R286827	1	Half Clamp	-
18	R286832	1	Hose	Heater Supply
19	R559859	1	Clamp	SUB FOR R286834
20	R289546	1	Strap	-
21	R291221	4	Grommet	-
22	R293158	3	Half Clamp	-
23	R294565	3	Half Clamp	-
24	R294567	3	Half Clamp	-
25	T184924	2	Hose Clamp	-
26	19M8666	1	Screw	M6 X 16
27	37M7092	1	Screw	M8 X 16, USE WITH AH76882 AND AH78237
28	37M7352	6	Screw	-
29	57M8902	2	Clip	-
30	RE573278	1	Hose	Condensate Drain, RH Front
31	R332503	1	Hose	Condensate Drain, RH Front
32	RE560644	1	Hose	Condensate Drain, LH Rear
33	R332501	1	Hose	Condensate Drain, LH Front
34	R542019	3	Half Clamp	-
35	19M7979	1	Screw	M8 X 55
36	H120847	2	Clamp	-
37	H121168	1	Plate	-
38	R280791	1	Push Nut	-
39	RE579565	1	Line	Coolant Supply
40	RE579566	1	Line	Coolant Return
41	R105388	3	Tie Band	-
42	R551492	1	Hose	-
43	L206271	2	Clamp	-
44	R215302	2	Clip	-
45	19M10361	1	Socket Head Screw	M8 X 35, SUB FOR APPL R552448; USE WITH R561326
46	R561326	1	Clamp	-
47	RE579567	1	Line	(Not Illustrated) INCLUDES (2) H120847, R280791, 19M7979, RE579566, RE579565, H121168 AND R44302
