Открытый узел

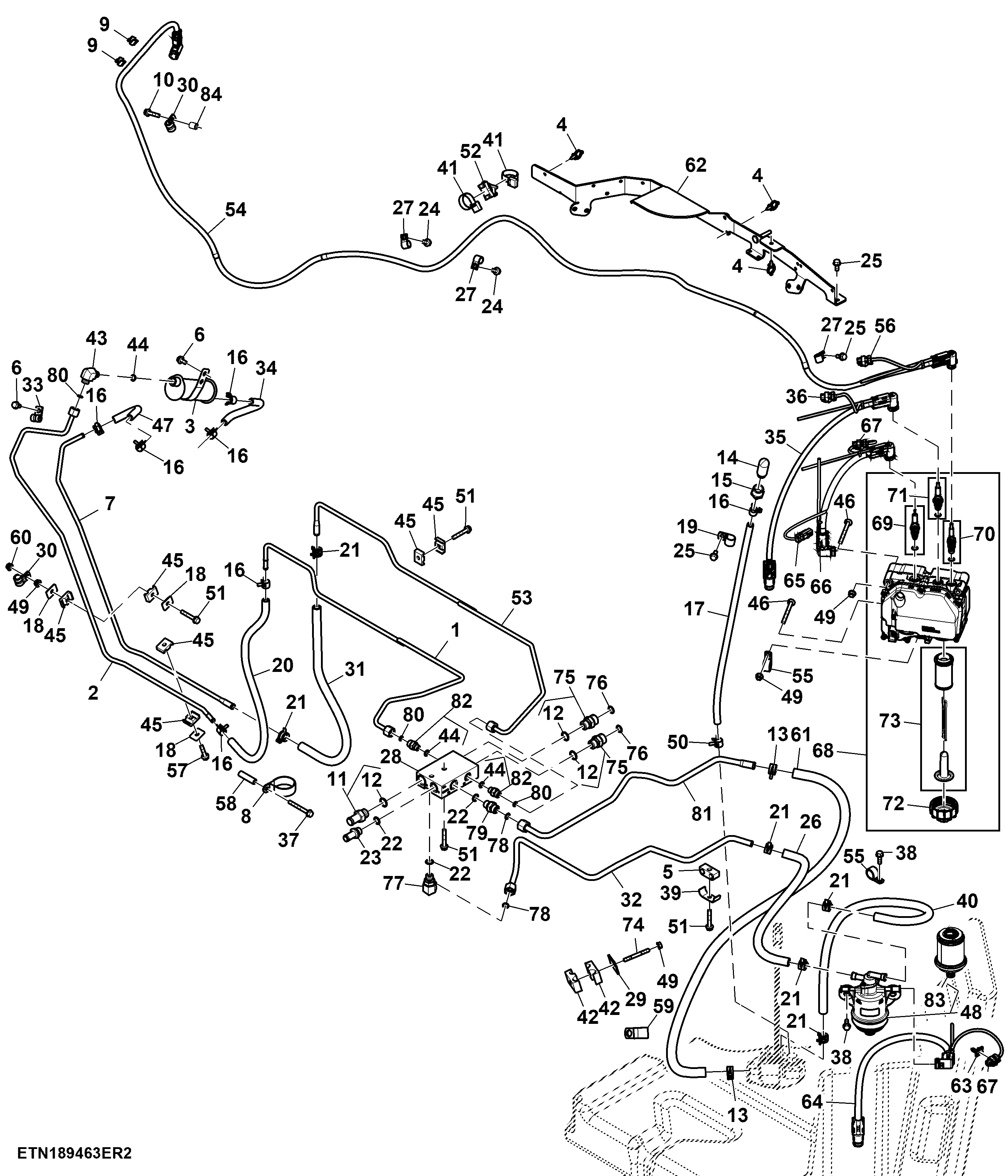

DEF Lines and Pumps, 9.0 L, FT4 Engine (062001 - 064007)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE579564	1	Line	DR Port On Coolant Manifold
2	RE577101	1	Line	Doser Coolant, Aftertreatment Device Upper
3	RE572217	1	Reservoir	-
4	RE258807	10	Tie Band	-
5	R184066	2	Clamp	-
6	19M10489	3	Screw	M8 X 16
7	RE577102	1	DEF Line	Doser Coolant Supply, Aftertreatment Device Lower
8	Z75620	1	Clamp	-
9	L156247	2	Clamp	-
10	19M7897	1	Screw	M8 X 35
11	RE223627	1	Hose Fitting	-
12	51M7045	3	O-Ring	19.300 X 2.200 mm
13	T184924	2	Hose Clamp	-
14	H216169	1	Breather	-
15	H216170	1	Fitting	-
16	R202160	7	Clamp	-
17	R551084	1	Hose	DEF Tank Vent
18	H121163	3	Strap	-
19	E53830	1	Clamp	-
20	R552818	1	Hose	Connects Undercab On RH Side To Tube On
21	R184863	6	Hose Clamp	-
22	51M7043	3	O-Ring	15.300 X 2.200 mm
23	R543495	1	Fitting	-
24	19M7865	2	Screw	M8 X 16
25	19M7866	4	Screw	M8 X 20
26	R564470	1	Hose	Coolant Return
27	R34557	3	Clamp	-
28	R558030	1	Manifold	-
29	H112567	1	Plate	-
30	T269640	2	Clamp	-
31	R552817	1	Hose	Coolant Undercab To Doser
32	RE579562	1	Line	DEF Tank to Manifold
33	T269643	1	Clamp	-
34	R551015	1	Hose	DEF Doser Coolant
35	RE572155	1	DEF Line	Backflow
36	57M9774	1	Elec. Connector Housing	-
37	19M7803	1	Screw	M8 X 70
38	19M7867	3	Screw	M8 X 25
39	R184060	1	Cover	-
40	R564469	1	Hose	Coolant Return
41	H224073	2	Tie Band	-
42	H114897	2	Clamp	-
43	38H5016	1	Elbow Fitting	-
44	51M7041	3	O-Ring	11.300 X 2.200 mm
45	H128515	6	Clamp	-
46	03M7295	3	Bolt	M8 X 90
47	R551016	1	Hose	Upper Doser Coolant Port To Upper Doser
48	DZ118548	1	Filter	SUB FOR DZ107716
49	14M7298	5	Flange Nut	M8
50	R251581	1	Clamp	-
51	19M7800	5	Screw	M8 X 50
52	AN209168	1	Swivel	-
53	RE579563	1	Line	DS Port On Coolant Manifold
54	RE573112	1	DEF Line	Pressure
55	T72393	2	Clamp	SUB FOR APPL 57M12124
56	57M9773	1	Elec. Connector Housing	-
57	19M7798	1	Screw	M8 X 40
58	28H3470	1	Spacer	0.364" X 0.540" X 2"
59	R194708	1	Clamp	-
60	14M7573	1	Flange Nut	M8
61	R562779	1	Hose	Coolant Supply
62	RE590624	1	Bracket	-
63	57M9940	1	Elec. Connector Accessory	-
64	DZ113640	1	DEF Line	Suction MARKED RE591451
65	57M9776	1	Elec. Connector Housing	-
66	DZ113641	1	DEF Line	Suction Jumper MARKED RE591452
67	57M9772	2	Elec. Connector Housing	-
68	DZ119474	1	DEF Dosing Unit Pump	ORDER DZ121770; SUB FOR DZ111283
69	RE549603	1	Adapter Fitting	-
70	RE549604	1	Adapter Fitting	-
71	RE549605	1	Adapter Fitting	-
72	RE555351	1	Cap	-
73	DZ114640	1	Filter Kit	DEF Supply Module Filter
74	42M7034	1	Stud	-
75	38H5004	2	Adapter Fitting	-
76	T77932	2	O-Ring	-
77	38H5017	1	Elbow Fitting	-
78	T77857	2	O-Ring	-
79	38H5003	1	Adapter Fitting	-
80	T77613	3	O-Ring	-
81	RE579561	1	Line	Coolant Manifold To DEF Tank
82	38H5002	2	Adapter Fitting	-
83	DZ110513	1	Filter Kit	-
84	R552450	1	Spacer	-

DEF Lines and Pumps, 9.0 L, FT4 Engine (062001 - 064007)
