Cab Wiring Harness, Generation 4 CommandCenter™ 4600 Processor (1/3) ( - 055999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580346	1	Cab Wiring Harness	SUB FOR RE573616
1	RE581065	1	Cab Wiring Harness	-
1	RE570674	1	Cab Wiring Harness	-
2	57M7714	1	Electrical Connector Assy	PDU
2	57M7719	1	Electrical Connector Assy	-
2	RWA10603	5	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
3	57M7713	1	Electrical Connector Assy	ISO6
3	57M7718	1	Electrical Connector Assy	-
3	RWA11123	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
4	57M9232	1	Elec. Connector Seal	-
4	RWA11133	7	Repair Wire Assembly	Cavity V, R, U, M, L, P, N
4	57M9231	1	Elec. Connector Housing	ITT Cannon
5	57M10233	1	Tie Band	-
6	57M10362	2	Clamp	-
7	57M7785	1	Elec. Connector Housing	Decel Switch
7	57M7724	1	Electrical Connector Assy	-
7	RWA11086	2	Repair Wire Assembly	Cavity A, B
8	RWA10620	2	Repair Wire Assembly	Cavity A8, B7
8	RWA10621	1	Repair Wire Assembly	Cavity A7
8	RWA10671	3	Repair Wire Assembly	Cavity A9, B8, B9
8	RWA11096	3	Repair Wire Assembly	Cavity B13, A1, A15
8	57M11346	1	Elec. Connector Housing	FCS1
8	RWA10627	20	Repair Wire Assembly	Cavity B3, B10, B6, A4, A5, A6, A14, A10, B14, B15, A11, A12, A13, B1, B2, B4, B5, B12, A3, B11
9	57M11348	1	Elec. Connector Housing	FCS2
9	RWA10654	7	Repair Wire Assembly	Cavity A2, A3, A5, A6, A10, A11, A4
9	RWA11095	1	Repair Wire Assembly	Cavity A14
10	-	1	Part 27	-
11	57M11364	1	Elec. Connector Accessory	-
12	57M7261	1	Elec. Connector Housing	MOB2
12	57M7296	1	Elec. Connector Accessory	-
12	RWA10689	2	Repair Wire Assembly	Cavity C, D
12	RWA11083	1	Repair Wire Assembly	Cavity F
13	57M7264	1	Elec. Connector Housing	X119
13	RWA11082	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H
13	57M7283	1	Elec.Connect Locking Device	-
14	57M8021	1	Electrical Connector Assy	ICP1
14	57M8022	1	Elec.Connect Locking Device	-
14	RWA10656	2	Repair Wire Assembly	Cavity 1, 2
15	57M8015	1	Electrical Connector Assy	ICC1
15	57M8016	1	Elec.Connect Locking Device	-
15	RWA10604	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
16	RWA10713	1	Repair Wire Assembly	Cavity A
16	57M7293	1	Elec. Connector Housing	RDR1
16	57M7295	1	Elec.Connect Locking Device	-
17	RE186986	1	Junction Block	-
18	57M7557	1	Elec. Connector Terminal	RJB3
19	57M8875	1	Elec. Connector Terminal	RJB2
20	57M8875	1	Elec. Connector Terminal	RJB1
21	14M7297	2	Nut	M5
22	-	2	Part 50	-
23	14M7194	1	Nut	M6
24	-	1	Part 52	-
25	RWA10632	4	Repair Wire Assembly	Cavity 1, 2, 3, 4
25	57M7619	1	Elec.Connect Locking Device	-
25	57M8017	1	Elec. Connector Housing	ICC2
26	57M8023	1	Elec. Connector Housing	ICP2
26	57M7621	1	Elec.Connect Locking Device	-
26	RWA10629	2	Repair Wire Assembly	Cavity 1, 2
27	57M7294	1	Elec. Connector Housing	RDR2
27	57M7295	1	Elec.Connect Locking Device	-
27	RWA10688	1	Repair Wire Assembly	Cavity A
28	RWA10688	1	Repair Wire Assembly	Cavity A
28	57M7295	1	Elec.Connect Locking Device	-
28	57M7294	1	Elec. Connector Housing	GPS1
29	57M7293	1	Elec. Connector Housing	-
29	57M7295	1	Elec.Connect Locking Device	-
30	57M9183	1	Elec. Connector Housing	SERA
30	RWA10632	4	Repair Wire Assembly	Cavity H, J, C, D
30	RWA10629	2	Repair Wire Assembly	Cavity B, A
31	57M9182	1	Nut	-
32	57M9734	1	Elec. Connector Housing	GYRO
32	RWA10628	3	Repair Wire Assembly	Cavity 1, 2, 3
33	57M7717	1	Electrical Connector Assy	Server-J1
33	RWA11122	3	Repair Wire Assembly	Cavity 3, 9, 10
33	RWA10603	8	Repair Wire Assembly	Cavity 1, 2, 8, 16, 6, 14, 5, 13
33	57M7722	1	Electrical Connector Assy	-
34	57M8012	1	Electrical Connector Assy	ISOR
34	57M8013	1	Elec.Connect Locking Device	-
34	RWA10604	6	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
35	57M9354	1	Elec. Connector Housing	ISO3
35	RWA10674	8	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 8, 9
35	RWA10672	1	Repair Wire Assembly	Cavity 7

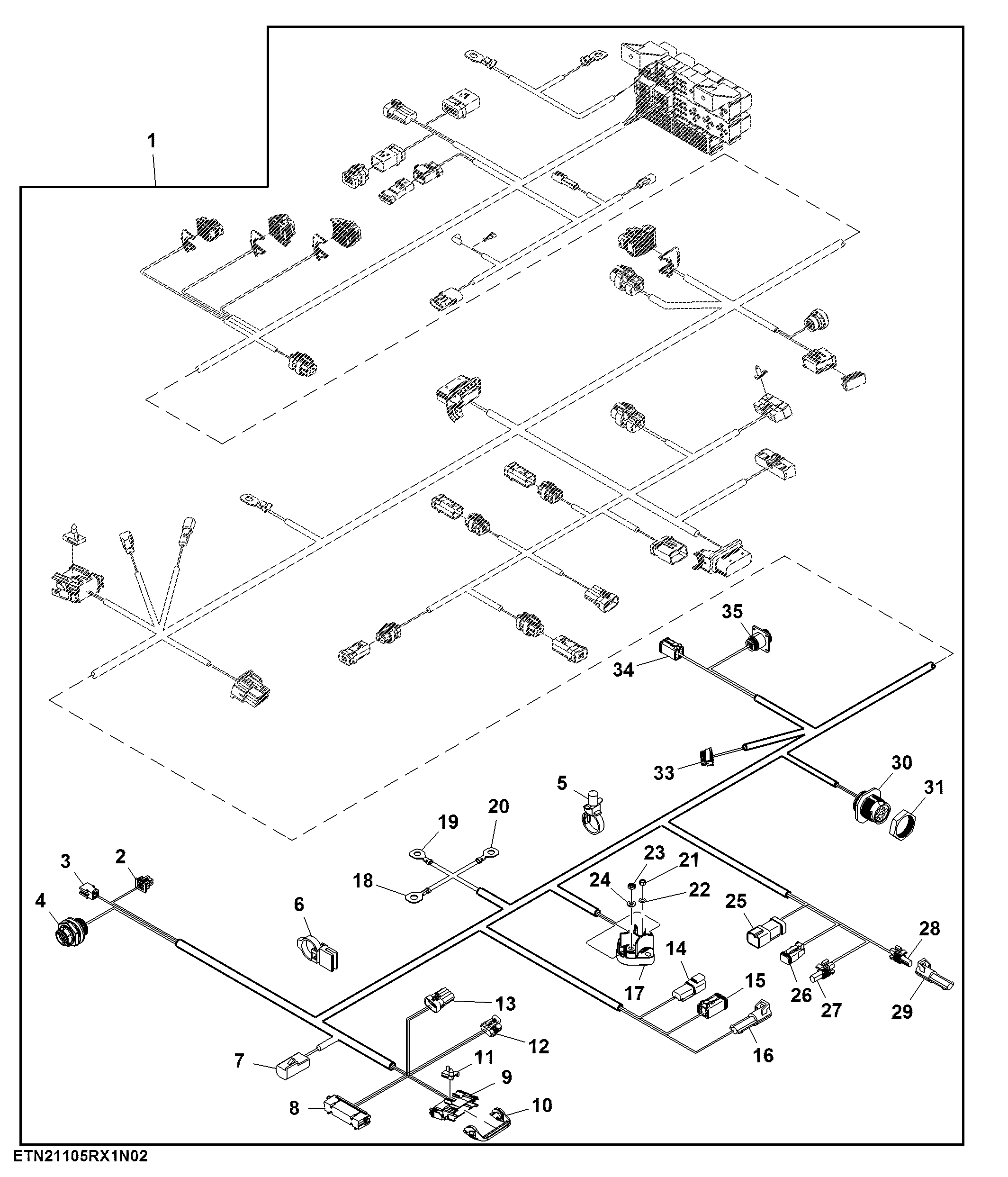

Cab Wiring Harness, Generation 4 CommandCenter™ 4600 Processor (1/3) ( - 055999)
