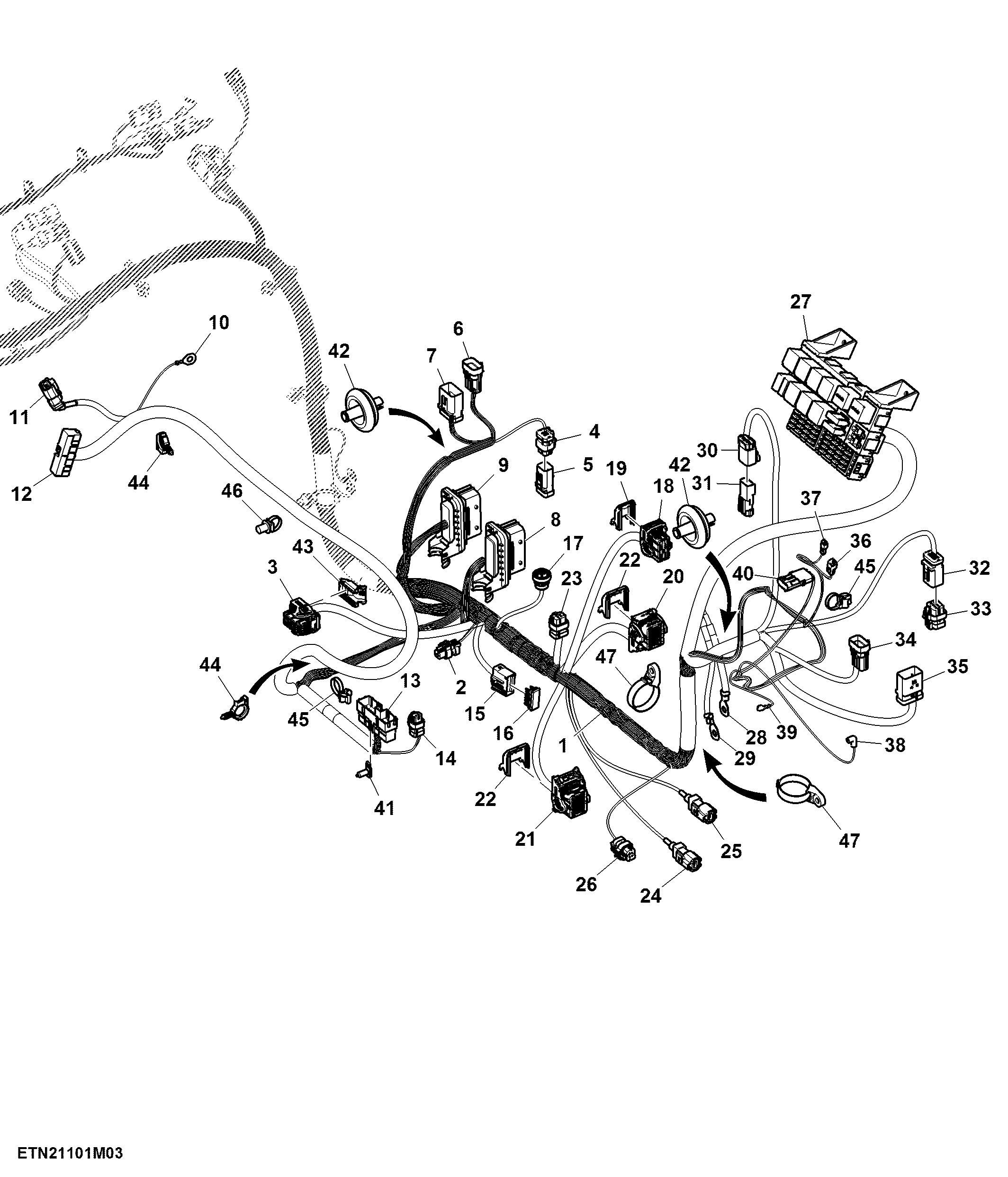

Cab Wiring Harness, Generation 4 CommandCenter™ 4100 Processor (3/3) ( - 055999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE580345	1	Cab Wiring Harness	SUB FOR RE570673 OR RE573615 OR RE581064
2	57M9772	1	Elec. Connector Housing	X901A, Machine Communications Radio Connector (MCR)
2	RWA11026	1	Repair Wire Assembly	Cavity 1, 2
3	57M10614	1	Elec. Connector Housing	A990, MWG Connector J2
3	RWA11030	1	Repair Wire Assembly	Cavity F3, G1, G2, H1, H2
3	RWA11032	1	Repair Wire Assembly	Cavity M1, M2, L1, M4
4	57M9817	1	Elec. Connector Housing	X140, Camera 1
5	57M9821	1	Elec. Connector Housing	-
5	RWA10614	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M7264	1	Elec. Connector Housing	Right Fender Harness Connector
6	57M7283	1	Elec.Connect Locking Device	-
6	RWA10714	1	Repair Wire Assembly	Cavity E, A, F, B, C, D, G, H
7	57M9804	1	Elec. Connector Housing	Right External Switches
7	RWA11025	1	Repair Wire Assembly	Cavity 5, 6, 11, 12, 10, 7, 9, 8, 2, 3, 1, 4
8	57M11527	1	Elec. Connector Accessory	-
8	RWA11025	1	Repair Wire Assembly	Cavity 23, 17, 24, 8, 9, 11, 14, 4, 5
8	RWA11025	1	Repair Wire Assembly	Cavity 10, 15, 16, 26, 12, 3, 13, 19, 20
8	57M11525	1	Elec. Connector Housing	X501, Cab to Chassis Harness Interconnect 2
9	57M11526	1	Elec. Connector Housing	X500, Cab to Chassis Harness Interconnect 1
9	57M11527	1	Elec. Connector Accessory	-
9	RWA11025	1	Repair Wire Assembly	Cavity 4, 22
9	RWA11025	1	Repair Wire Assembly	Cavity 19, 8
9	RWA11025	1	Repair Wire Assembly	Cavity 14, 15, 16, 3, 6, 21, 9, 10, 12, 13, 26, 5, 11, 20, 7, 24, 25
10	57M8291	1	Elec. Connector Terminal	Ground
11	RE340368	1	Monitor Wiring Harness	Commamnd Arm Display Cable
12	57M8859	1	Elec.Connect Locking Device	-
12	57M8860	1	Elec.Connect Locking Device	-
12	RWA11078	1	Repair Wire Assembly	Cavity W, V
12	RWA10664	1	Repair Wire Assembly	Cavity S, P, C, A, T, U
12	RWA10665	1	Repair Wire Assembly	Cavity R, M, J, H , L, K, Z, X, D, E
12	57M8858	1	Elec. Connector Housing	X750, Cab to Main Armrest Harness Interconnect
13	RWA11077	1	Repair Wire Assembly	Cavity A, P, T, U, V
13	RWA10637	1	Repair Wire Assembly	Cavity C, D, E, F, G, H, L, M, N, R, S, J, K, Z, X, W
13	RWA10636	1	Repair Wire Assembly	Cavity Y, B
13	57M8860	1	Elec.Connect Locking Device	-
13	57M8859	1	Elec.Connect Locking Device	-
13	57M8857	1	Elec. Connector Housing	X930, Seat to Cab Harness Interconnect
14	57M9772	1	Elec. Connector Housing	E500, Refrigerator
14	RWA11026	1	Repair Wire Assembly	Cavity 1, 2
15	57M11347	1	Elec. Connector Housing	SS1, Splice Pack 1
15	RWA10605	1	Repair Wire Assembly	Cavity K
15	RWA10651	1	Repair Wire Assembly	Cavity B, E, J, M, C, D, H
16	-	1	Part 43	-
17	AZ34598	1	Elec. Connector Terminal	A128, Sub-Woofer Connector
17	RWA10673	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
18	RWA11030	1	Repair Wire Assembly	Cavity A4, B2, J3, B3, C1, G1, K3, K4, A3, H2, F2, G2, G3, J2, E3, D2, D4, C3, E1, F4, E2, E4, H3, F1, H1, B4, G4, K1, H4, A1, B1
18	57M10615	1	Elec. Connector Housing	A107-1, MECA Cab Controller J1
18	RWA11032	1	Repair Wire Assembly	Cavity M4, M3, L3, L4, M2, L2, M1
19	57M10613	1	Elec. Connector Housing	-
20	57M10214	1	Elec. Connector Housing	A107-2, MECA Cab Controller J2
20	RWA10711	1	Repair Wire Assembly	Cavity 4, 3
20	RWA11030	1	Repair Wire Assembly	Cavity 46, 45, 26, 14, 11, 13, 24, 12
21	57M10329	1	Elec. Connector Housing	A107-3, MECA Cab Controller J3
21	RWA10702	1	Repair Wire Assembly	Cavity 1
21	RWA10711	1	Repair Wire Assembly	Cavity 5, 4, 2, 3
21	RWA11032	1	Repair Wire Assembly	Cavity 53, 6, 42, 18, 17, 29, 30, 41
21	RWA11030	1	Repair Wire Assembly	Cavity 10, 47, 50, 26, 51, 38, 24, 27, 39, 37, 25, 12, 13, 52, 11, 35, 8, 23, 40, 46, 28, 16, 31, 33, 43, 20, 34, 32, 36
22	57M10401	2	Elec. Connector Accessory	-
23	RWA11026	1	Repair Wire Assembly	Cavity 1, 2, 4, 3
23	57M9817	1	Elec. Connector Housing	X900, Satellite Option
24	RE573618	1	Cable	A-Post Display
25	RE573617	1	Cable	Server
26	57M9817	1	Elec. Connector Housing	Ethernet Switch
27	-	1	Part 64	-
28	57M8821	1	Elec. Connector Terminal	R2A, Cab Battery Power
29	57M8821	1	Elec. Connector Terminal	R2B, Cab Battery Power
30	57M9175	1	Elec. Connector Housing	PAPTOS Power Connector
30	RWA10639	1	Repair Wire Assembly	Cavity 1, 3
31	57M10305	1	Elec. Connector Housing	Paptos Power Dust Cap
32	RWA11025	1	Repair Wire Assembly	Cavity 3, 6, 4, 5, 7, 2, 1
32	57M9796	1	Elec. Connector Housing	Gyro and Secondary Brake Leads
33	57M9792	1	Elec. Connector Housing	-
34	57M7264	1	Elec. Connector Housing	X119, Left Fender Harness Connector
34	57M7283	1	Elec.Connect Locking Device	-
34	RWA10714	1	Repair Wire Assembly	Cavity E, F, B, A, C, D, H, G
35	57M9804	1	Elec. Connector Housing	Left External Switches
35	RWA11025	1	Repair Wire Assembly	Cavity 8, 9, 3, 2, 11, 12, 7, 10, 4, 1, 6, 5
36	57M7784	1	Electrical Connector Assy	Left Extremity Light
36	57M7723	1	Electrical Connector Assy	-
36	RWA11085	1	Repair Wire Assembly	Cavity A, B
37	57M7782	1	Electrical Connector Assy	E104, Left Extremity Light
37	RWA11085	1	Repair Wire Assembly	Cavity 1
38	-	1	Part 83	Left Side Lighter Power USE WITH RE580345
39	U46662	1	Elec. Connector Terminal	Left Side Lighter Ground USE WITH RE580345
39	RWA10667	1	Repair Wire Assembly	Cavity 1
40	R78054	1	Electrical Connector Assy	X104, Convenience Outlet 2 USE WITH RE580345
40	RWA10686	1	Repair Wire Assembly	Cavity A, B, C
41	57M8910	1	Clip	-
42	57M12166	2	Elec. Connector Seal	-
43	57M8527	1	Elec. Connector Housing	-
44	57M8908	2	Clip	-
45	57M11797	3	Elec. Connector Accessory	-
46	-	1	Part 93	-
47	-	4	Part 94	-

Cab Wiring Harness, Generation 4 CommandCenter™ 4100 Processor (3/3) ( - 055999)

Нет текстового описания
