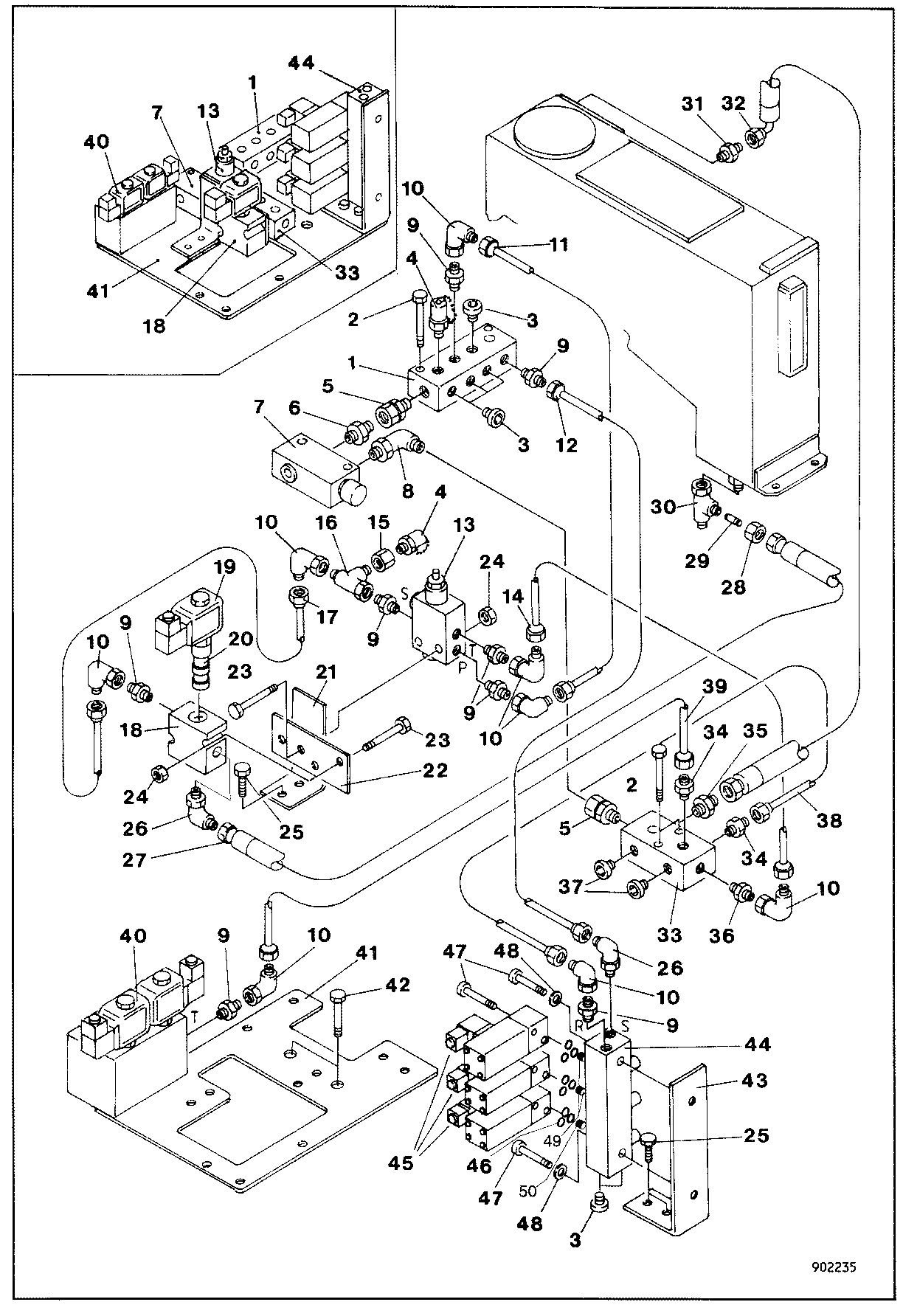

HYDRAULIC SYSTEM VALVE BLOCK SECTION 98031 41 24 ( 9330191 - ) 902235 [902235]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F040239	1	CONNECTING BLOCK	-
2	F003471	4	SCREW	-
3	F003382	6	PLUG	-
4	F023426	2	Fitting	-
5	F023698	2	CONNECTION	-
6	F005061	1	Fitting	-
7	F026648	1	RELIEF CARTRIDGE	-
8	F005048	1	Elbow Fitting	-
9	F005057	8	Fitting	-
10	F022417	8	Elbow Fitting	-
11	F040711	1	PIPE ASSY	-
12	F040714	1	PIPE ASSY	-
13	F005505	1	RELIEF VALVE	-
14	F040715	1	PIPE ASSY	-
15	F024364	1	Fitting	-
16	F023535	1	Tee Fitting	-
17	F040710	1	PIPE ASSY	-
18	F016414	1	VALVE BLOCK	-
19	F011170	1	SOLENOID	-
20	F012947	1	VALVE	-
21	F040287	1	BRACKET	-
22	F040687	1	FRAMEWORK	-
23	F003470	4	SCREW	-
24	F003586	4	LOCK NUT	-
25	F003524	4	SCREW	-
26	F024599	2	Elbow Fitting	-
27	F041048	1	HOSE-ASSY	-
28	F005092	1	Sleeve Fitting	-
29	F005078	1	Reducer	-
30	-------	1	O-RING	-
31	F012507	1	Fitting	-
32	F041056	1	HOSE-ASSY	-
33	F040240	1	CONNECTING BLOCK	-
34	F005055	2	NIPPLE	-
35	F005061	1	Fitting	-
36	F005056	1	Fitting	-
37	F003383	2	PLUG	-
38	F040713	1	PIPE ASSY	-
39	F040708	1	PIPE ASSY	-
40	-------	1	O-RING	-
41	F040690	1	PLATE	-
42	F026213	2	SCREW	-
43	F040681	1	FRAMEWORK	-
44	F026651	1	BOTTOM PLATE	-
45	F004557	3	CONTROL VALVE	-
46	F004560	9	O-RING	-
47	F003406	8	SCREW	-
48	F003345	2	Spring Washer	-
49	F017238	2	THROTTLE SCREW	-
50	F004626	1	Orifice	-

HYDRAULIC SYSTEM VALVE BLOCK SECTION 98031 41 24 ( 9330191 - ) 902235 [902235]
