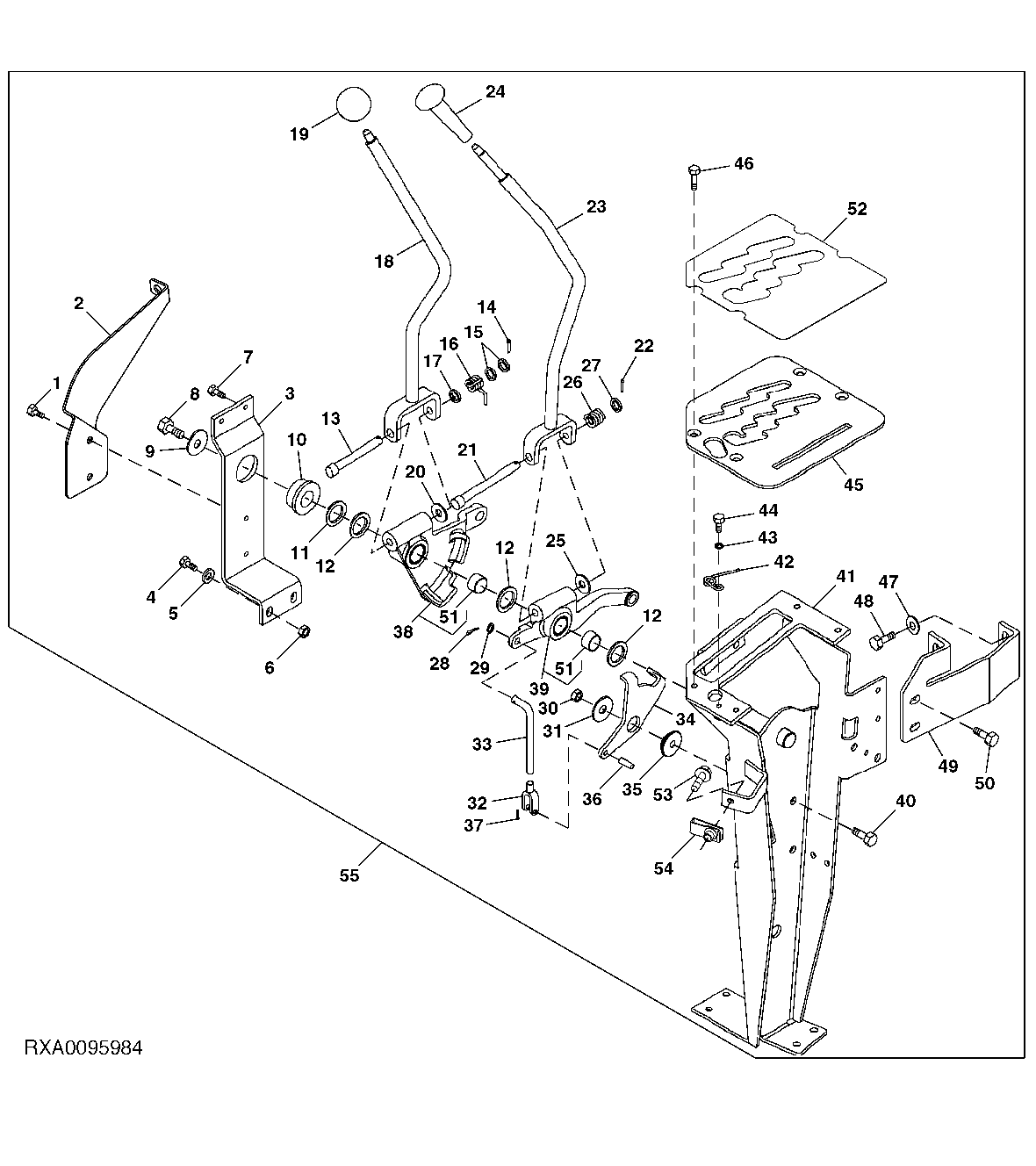

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7881	2	Screw	M8 X 20
2	R258583	1	Bracket	-
3	R128797	1	Support	-
4	19M7881	2	Screw	M8 X 20
5	24M7207	2	Washer	8.400 X 24 X 2 mm
6	14M7347	2	Nut	M8
7	19M7881	2	Screw	M8 X 20
8	R87789	1	Self-Locking Screw	-
9	R60671	1	Washer	-
10	R62927	1	Spacer	-
11	24H1422	1	Shim	TK = 0.46 mm
12	R42127	3	Washer	-
13	R53510	1	Pin Fastener	-
14	11M7021	1	Cotter Pin	4 X 25 mm
15	24H1303	2	WASHER	13/32" X 11/16" X 0.065"
16	R132077	1	Torsion Spring	-
17	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
18	RE251156	1	Lever	(SPEED SELECTOR)
19	R161382	1	Knob	-
20	R105815	1	Washer	-
21	R53510	1	Pin Fastener	-
22	11M7021	1	Cotter Pin	4 X 25 mm
23	RE58752	1	Lever	(RANGE SELECTOR)
24	R161381	1	Knob	-
25	R105815	1	Washer	-
26	R53692	1	Spring	-
27	24H1303	1	WASHER	13/32" X 11/16" X 0.065"
28	11M7079	1	Cotter Pin	2.500 X 12 mm
29	24H1136	1	Washer	11/32" X 11/16" X 0.065"
30	14H1076	1	Nut	3/8"
31	R60671	1	Washer	-
32	R42282	1	Yoke	-
33	R89854	1	Hook Bolt	-
34	R89853	1	Latch	-
35	R60670	1	Lock Washer	-
36	R72660	1	Pin Fastener	-
37	11M7079	1	Cotter Pin	2.500 X 12 mm
38	RE58755	1	Arm	(SPEED SELECTOR)
39	RE64144	1	Arm	(RANGE SELECTOR)
40	19H1732	1	Cap Screw	3/8" X 1-1/4"
41	RE246950	1	Support	-
42	R64634	1	Torsion Spring	-
43	24M7088	1	Washer	6.600 X 12 X 1.600 mm
44	19M7560	1	Cap Screw	M6 X 16
45	R257347	1	Plate	-
46	19M7585	4	Screw	M8 X 25
47	24M7036	2	Washer	9 X 16 X 1.600 mm
48	19M7162	2	Cap Screw	M8 X 16
49	R236489	1	Bracket	-
50	37M7092	2	Screw	M8 X 16
51	R26182	2	Bushing	-
52	R257346	1	Label	-
53	19M7862	1	Screw	M6 X 20
54	R133066	1	Nut	-
55	RE246948	1	Lever	-

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT
