Открытый узел

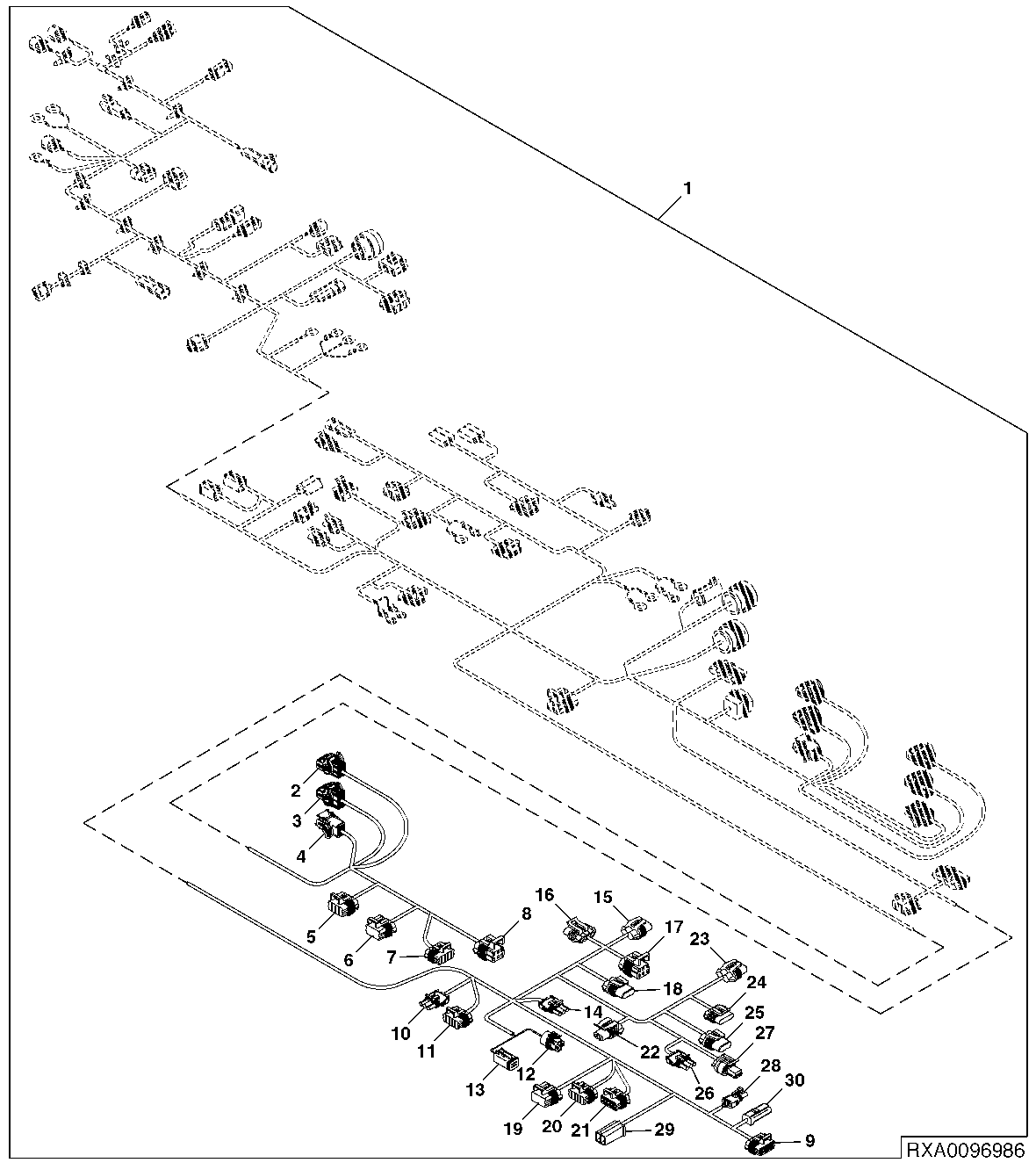

Chassis Wiring Harness Connectors (3/3) (EV) ( - 012999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE291359	1	Chassis Wiring Harness	-
1	RE227797	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	ENGINE CONTROL UNIT (J1)
3	57M8527	1	Elec. Connector Housing	ENGINE CONTROL UNIT (J2)
4	57M8523	1	Elec. Connector Housing	ENGINE CONTROL UNIT (J3)
5	57M7284	1	Elec. Connector Housing	SCV 5 & 6
5	57M7296	1	Elec. Connector Accessory	-
6	57M7261	1	Elec. Connector Housing	AUTO TRACK
6	57M7296	1	Elec. Connector Accessory	-
7	57M9377	1	Elec. Connector Housing	TRANSMISSION CONNECTION
7	57M8035	1	Nut	-
7	57M9061	1	Elec.Connect Locking Device	-
8	57M7291	1	Electrical Connector Assy	-
8	RE207311	1	Electronic Control Unit	-
8	57M7260	1	Elec. Connector Housing	CAM TERMINATION
9	-	1	Part 16	TRAILER OUTLET
10	RE12364	1	Electrical Connector Assy	DRAFT SENSOR
11	57M7262	1	Elec. Connector Housing	REAR AXLE
12	R201059	1	Housing	IMP CONNECTOR
12	R208787	1	Seal	-
13	57M8015	1	Electrical Connector Assy	GREENSTAR BREAK AWAY
14	RE12364	1	Electrical Connector Assy	ROCKSHAFT POS
15	57M8839	1	Elec. Connector Housing	LEFT REAR IN FF
15	57M8129	1	Elec. Connector Terminal	-
16	57M7469	1	Electrical Connector Assy	-
16	57M8416	1	Elec. Connector Housing	LEFT TAIL/BRAKE
17	57M7260	1	Elec. Connector Housing	EXTERNAL RAISE/LOWER SWITCH
17	57M7291	1	Electrical Connector Assy	-
18	57M8839	1	Elec. Connector Housing	LEFT REAR OUT FF
18	57M8129	1	Elec. Connector Terminal	-
19	57M7261	1	Elec. Connector Housing	HITCH & SCV 1
19	57M7296	1	Elec. Connector Accessory	-
20	57M7262	1	Elec. Connector Housing	SCV 2 & SCV 3
21	57M8203	1	Electrical Connector Assy	SCV 4 & SCV 5
22	57M7254	1	Elec. Connector Housing	BACKUP ALARM
22	57M7289	1	Elec.Connect Locking Device	-
23	57M8839	1	Elec. Connector Housing	RIGHT REAR IN FF
23	57M8129	1	Elec. Connector Terminal	-
24	57M8416	1	Elec. Connector Housing	RIGHT TAIL/BRAKE
24	57M7469	1	Electrical Connector Assy	-
25	57M8839	1	Elec. Connector Housing	RIGHT REAR OUT FF
25	57M8129	1	Elec. Connector Terminal	-
26	-	1	Part 43	SECONDARY BRAKE PRESSURE, (USE WITH RE227797)
26	57M8624	1	Elec.Connect Locking Device	-
26	57M8625	1	Elec. Connector Housing	(USE WITH RE291359)
27	57M8556	1	Elec. Connector Housing	SECONDARY BRAKE PROPORTIONAL, (USE WITH RE227797)
27	57M8924	1	Elec. Connector Housing	(USE WITH RE291359)
27	57M8633	1	Elec. Connector Accessory	(USE WITH RE291359)
28	RE12363	1	Electrical Connector Assy	IMPLEMENT SWITCH
29	57M8813	1	Elec. Connector Housing	LICENSE PLATE
30	57M8815	1	Elec. Connector Housing	FLOOD

Chassis Wiring Harness Connectors (3/3) (EV) ( - 012999)

Нет текстового описания
