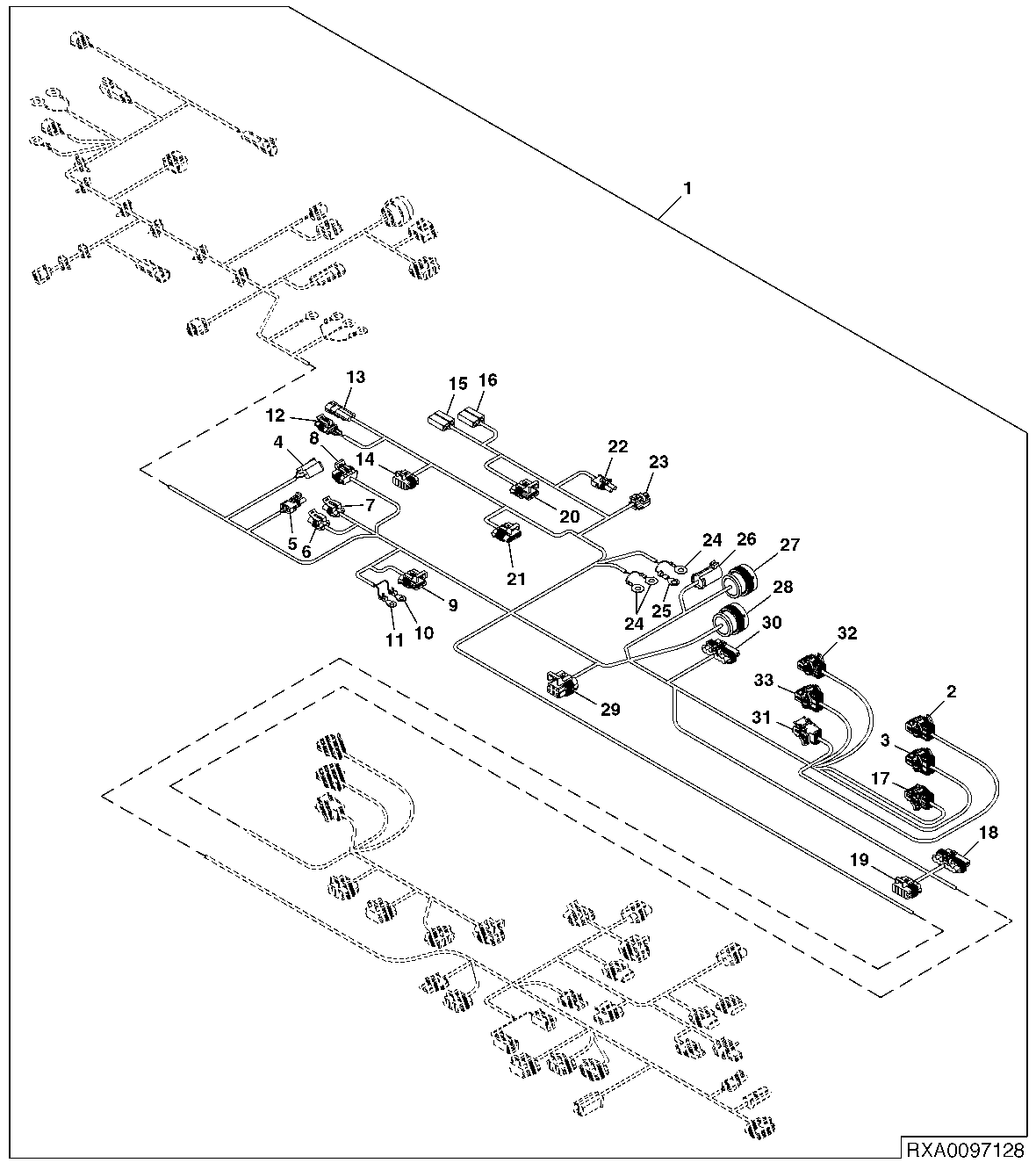

CHASSIS WIRING HARNESS CONNECTORS (2/3) (EXPORT) (NON-CERTIFIED)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE291362	1	Chassis Wiring Harness	-
1	RE307562	1	Chassis Wiring Harness	-
1	RE277486	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J1)
3	57M8527	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J2)
4	57M8812	1	Elec. Connector Housing	ETHER
5	RE12364	1	Electrical Connector Assy	LEFT EXTERNAL LIGHT
6	57M7254	1	Elec. Connector Housing	FAN SPEED INCREASE
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7254	1	Elec. Connector Housing	SPEED DECREASE
7	57M7289	1	Elec.Connect Locking Device	-
8	57M7262	1	Elec. Connector Housing	RADAR SENSOR
9	57M7290	1	Elec. Connector Accessory	-
9	57M7255	1	Elec. Connector Housing	DIAGNOSTIC PRESSURE
10	57M8901	1	Elec. Connector Terminal	GROUND 1
11	57M8901	1	Elec. Connector Terminal	GROUND 2
12	57M8625	1	Elec. Connector Housing	OIL PRESSURE
12	57M8624	1	Elec.Connect Locking Device	-
13	57M7985	1	Electrical Connector Assy	HYDRAULIC FILTER SWITCH
13	57M7289	1	Elec.Connect Locking Device	-
13	57M8910	1	Clip	-
14	57M7262	1	Elec. Connector Housing	FRONT AXLE
15	R77476	1	Electrical Connector Assy	FRONT WASHER PUMP
16	R77476	1	Electrical Connector Assy	REAR WASHER PUMP
17	57M8520	1	Elec. Connector Housing	FLEX HYDRAULIC CONTROL (J3)
18	57M9406	1	Elec. Connector Accessory	SS2
18	57M9407	1	Electrical Conductor	-
18	57M8326	1	Electrical Connector Assy	-
19	57M7262	1	Elec. Connector Housing	OPTIONAL CONNECTOR
20	57M8625	1	Elec. Connector Housing	AIR FLOW REST
21	57M7840	1	Elec. Connector Housing	STEERING VALVE
22	RE12363	1	Electrical Connector Assy	RIGHT EXTERNAL LIGHT
23	57M7254	1	Elec. Connector Housing	FUEL LEVEL
23	57M7289	1	Elec.Connect Locking Device	-
24	57M8924	3	Elec. Connector Housing	-
25	57M9591	1	Elec. Connector Terminal	-
26	57M7539	1	Elec. Connector Housing	CAB 3
26	57M7540	1	Elec. Connector Terminal	-
27	57M8795	1	Elec. Connector Housing	CAB 1
27	57M9227	1	Elec. Connector Accessory	-
28	57M8792	1	Elec. Connector Housing	CAB 2
28	57M9227	1	Elec. Connector Accessory	-
29	57M7260	1	Elec. Connector Housing	PTO
29	57M7291	1	Electrical Connector Assy	-
30	57M9406	1	Elec. Connector Accessory	SS1
30	57M8326	1	Electrical Connector Assy	-
30	57M9407	1	Electrical Conductor	-
31	57M8523	1	Elec. Connector Housing	VEHICLE LOAD CENTER (J3)
32	57M8522	1	Elec. Connector Housing	VEHICLE LOAD CENTER (J1)
33	57M8527	1	Elec. Connector Housing	VEHICLE LOAD CENTER (J2)

CHASSIS WIRING HARNESS CONNECTORS (2/3) (EXPORT) (NON-CERTIFIED)
