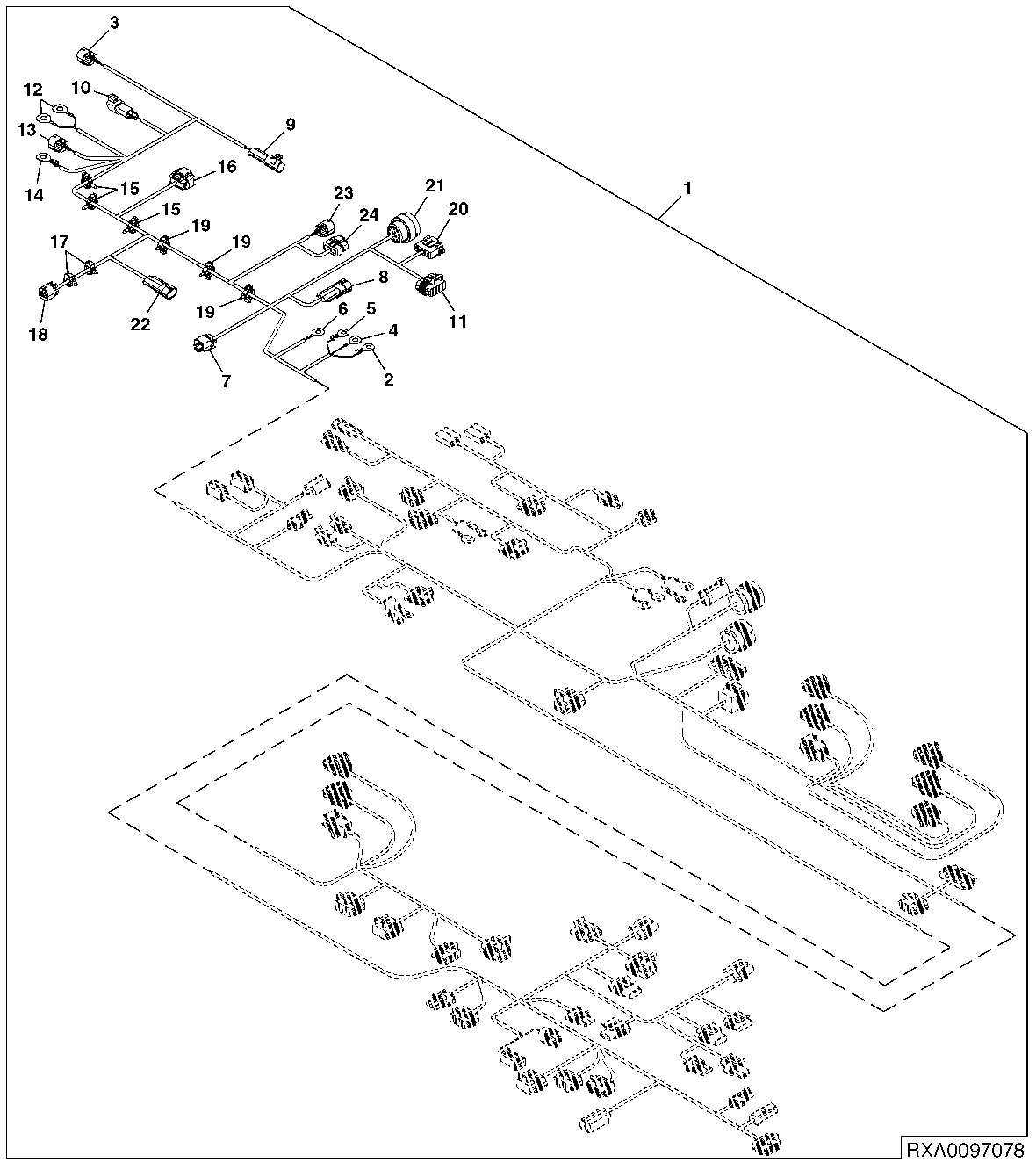

CHASSIS WIRING HARNESS CONNECTORS (1/3) (EV) (NON-CERTIFIED)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE291363	1	Chassis Wiring Harness	-
1	RE277487	1	Chassis Wiring Harness	-
1	RE307563	1	Chassis Wiring Harness	-
2	57M8873	1	Elec. Connector Terminal	-
3	57M8601	1	Elec. Connector Housing	COOLANT
3	57M8633	1	Elec. Connector Accessory	-
4	57M8866	1	Elec. Connector Terminal	-
5	57M8873	1	Elec. Connector Terminal	-
6	-	1	Part 9	START MOTOR
7	57M8924	1	Elec. Connector Housing	HYDRAULIC OIL TEMPERATURE
8	57M7256	1	Elec. Connector Housing	HYDRAULIC OIL LEVEL
8	57M7289	1	Elec.Connect Locking Device	-
9	57M7293	1	Elec. Connector Housing	A/C COMP CLUTCH
9	57M7295	1	Elec.Connect Locking Device	-
10	57M8735	1	Elec. Connector Housing	MANIFOLD, (USE WITH RE277487)
11	57M7262	1	Elec. Connector Housing	HOOD 1
12	57M8868	2	Elec. Connector Terminal	(USE WITH RE291363)
12	57M8869	2	Elec. Connector Terminal	A/C CLUTCH GROUND, (USE WITH RE277487 AND RE307563)
13	57M8601	1	Elec. Connector Housing	FAN SPEED
13	57M8633	1	Elec. Connector Accessory	-
14	57M8873	1	Elec. Connector Terminal	ALTERNATOR
15	57M9206	3	Clip	-
16	57M8917	1	Elec. Connector Housing	PUMP PRESSURE SENSOR
16	57M9448	1	Elec.Connect Locking Device	-
17	-	2	Part 25	-
18	57M8633	1	Elec. Connector Accessory	-
18	57M8601	1	Elec. Connector Housing	ENGINE CRANK SENSOR
19	57M9190	2	Clip	-
20	57M7553	1	Elec. Connector Housing	HOOD 2
21	57M7746	1	Electrical Connector Assy	FUEL INJECTION
21	57M9657	1	Elec.Connect Locking Device	-
22	57M7256	1	Elec. Connector Housing	WATER IN FUEL
22	57M7289	1	Elec.Connect Locking Device	-
23	57M8601	1	Elec. Connector Housing	ENGINE CAM SENSOR
24	57M8552	1	Elec. Connector Housing	-

CHASSIS WIRING HARNESS CONNECTORS (1/3) (EV) (NON-CERTIFIED)
