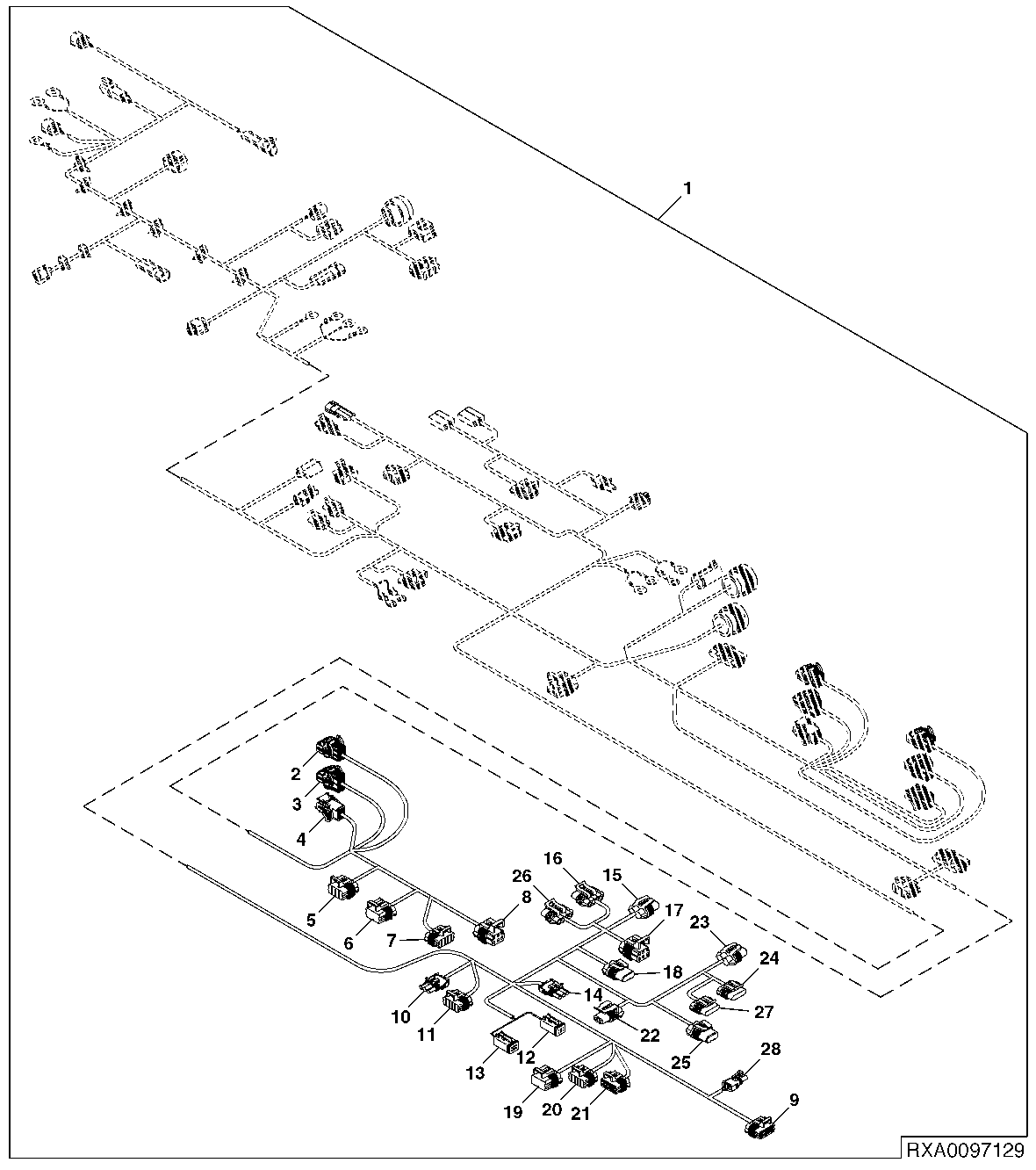

Chassis Wiring Harness Connector (Export) (Non-Certified) (3/3) ( - 012999)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE291362	1	Chassis Wiring Harness	-
1	RE277486	1	Chassis Wiring Harness	-
2	57M8519	1	Elec. Connector Housing	Engine Control Unit (J1)
3	57M8527	1	Elec. Connector Housing	Engine Control Unit (J2)
4	57M8523	1	Elec. Connector Housing	Engine Control Unit (J3)
5	57M7284	1	Elec. Connector Housing	SCV 5 and SCV 6
5	57M7296	1	Elec. Connector Accessory	-
6	57M7261	1	Elec. Connector Housing	AutoTrac™
6	57M7296	1	Elec. Connector Accessory	-
7	57M9377	1	Elec. Connector Housing	Transmission Connection
7	57M8035	1	Nut	-
7	57M9061	1	Elec.Connect Locking Device	-
8	57M7291	1	Electrical Connector Assy	-
8	RE207311	1	Electronic Control Unit	-
8	57M7260	1	Elec. Connector Housing	Cam Termination
9	-	1	Part 16	Trailer Outlet
10	RE12364	1	Electrical Connector Assy	Draft Sensor
11	57M7262	1	Elec. Connector Housing	Rear Axle
12	R201059	1	Housing	IMP Connector
12	R208787	1	Seal	-
12	57M8884	1	Elec. Connector Accessory	-
13	57M8015	1	Electrical Connector Assy	Greenstar Break Away
14	RE12364	1	Electrical Connector Assy	Rockshaft Pos
15	57M8129	1	Elec. Connector Terminal	-
15	57M8839	1	Elec. Connector Housing	Left Rear In FF
16	-	1	Part 26	Left Tail/Brake
16	57M9211	1	Elec.Connect Locking Device	-
17	57M7260	1	Elec. Connector Housing	External Raise/Lower Switch
17	57M7291	1	Electrical Connector Assy	-
18	57M8839	1	Elec. Connector Housing	Left Rear Out FF
18	57M8129	1	Elec. Connector Terminal	-
19	57M7261	1	Elec. Connector Housing	Hitch &amp; SCV 1
19	57M7296	1	Elec. Connector Accessory	-
20	57M7262	1	Elec. Connector Housing	SCV 2 and SCV 3
21	57M8203	1	Electrical Connector Assy	SCV 4 and SCV 5
22	57M7289	1	Elec.Connect Locking Device	-
22	57M7254	1	Elec. Connector Housing	Backup Alarm
23	57M8839	1	Elec. Connector Housing	Right Rear In FF
23	57M8129	1	Elec. Connector Terminal	-
24	-	1	Part 40	Right Tail/Brake
24	57M9211	1	Elec.Connect Locking Device	-
25	57M8839	1	Elec. Connector Housing	Right Rear Out FF
25	57M8129	1	Elec. Connector Terminal	-
26	-	1	Part 44	-
26	57M9211	1	Elec.Connect Locking Device	-
27	-	1	Part 46	-
27	57M9211	1	Elec.Connect Locking Device	-
28	RE12363	1	Electrical Connector Assy	Implement Switch

Chassis Wiring Harness Connector (Export) (Non-Certified) (3/3) ( - 012999)
