EXTRA HEAVY DUTY DRAWBAR SUPPORT KIT

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

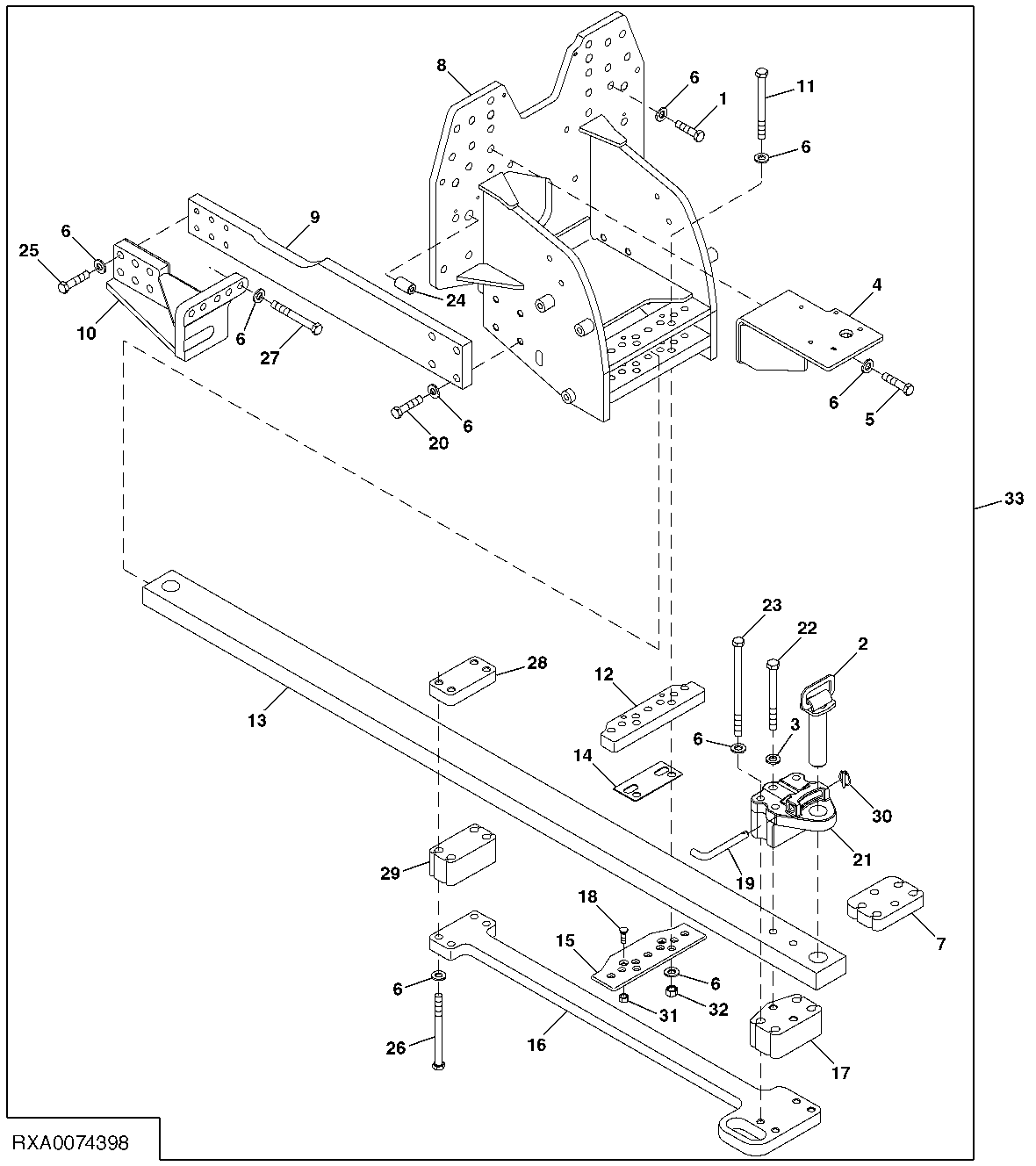

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8639	10	Cap Screw	(A) M20 X 70
2	RE199310	1	Pin	-
3	R52006	2	Washer	-
4	RE254175	1	Bracket	(A) (SUB FOR RE198258)
5	19M8147	3	Cap Screw	(A) M20 X 90
6	24M7242	56	Washer	(A) 21.400 X 42 X 5 mm
7	R214791	1	Plate	(A)
8	RE198864	1	Support	(A) HS=10.9
9	R198295	2	Hitch Plate	(A) HS=10.9
10	RE171370	1	Support	(A) RH
10	RE171368	1	Support	(A) LH
11	19M7778	2	Cap Screw	(A) M20 X 220
12	R228021	1	Plate	(A) HS=10.9
13	R156098	1	Drawbar	-
14	R165925	1	Strap	(A) .9 MM
14	R166066	1	Strap	(A) 2.6MM
15	R160696	1	Support	(SUB R229870)
16	R228016	1	Brace	(A)
17	R228533	1	Spacer	(A)
18	09H1588	2	Bolt	(A) 1/2" X 1-3/4"
19	R215484	1	Pin Fastener	(SUB R283033)
20	19M7892	8	Cap Screw	(A) M20 X 80
21	R196915	1	Strap	-
22	R156616	2	Cap Screw	-
22	R111434	2	Cap Screw	(A)
23	19M8494	4	Cap Screw	(A) M20 X 320
24	R161755	2	Pin	-
25	19M8147	12	Cap Screw	(A) M20 X 90
26	19M7779	4	Cap Screw	M20 X 240
27	19M8026	10	Cap Screw	(A) M20 X 170
28	R228020	1	Plate	(A)
29	R228017	1	Spacer	(A)
30	AR62151	1	Quick Lock Pin	-
31	14H1040	2	Nut	(A) 1/2"
32	14M7277	2	Nut	(A) M20
33	RE228014	1	Field Installation Kit	(INCLUDES PARTS MARKED (A)) (NLA) (SUB COMPONENTS)
..	RE228013	1	Drawbar	INC KEYS 6, 7, 11, 12, 14, 16, 17, 22, 23, 25, 28 & 29 (NLA) (SUB COMPONENTS)

EXTRA HEAVY DUTY DRAWBAR SUPPORT KIT
