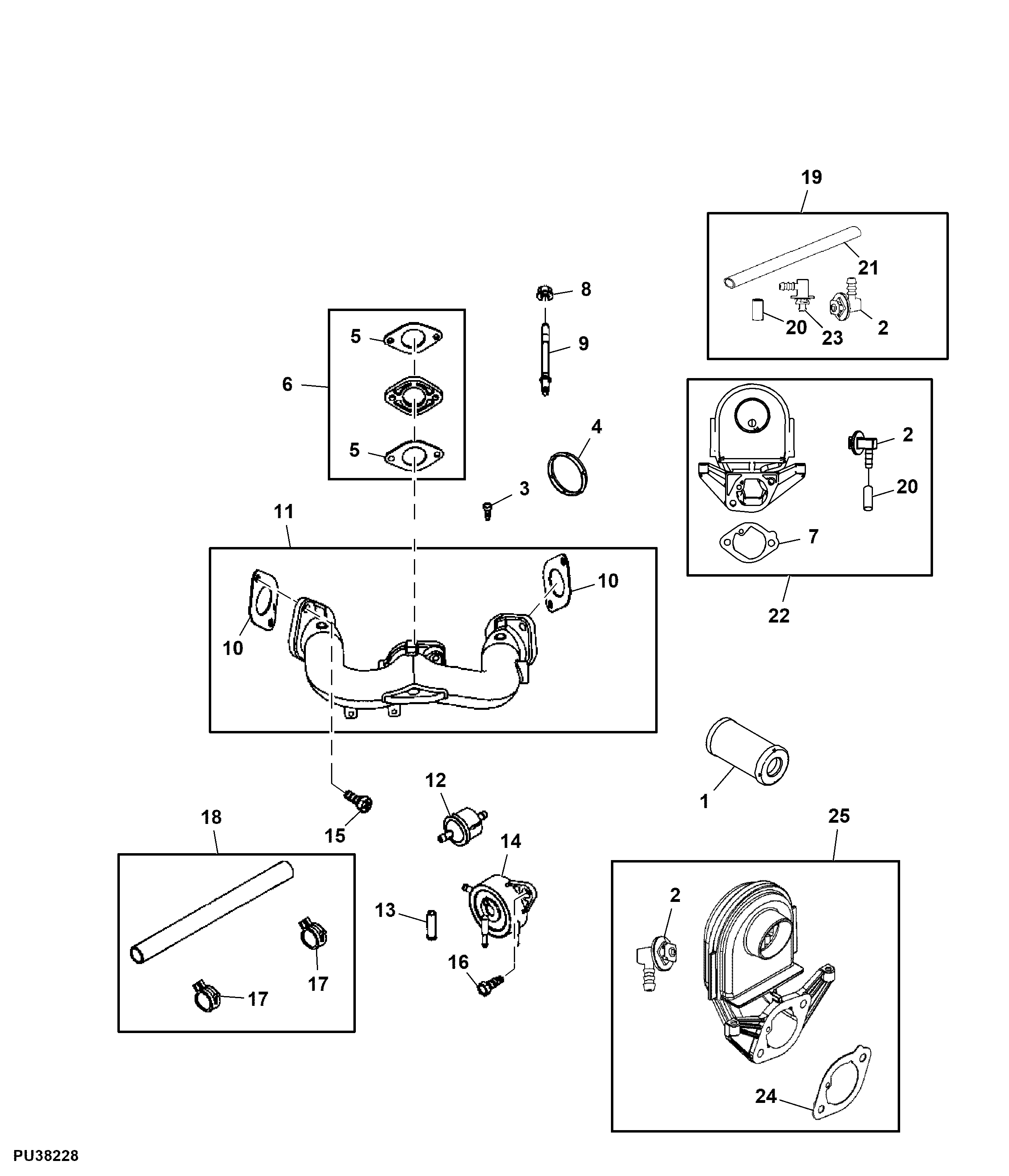

Air Filter, Fuel Pump and Intake Manifold

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	MIU14395	1	Air Filter	A/C Cartridge SUB FOR MIU13963
2	MIU13994	3	Hose Fitting	-
3	MIU10610	2	Screw	Intake Manifold
4	MIU14392	2	Seal	Intake Manifold
5	M153271	3	Gasket	Intake, Carburetor
6	M153281	1	Gasket	-
7	M153269	2	Gasket	Intake
8	LG690958	2	Nut	-
9	LG690951	2	Stud	Carburetor
10	LG690949	2	Gasket	Intake USE WITH M153268
10	MIU14394	2	Gasket	Intake USE WITH MIA13042
11	M153268	1	Intake Manifold	INCLUDES M153271; USE WITH MIA12851, MIA13103 OR AUC10153
11	MIA13042	1	Intake Manifold	INCLUDES (2) MIU14392; USE WITH AUC14308 OR AUC13948
12	AM116304	1	Fuel Filter	-
13	MIU14398	2	Hose	SUB FOR MIU12502
14	UC18349	1	Fuel Pump	SUB FOR LG808656 OR UC18908
15	M153270	4	Screw	-
16	MIU12508	2	Screw	-
17	UC19781	2	Hose Clamp	USE WITH AUC14308, SUB FOR APPL MIU11187
18	MIA10629	1	Fuel Line	Fuel Filter to Fuel Pump
19	MIA11997	1	Hose	-
20	MIU13117	2	Cap	Connector SUB FOR MIU13112
21	M88201	1	Hose	-
22	MIA12522	1	Pipe Elbow	Air Intake USE WITH MIA12851, MIA12460, MIA12610, MIA13103 OR AUC10153
23	UC12105	1	Hose Fitting	-
24	MIU14393	1	Gasket	Intake
25	MIA13048	1	Pipe Elbow	Air Intake USE WITH AUC14308 OR AUC13948

Air Filter, Fuel Pump and Intake Manifold
