Открытый узел

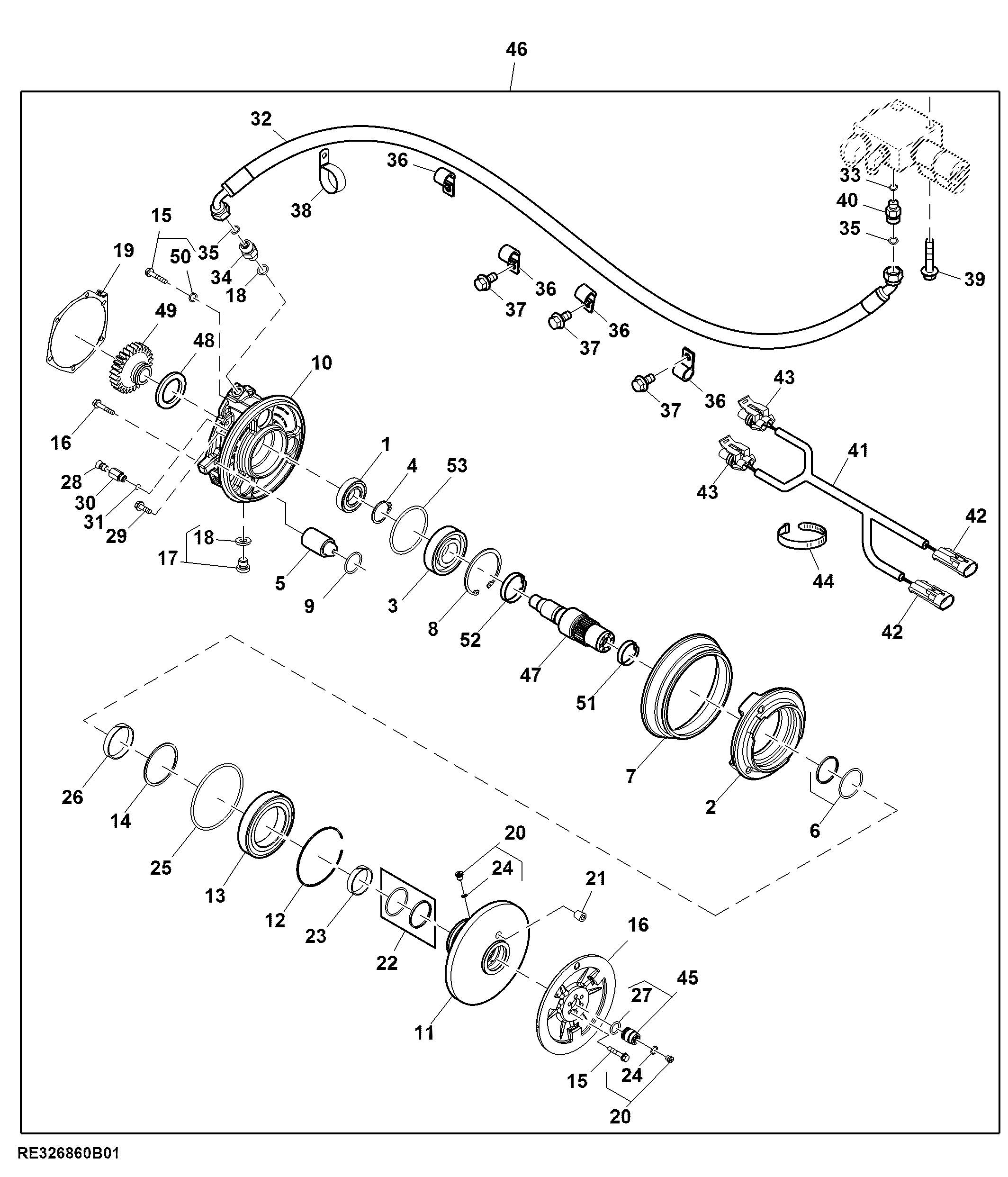

Fan Kit, Generation II, Variable Speed Fan Drive

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE346081	1	Ball Bearing	SUB FOR RE308209
2	R345108	1	Shift Collar	SUB FOR APPL R277447
3	RE346079	1	Ball Bearing	SUB FOR RE308210 OR RE241243
4	40M7180	1	Snap Ring	USE WITH R335470
5	R326617	3	Piston	SUB FOR R314129 OR R267374
6	RE300803	1	Seal	-
7	R551372	1	Boot	SUB FOR R267263
8	40M7285	1	Snap Ring	-
9	R563220	3	O-Ring	SUB FOR APPL R268046; USE WITH R308405
9	R562981	3	Seal	USE WITH R563068
10	R308405	1	Housing	ORDER R563068; ALSO ORDER (3) R562981
10	R563068	1	Housing	ORDER R564447; ALSO ORDER R564667
10	R564447	1	Housing	-
11	R302314	1	Half Sheave	ORDER RE558427
12	R318428	1	Snap Ring	SUB FOR R267880
13	RE346082	1	Ball Bearing	SUB FOR RE267884 OR RE308211
14	A1402R	1	Snap Ring	-
15	19M10012	8	Screw	M8 X 45, USE WITH R335470
15	R531358	1	Cap Screw	USE WITH R345105
16	R306157	1	Half Sheave	-
17	64M5003	2	Drain Plug	SUB FOR RE46684
18	51M7041	2	O-Ring	11.300 X 2.200 mm
19	R272886	1	Gasket	-
20	RE336324	3	Drain Plug	SUB FOR 15M7075
21	15H560	1	Pipe Plug	1/16", USE WITH R302314
22	RE300797	1	Seal	-
23	R302459	1	Wear Ring	USE WITH R302314
24	51M7039	3	O-Ring	8.100 X 1.600 mm
25	R279025	1	O-Ring	-
26	R302460	1	Wear Ring	USE WITH R302314
27	R495R	1	O-Ring	-
28	RE62981	1	Pressure Relief Valve	-
29	19M7867	2	Screw	M8 X 25
30	H93915	1	Adapter Fitting	-
31	R26286	1	O-Ring	-
32	RE310905	1	Hydraulic Hose	SUB FOR RE286847
33	51M7040	1	O-Ring	9.300 X 2.200 mm
34	38H5002	1	Adapter Fitting	-
35	T77613	2	O-Ring	-
36	R46414	4	Clamp	-
37	19M7784	3	Screw	M10 X 20
38	R89288	2	Clamp	-
39	19M7806	2	Screw	M10 X 50
40	38H5008	1	Adapter Fitting	-
41	RE293624	1	Wiring Harness	-
42	57M7256	2	Elec. Connector Housing	-
43	57M7254	2	Elec. Connector Housing	-
44	R105388	4	Tie Band	-
45	R325840	1	Fitting Plug	-
46	RE326860	1	Fan Kit	ORDER RE589189; ALSO ORDER RE587430; SUB FOR RE295501 OR RE313811 OR RE320700 OR RE322877;
47	R335470	1	Shaft	ORDER R345105; ALSO ORDER R537750, R341868, 24M7440, R241167, RE346079, RE346081, N307886, R306157, 40M7285, RE308406, HXE38349, R495R, AE38448 AND (8) R531358
48	RE308406	1	Seal	-
49	R308404	1	Gear	Z=28, ORDER R537750; ALSO ORDER R345105, R341868, 24M7440, R241167, RE346079, RE346081, N307886, R306157, 40M7285, RE308406, HXE38349, R495R, AE38448 AND (8) R531358
50	N307886	1	O-Ring	-
51	R335491	1	Wear Ring	-
52	R335492	1	Wear Ring	-
53	R564667	1	O-Ring	USE WITH R564447

Fan Kit, Generation II, Variable Speed Fan Drive

Нет текстового описания
