20 Engine 6090HRW24-RE528377

Нет текстового описания

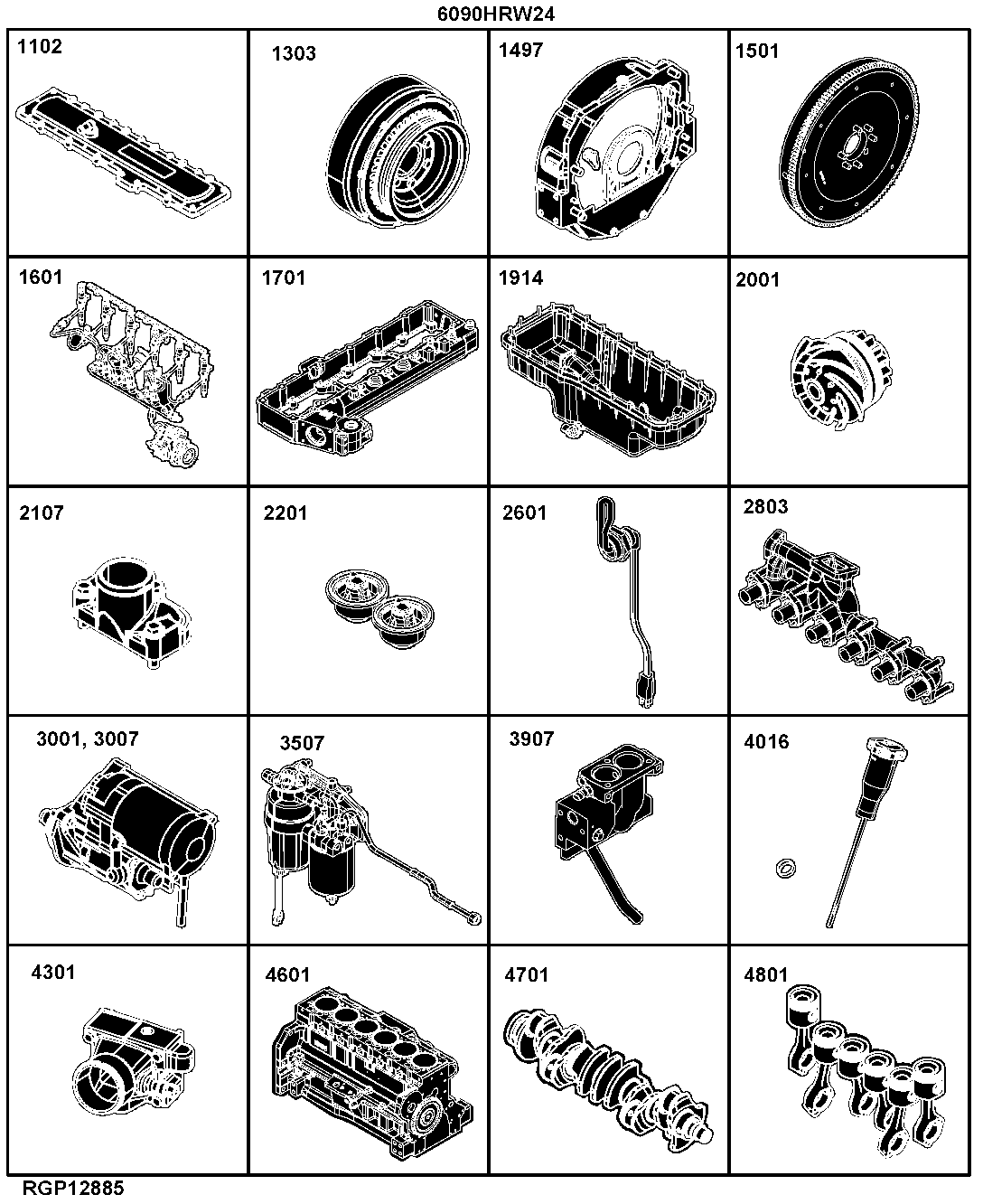

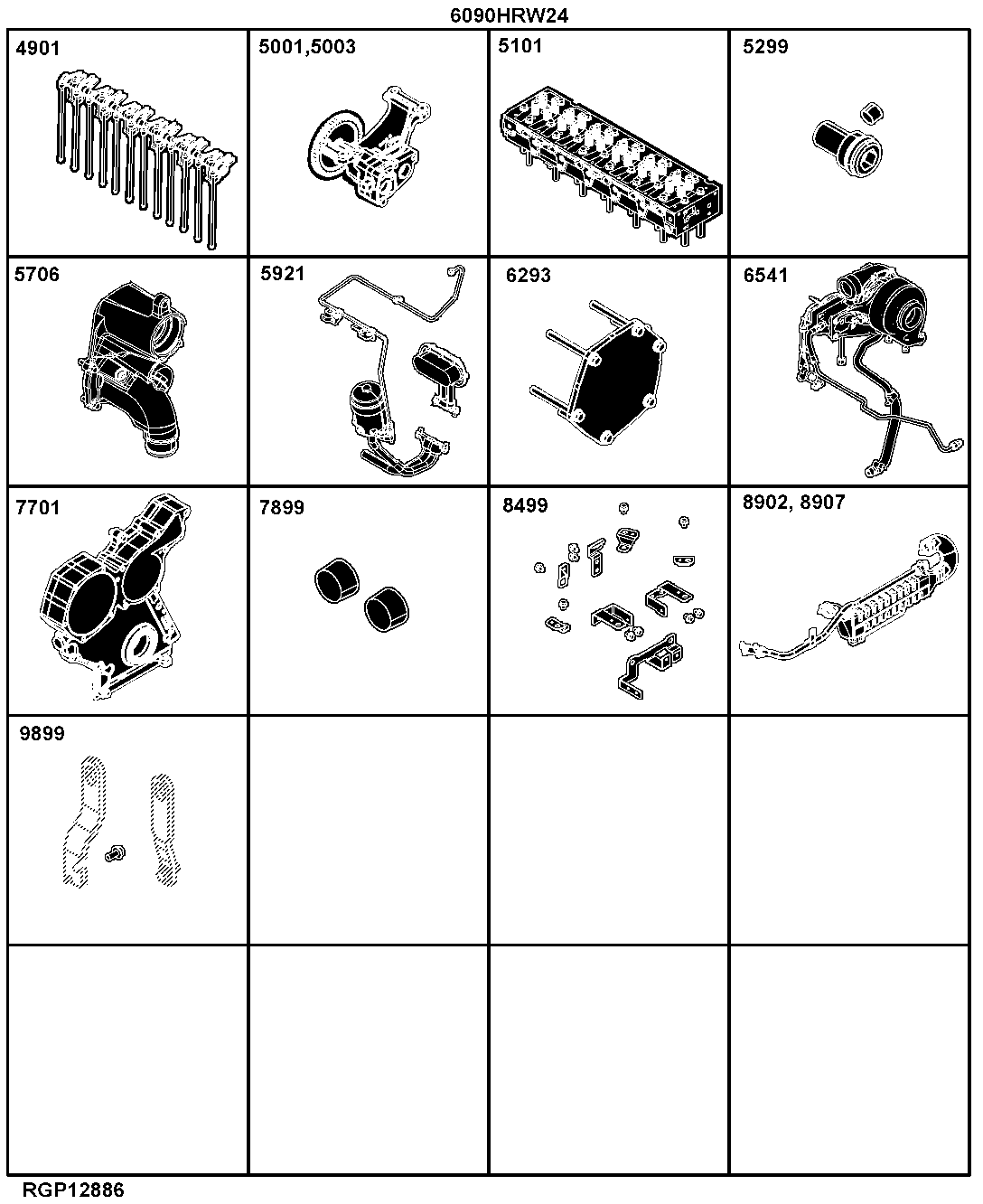

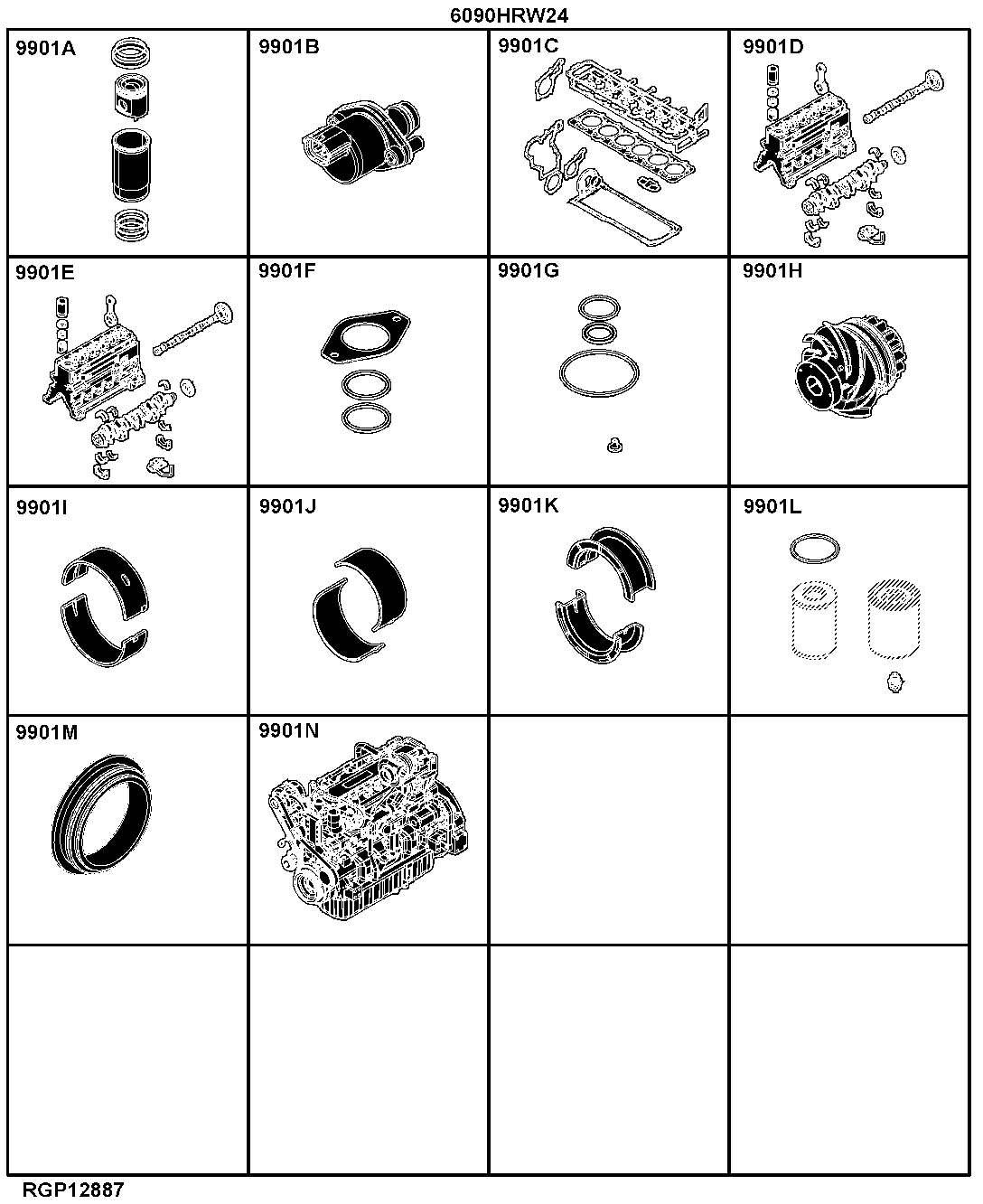

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	9901 Engine Gasket Kit (1/3)	-
-	-	1	5921 Engine Oil Cooler and Oil Filter	-
-	-	1	6293 Alternator Mounting	-
-	-	1	6541 Turbocharger / Lines	-
-	-	1	7701 Timing Gear Cover	-
-	-	1	7899 Air Compressor Mounting Plug	-
-	-	1	8499 Engine Wiring Harness Brackets	-
-	-	1	8902 Exhaust Gas Recirculation	-
-	-	1	8907 Exhaust Gas Recirculation	-
-	-	1	9901 Complete Block Assembly	-
-	-	1	9901 Connecting Rod Bearing Kit	-
-	-	1	9901 Crankshaft Thrust Bearing Kit	-
-	-	1	9901 Engine Gasket Kit	-
-	-	1	5706 Water Pump Cover	-
-	-	1	9901 Engine Gasket Kit (2/3)	-
-	-	1	9901 Engine Gasket Kit (3/3)	-
-	-	1	9901 Engine Overhaul Kit	-
-	-	1	9901 Engine Short Block Assembly	-
-	-	1	9901 Fuel Filter Element Service Kit	-
-	-	1	9901 Gasket Kit, EGR Valve	-
-	-	1	9901 Main Bearing Kit	-
-	-	1	9901 Piston Liner Kit	-
-	-	1	9901 Primary Fuel Filter Seal Kit	-
-	-	1	9901 Replacement Engine	-
-	-	1	9901 Suction Control Valve	-
-	-	1	9901 Water Pump, Replacement	-
-	-	1	3507 Fuel Filter	-
-	-	1	1303 Crankshaft Pulley and Damper	-
-	-	1	1497 Crankshaft Oil Seal / Housing	-
-	-	1	1501 Flywheel	-
-	-	1	1601 Fuel Injection System	-
-	-	1	1701 Air Intake Manifold	-
-	-	1	1914 Oil Pan	-
-	-	1	2001 Water Pump	-
-	-	1	2107 Thermostat Cover	-
-	-	1	2201 Engine Thermostat	-
-	-	1	2601 Engine Coolant Heater	-
-	-	1	2803 Exhaust Manifold	-
-	-	1	3001 Starter Motor	-
-	-	1	1102 Valve Cover	-
-	-	1	3907 Thermostat Housing, Thermostat and Cover	-
-	-	1	4016 Engine Oil Dipstick	-
-	-	1	4301 Air Intake	-
-	-	1	4601 Cylinder Block	-
-	-	1	4701 Crankshaft and Bearings	-
-	-	1	4801 Connecting Rods and Pistons	-
-	-	1	4901 Valve Actuating Mechanism	-
-	-	1	5001 Engine Oil Pump	-
-	-	1	5003 Engine Oil Pump	-
-	-	1	5101 Cylinder Head with Valves	-
-	-	1	5299 Cylinder Block Fittings	-
