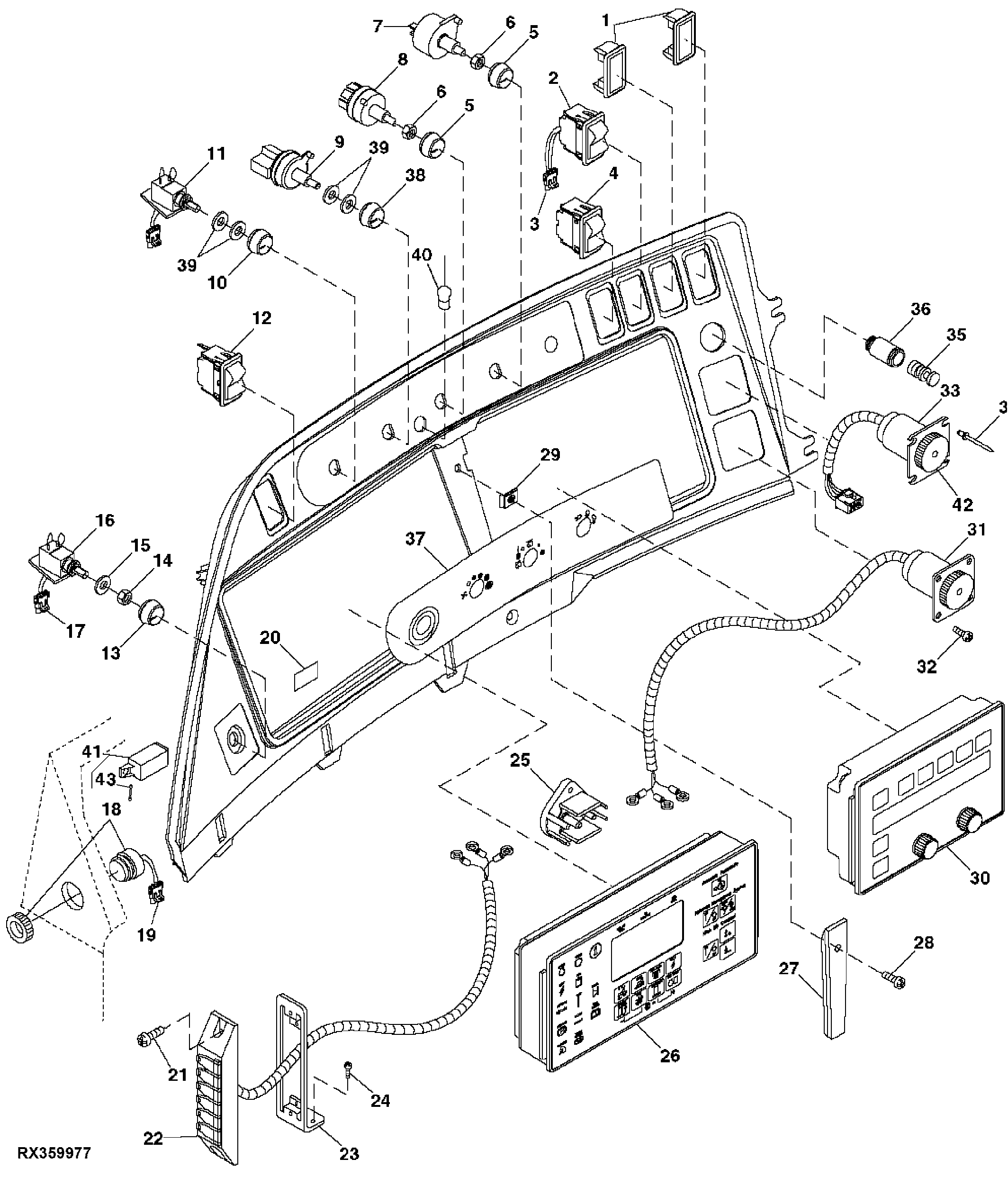

Console Controls And Switches - (Continued)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
12	57M10889	1	Elec. Connector Terminal	-
21	37M7090	2	Screw	M6 X 16
22	RE68495	1	Strip	-
23	R128879	1	Brace	-
24	37M7089	3	Screw	M6 X 12
25	RE186986	1	Junction Block	(SUB FOR R111931)
26	RE185862	1	Vehicle Monitor	(SUB FOR RE60614, RE151628, RE168634, RE172242, RE174987 OR RE185860) (INCLUDES (22) R107890) (ICU)
27	R121810	1	Clamp	-
28	37H215	2	Screw	-
29	R64822	2	Nut	-
30	RE64583	1	Digital Display	(SUP)
31	RE51091	1	Wiring Harness	(USE WITH RE37651)
31	RE241869	1	Wiring Harness	(EUROPEAN VERSION)
32	R108166	3	Rivet	-
33	R165983	1	Nut	-
33	RE217864	1	Cap	-
33	RE163290	1	Socket Outlet	(SERVICE ADVISOR)
34	R108166	4	Rivet	-
35	AR60937	1	Electrical Lighter	-
35	R131671	1	Plug	W/O AR60937
36	AR56766	1	Housing	-
36	51M7102	1	O-Ring	-
37	R126009	1	Label	(NORTH AMERICAN VERSION)
37	R175735	1	Label	(NORTH AMERICAN VERSION) (AUTOMATIC TEMPERATURE CONTROL) (SUB FOR R162741 OR R170454)
37	R126010	1	Label	(EUROPEAN VERSION)
38	AL76568	1	Knob	-
39	24M7117	2	Washer	(AUTOMATIC TEMPERATURE CONTROL) 4.300 X 9 X 0.800 mm
40	AH108380	1	Bulb	(AUTOMATIC TEMPERATURE CONTROL)
41	RE591841	1	Wiring Harness	(AUTOMATIC TEMPERATURE CONTROL) SUB FOR RE152796
42	RE217864	1	Cap	-
43	57M10889	4	Elec. Connector Terminal	USE WITH RE591841

Console Controls And Switches - (Continued)
