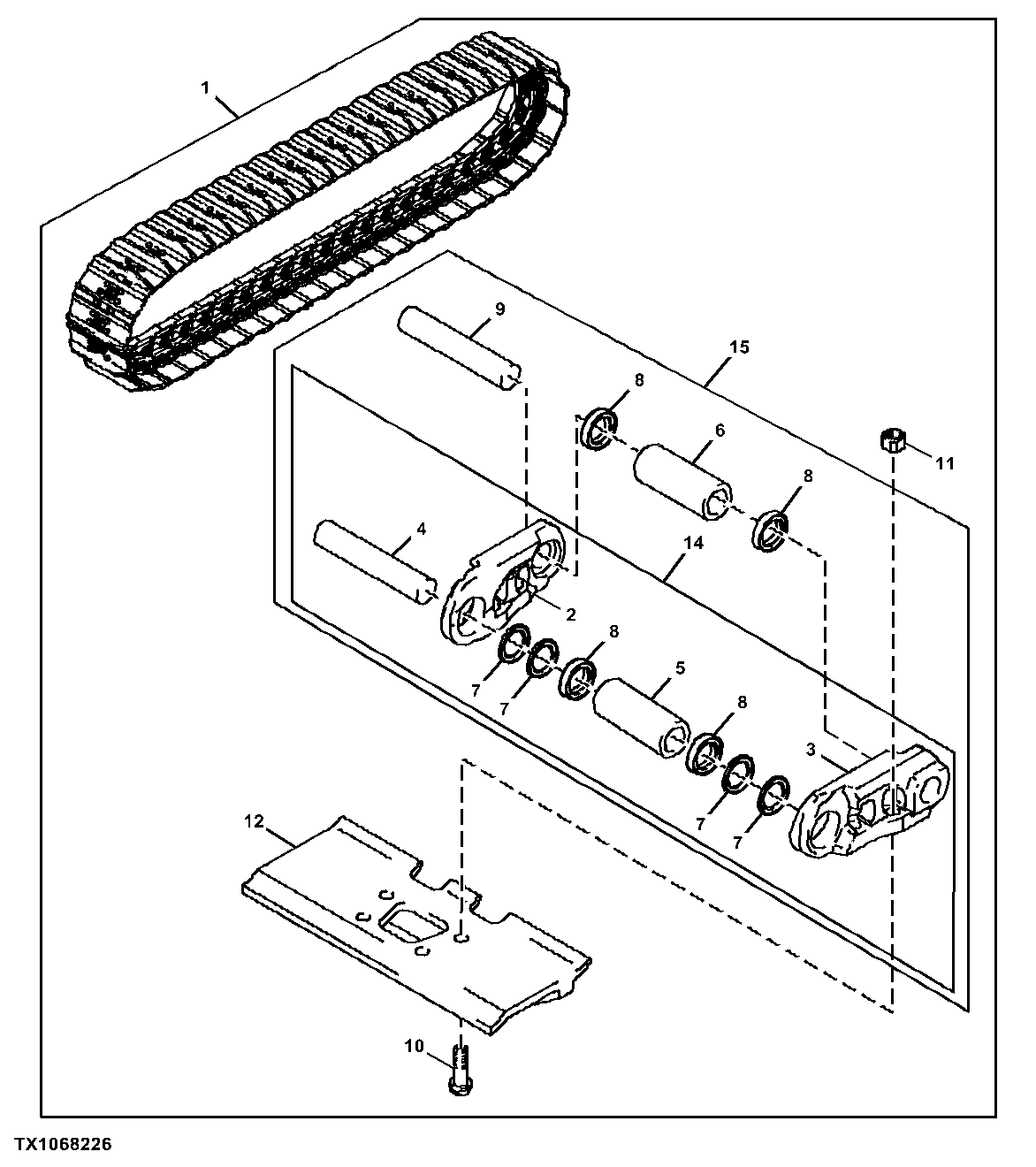

Track Assembly, Extreme Duty U7, 60.9 cm (24 in), Single Grouser

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F124507	2	Track Assembly With Shoes	24 in. Double Grouser (When Replacing Both Tracks Order 2)
1	F124508	2	Track Assembly With Shoes	28 in. Single Grouser (When Replacing Both Tracks Order 2)
1	F124506	2	Track Assembly With Shoes	24 in. Single Grouser (When Replacing Both Tracks Order 2)
2	FFSB112428	47	Link Chain	Right Half
3	FFSB112429	47	Chain Link	Left Half
4	FFSB112432	46	Pin Fastener	-
5	FFSB112430	46	Bushing	-
6	FFSB112433	1	Master Track Bushing	-
7	FFSB112431	92	Seal	-
8	FFSB112434	2	Spacer	-
9	FFSB112435	1	Master Track Pin	-
10	FFSB108850	188	Track Bolt	-
11	FFSB108847	188	Nut	-
12	F437475	47	Shoe	24 in. Single Grouser
12	F437476	47	Shoe	24 in. Double Grouser
12	F437477	47	Shoe	28 in. Single Grouser
14	F437488	1	Track Pin With Bushing	Include 47 Chain Link
15	AT374400	1	Track Chain W/O Shoes	Complete Chain (When Replacing Both Tracks Order 2)

Track Assembly, Extreme Duty U7, 60.9 cm (24 in), Single Grouser
