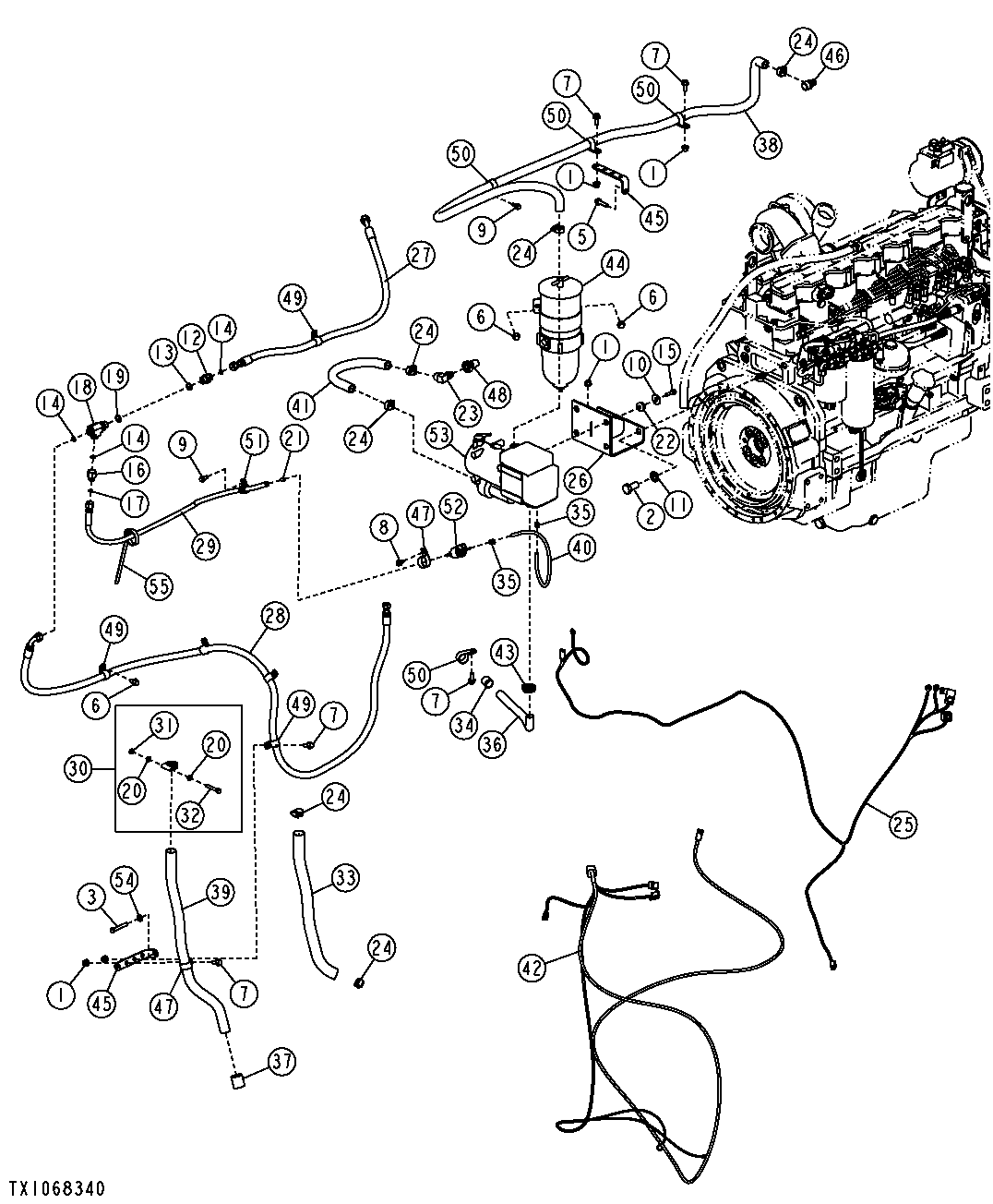

COOLANT/FUEL HEATER HOSES AND HARDWARE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7518	5	Flange Nut	M10
2	19H2716	2	Cap Screw	3/4" X 1-1/2"
3	19H3031	1	Cap Screw	3/8" X 2-1/2"
4	19H3704	1	Cap Screw	3/8" X 2-1/4"
5	19H3963	1	Screw	3/8" X 1-1/2"
6	19M7783	3	Screw	M10 X 16
7	19M7785	5	Screw	M10 X 25
8	19M7865	2	Screw	M8 X 16
9	19M7867	4	Screw	M8 X 25
10	24M7024	4	Washer	9 X 28 X 3 mm
11	24M7396	2	Washer	21 X 34 X 3 mm
12	38H1174	1	Adapter Fitting	-
13	R26906	1	O-Ring	-
14	T77857	3	O-Ring	-
15	19M7868	4	Screw	M8 X 30
16	38H1481	1	Reducer	-
17	T77613	1	O-Ring	-
18	38H1631	1	Adapter Fitting	-
19	R26906	1	O-Ring	-
20	24M7433	2	Washer	10.500 X 20 X 2 mm
21	AR48236	1	Clamp	-
22	AT116162	4	Isolator	-
23	AT221440	1	Fitting	-
24	AT301917	6	Hose Clamp	-
25	AT343054	1	Wiring Harness	-
26	AT362509	1	Bracket	-
27	AT369316	1	Hydraulic Hose	(SUB FOR AT362539, THIS APPLICATION)
28	AT369317	1	Hydraulic Hose	(SUB FOR AT362540, THIS APPLICATION)
29	AT369383	1	Hydraulic Hose	(SUB FOR AT362541, THIS APPLICATION)
30	AT325248	1	Clamp	-
31	14M7273	1	Nut	M8
32	19M7981	1	Cap Screw	M8 X 55
33	T229769	1	Hose Guard	-
34	T257666	1	Cap	-
35	AT353138	2	Clamp	-
36	T216203	1	Hose	-
37	T216847	1	Cap	-
38	T228699	1	Hose	-
39	T237704	1	Exhaust Pipe	-
40	T250137	1	Hose	-
41	T250138	1	Radiator Hose	-
42	AT365311	1	Harness Kit	-
43	AT79195	1	Clamp	-
44	F065606	1	Fuel Filter	-
45	F391024	2	Bracket	-
46	H33801	1	Hose Fitting	-
47	R112693	2	Clamp	-
48	T205640	1	Fitting	-
49	T206940	5	Clamp	-
50	T26955	4	Clamp	-
51	T76252	1	Clamp	-
52	AT328573	1	Fuel Pump	-
53	AT328574	1	Coolant Heater	-
54	24M7433	1	Washer	10.500 X 20 X 2 mm
55	N189220	1	Tie Band	-

COOLANT/FUEL HEATER HOSES AND HARDWARE
