Input Shafts And Gears, Sync Shuttle Transmission

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	3	Cap Screw	M12 X 30
2	YZ90883	1	Bearing Cap	1ST/ 2ND STAGE SHAFT
3	RE218967	1	Tapered Roller Bearing	-
4	P50635	1	O-Ring	-
5	YZ90988	1	Seal	-
6	22M7079	2	Set Screw	M6 X 6
7	RE235640	1	Shim Kit	SHIM PACK, 2ND STAGE BEARING
8	-	1	Part 8	ORDER YZ90882
9	-	1	Part 9	ORDER YZ90882
10	-	1	Part 10	ORDER YZ90882
11	-	1	Part 11	ORDER YZ90882
12	-	1	Part 12	ORDER YZ90882
13	-	1	Part 13	ORDER YZ90882
14	-	1	Part 14	ORDER YZ90882
15	YZ90882	1	Snap Ring	SNAP RING PACK, INPUT SHAFT
16	RE218968	1	Tapered Roller Bearing	-
17	40M7268	2	Snap Ring	-
18	-	3	Part 18	ORDER YZ91175
19	-	3	Part 19	ORDER YZ91175
20	-	3	Part 20	ORDER YZ91175
21	-	3	Part 21	ORDER YZ91175
22	YZ91175	3	Thrust Washer	THRUST WASHER PACK
23	YZ91161	1	Helical Gear	Z=25, LH, 1ST STG
24	-	2	Part 24	ORDER YZ91174
25	-	2	Part 25	ORDER YZ91174
26	-	2	Part 26	ORDER YZ91174
27	-	2	Part 27	ORDER YZ91174
28	YZ91174	2	Snap Ring	-
29	YZ91519	2	Synchronizer	-
30	YZ91162	1	Helical Gear	Z=30, LH, 1ST STG
31	YZ91348	1	Shaft	-
32	YZ91163	1	Helical Gear	Z=33, LH, 1ST STG
33	R240670	1	Sleeve	-
34	-	1	Part 34	ORDER YZ91171
35	-	1	Part 35	ORDER YZ91171
36	-	1	Part 36	ORDER YZ91171
37	-	1	Part 37	ORDER YZ91171
38	YZ91171	1	Snap Ring	SNAP RING PACK
39	YZ91164	1	Helical Gear	-

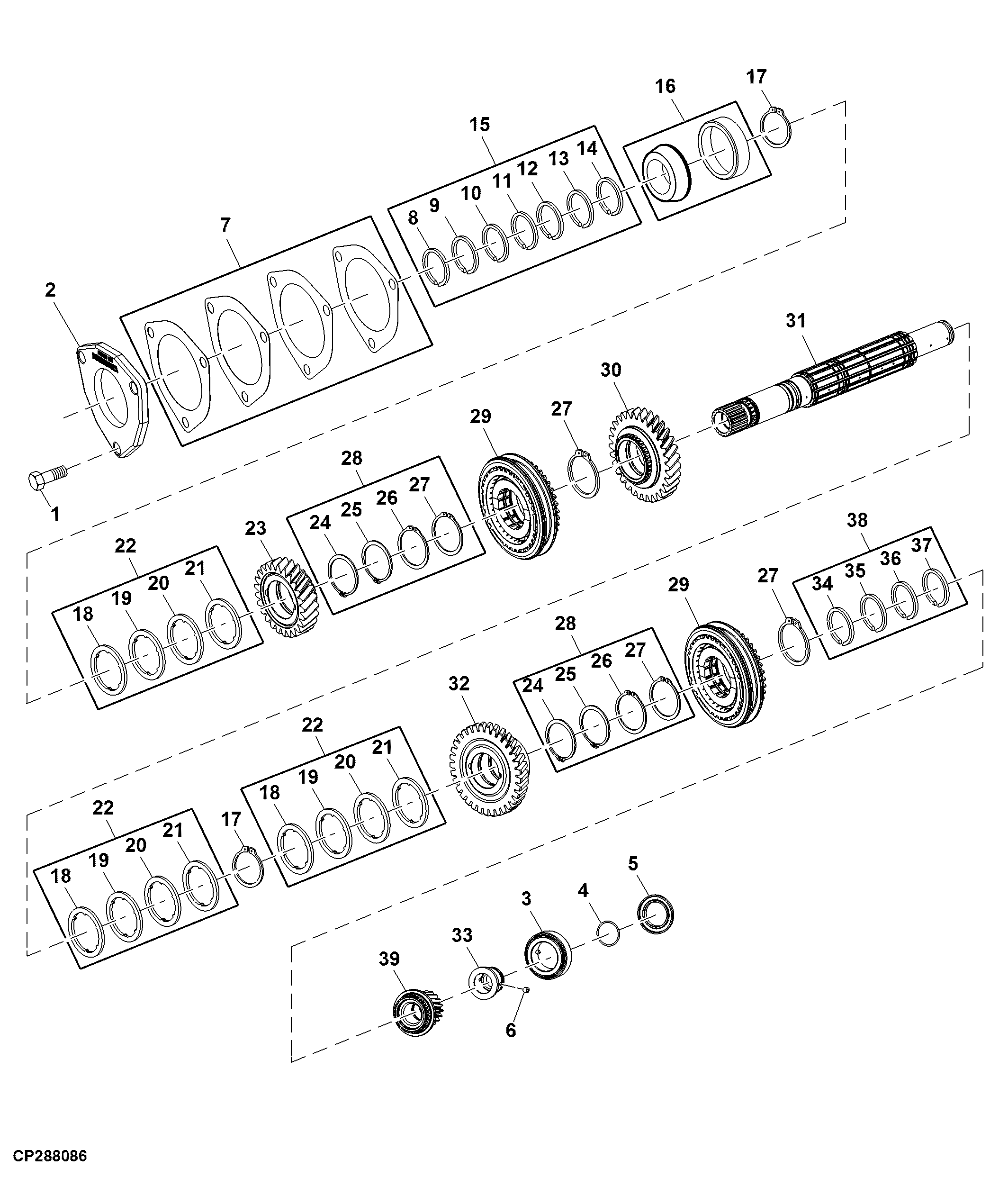

Input Shafts And Gears, Sync Shuttle Transmission

Нет текстового описания
