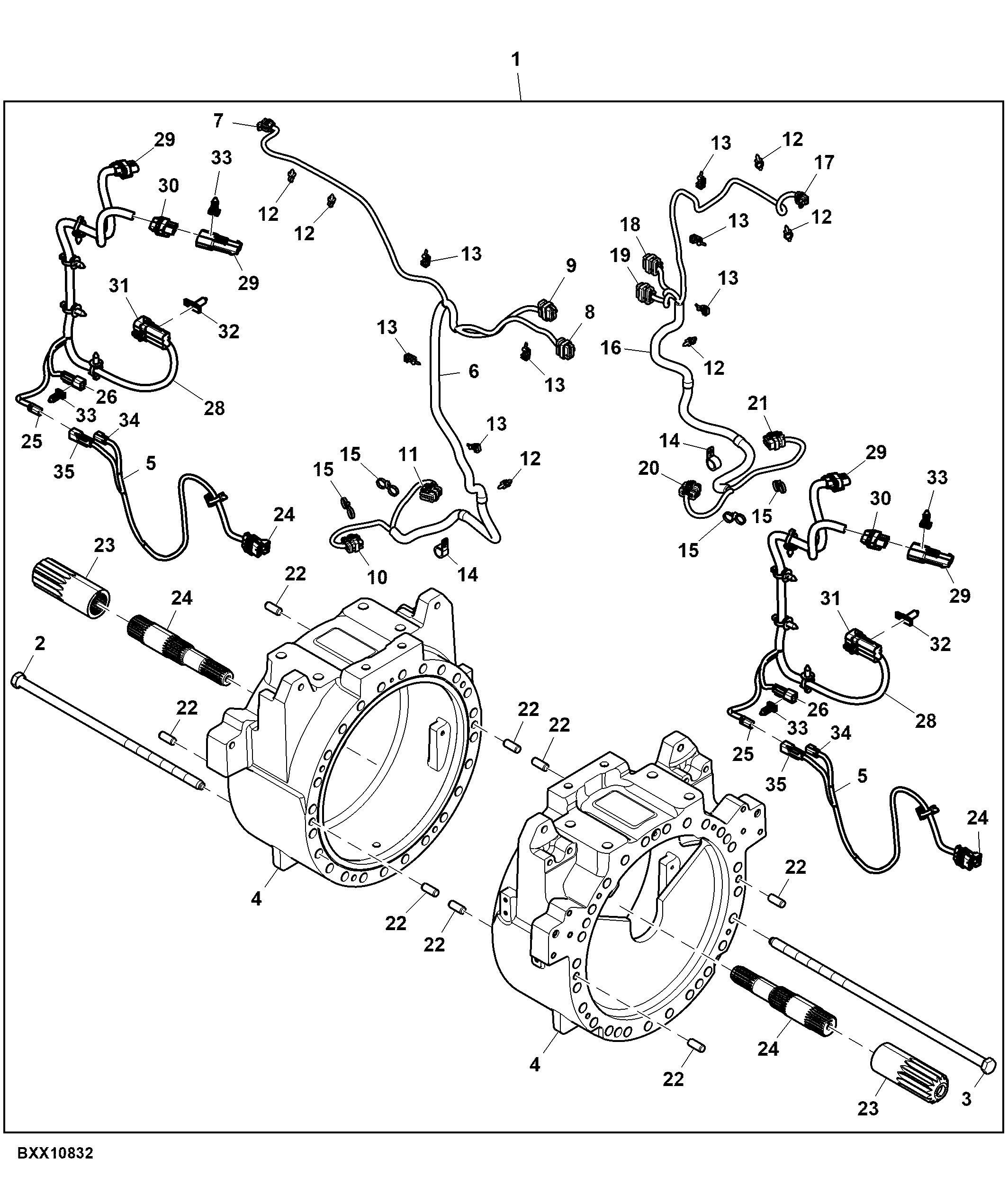

Rear Axle, 76”, Tread Spacing, Spacer Kit (804017 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BXX10832	1	Spacer	-
2	R565136	24	Cap Screw	-
3	R565138	24	Cap Screw	-
4	R569290	2	Housing	-
5	TA19465	2	Wiring Harness	-
6	TA20540	1	Wiring Harness	-
7	57M7260	1	Elec. Connector Housing	Right Fender / Worklight Jumper Interconnect, X133A
7	57M7291	1	Electrical Connector Assy	-
7	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
8	57M9802	1	Elec. Connector Housing	Right Fender To Main Chassis Interconnect 2, XX108-2
8	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
9	57M9800	1	Elec. Connector Housing	Right Fender To Main Chassis Interconnect 1, XX118-2
10	57M9800	1	Elec. Connector Housing	Jumper To Right Fender Interconnect 1, XX718-1
10	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
11	57M9802	1	Elec. Connector Housing	Jumper To Right Fender Interconnect 2, XX708-1
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
12	RE258807	6	Tie Band	-
13	57M9229	9	Clip	-
14	57M13302	2	Clamp	-
15	57M10421	4	Elec. Connector Accessory	-
16	TA20539	1	Wiring Harness	-
17	57M7291	1	Electrical Connector Assy	-
17	57M7260	1	Elec. Connector Housing	Left Fender / Worklight Jumper Interconnect, X131A
17	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
18	57M9800	1	Elec. Connector Housing	Left Fender To Main Chassis Interconnect 1, XX119-2
18	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
19	57M9802	1	Elec. Connector Housing	Left Fender To Main Chassis Interconnect 2, XX109-2
19	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
20	57M9800	1	Elec. Connector Housing	Jumper To Left Fender Interconnect 1, XX719-1
20	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
21	57M9802	1	Elec. Connector Housing	Jumper To Left Fender Interconnect 2, XX709-1
21	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
22	R54380	8	Dowel Pin	-
23	R567271	2	Pinion	-
24	R567272	2	Shaft	-
25	57M7255	2	Elec. Connector Housing	-
26	57M7785	2	Elec. Connector Housing	-
27	57M7784	2	Electrical Connector Assy	-
28	TA19466	2	Wiring Harness	-
29	57M8958	2	Elec. Connector Housing	-
30	57M8839	2	Elec. Connector Housing	-
31	57M8839	2	Elec. Connector Housing	-
32	57M7263	1	Elec. Connector Housing	-
33	57M8910	2	Clip	-
34	57M9555	4	Clip	-
35	57M7785	2	Elec. Connector Housing	-
36	57M7784	2	Electrical Connector Assy	-

Rear Axle, 76”, Tread Spacing, Spacer Kit (804017 - )

Нет текстового описания
