Открытый узел

DEF Lines and Pump, Size 5, FT4/ Stage 5 Engine ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7866	6	Screw	M8 X 20
2	57M9856	1	Clamp	-
3	19M8039	3	Screw	M8 X 80
4	R184863	3	Hose Clamp	-
5	T184924	8	Hose Clamp	-
6	R562141	1	Hose	Inline Filter To Header
7	DZ118548	1	Filter	-
8	R202160	10	Clamp	USE WITH DZ104778
8	R202160	7	Clamp	USE WITH DZ121774
9	R564906	1	Hose	DEF Doser Coolant Return
10	R567669	1	Hose	Manifold Coolant Supply
11	R567668	1	Hose	Manifold Coolant Return
12	RE595088	1	Filter	DEF Vent
13	H216170	1	Fitting	-
14	R570506	1	Hose	DEF Vent
15	H216169	1	Breather	-
16	R545422	1	Stud	-
17	RE258807	20	Tie Band	-
18	19M7803	2	Screw	M8 X 70
19	DZ113353	1	DEF Line	Backflow, INCLUDES 57M9774
20	DZ121774	1	DEF Dosing Unit Pump	SUB FOR DZ104778
21	W40935	2	Clamp	-
22	R132609	1	Clamp	-
23	19M10365	2	Screw	M8 X 20
24	R570591	1	Line	DEF Tank Coolant Return
25	57M9776	1	Elec. Connector Housing	-
26	R570588	1	Line	DEF Tank Coolant Supply
27	H120847	6	Clamp	-
28	TR118668	1	Hose	Coolant Return
28	R568368	1	Hose	Coolant Return, ORDER TR118668
29	R568366	1	Hose	DEF Header Coolant Supply, ORDER TR118667
29	TR118667	1	Hose	DEF Header Coolant Supply
30	R569126	1	Line	Doser Coolant Supply
31	R569122	1	Line	Doser Coolant Return
32	TA22760	1	Bracket	SUB FOR RE592572
33	DZ110513	1	Filter Kit	DEF Inline Service Kit
34	R568619	1	Hose	Doser To Coolant Bottle
35	R568618	1	Hose	Doser Coolant Supply
36	R569468	2	Hose	Coolant Return To Manifold
37	R213663	1	Clamp	-
38	R569551	1	Shield	Line Holder Bracket
39	RE594586	1	Reservoir	-
40	57M9940	1	Elec. Connector Accessory	-
41	DZ116873	1	DEF Line	Suction, INCLUDES 57M9772
42	DZ116874	1	DEF Line	Suction Jumper, INCLUDES 57M9776 AND 57M9772
43	H121168	2	Plate	-
44	R570128	1	Coolant Manifold	-
45	DZ117374	1	DEF Line	DEF Line, Pressure, INCLUDES 57M9773
46	19M8318	4	Screw	M8 X 45
47	RE549603	1	Adapter Fitting	INCLUDES 51M7040
48	RE549604	1	Adapter Fitting	INCLUDES 51M7040
49	RE555351	1	Cap	-
50	DZ113071	1	Adapter Fitting	DEF Inline Filter
51	DZ114640	1	Filter Kit	DEF Supply Module Filter
52	57M9772	2	Elec. Connector Housing	-
53	57M9774	1	Elec. Connector Housing	-
54	57M9773	1	Elec. Connector Housing	-
55	KK15513	3	Clamp	USE WITH DZ121774
56	51M7040	2	O-Ring	9.300 X 2.200 mm

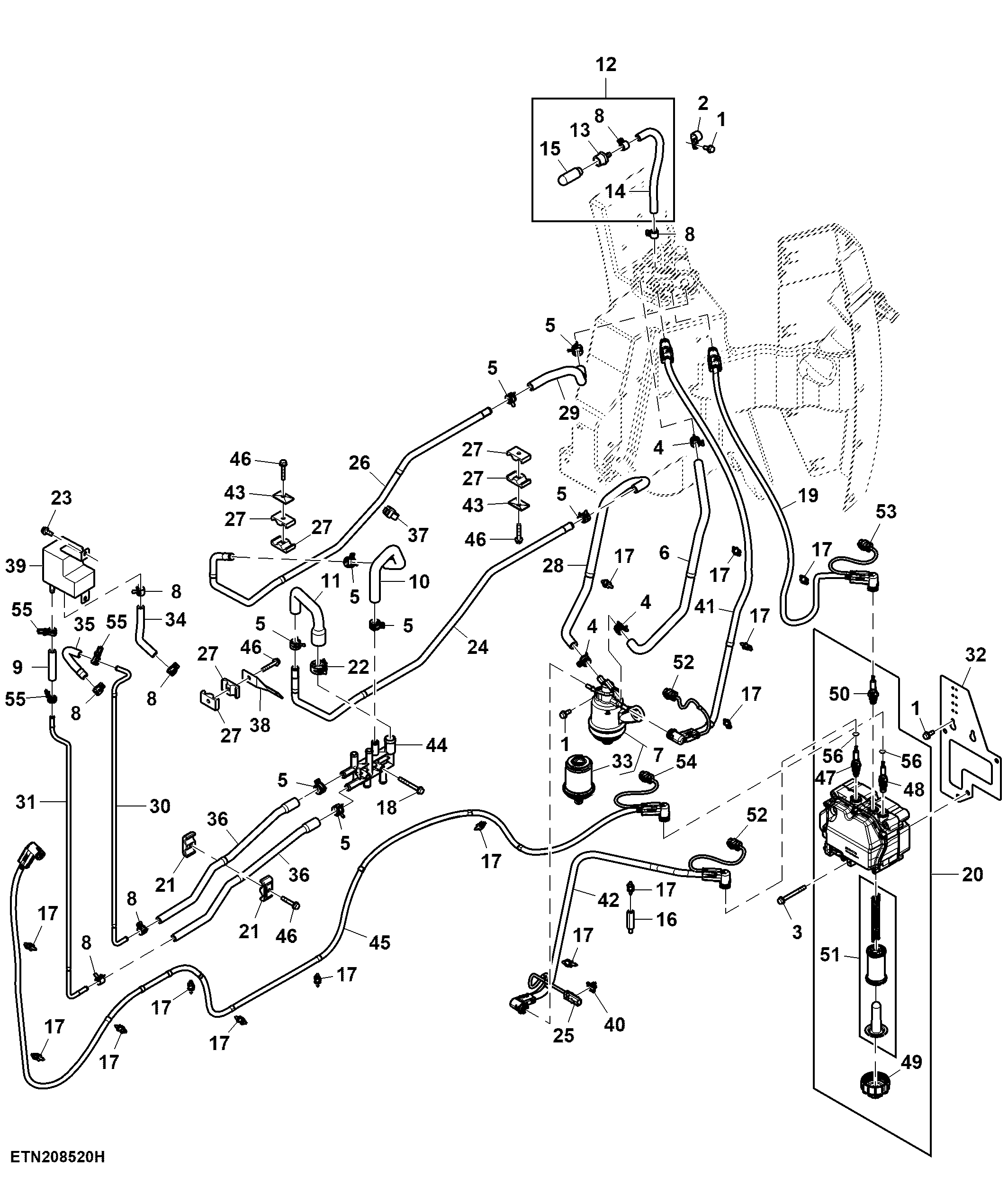

DEF Lines and Pump, Size 5, FT4/ Stage 5 Engine ( - 804000)

Нет текстового описания
