Открытый узел

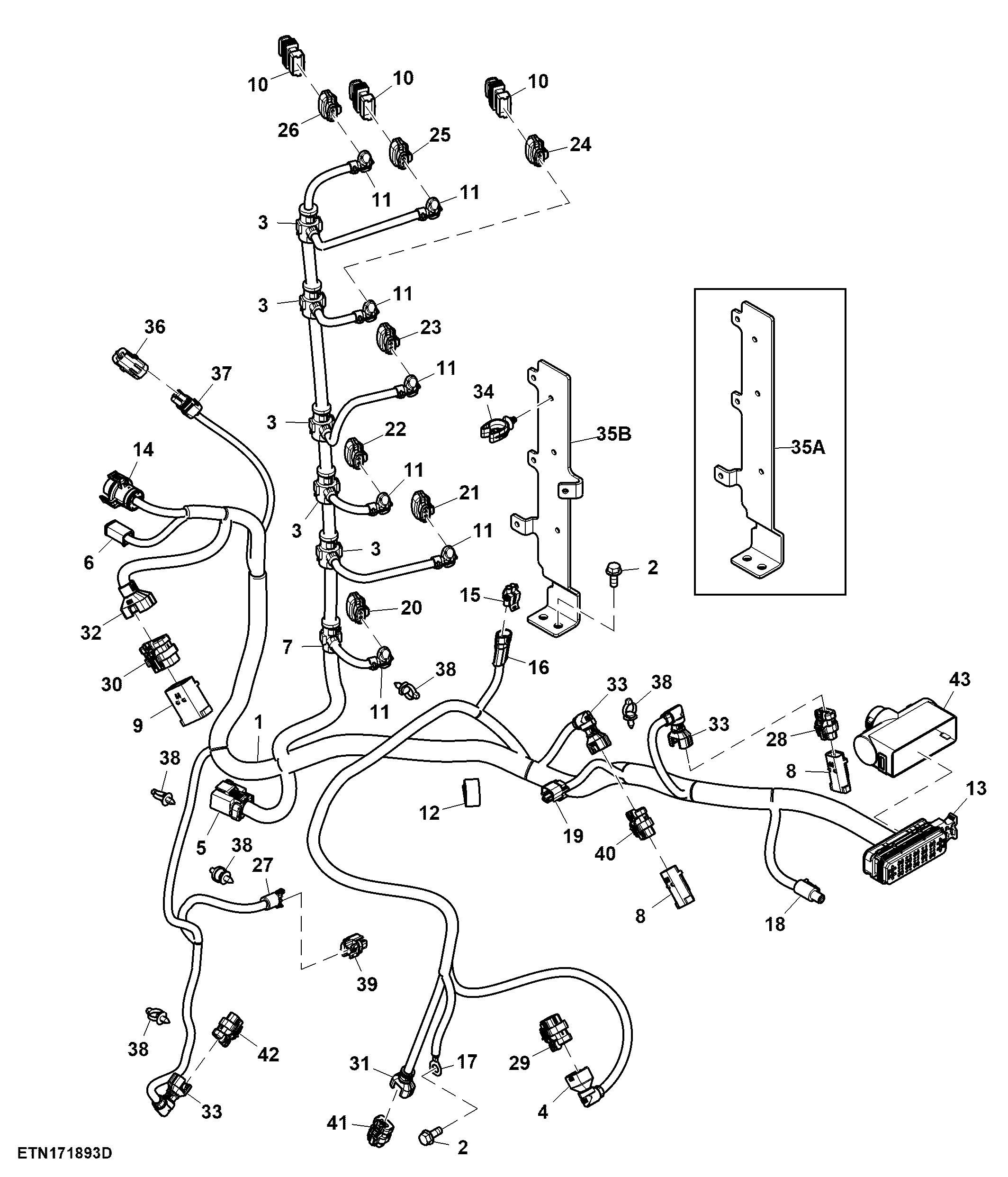

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 802000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE595510	1	Chassis Wiring Harness	-
2	19M7866	3	Screw	M8 X 20
3	57M10092	5	Elec. Connector Accessory	-
4	57M10229	1	Elec. Connector Accessory	-
5	57M10299	1	Elec. Connector Housing	XX016-1, Trailer Lighting Conn
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
6	57M10530	1	Elec. Connector Housing	A914, Breakway ISO Bus
6	57M8016	1	Elec.Connect Locking Device	-
6	RWA11058	1	Repair Wire Assembly	Cavity 2, 4
7	57M10638	1	Elec. Connector Accessory	-
8	57M11334	2	Elec. Connector Accessory	-
9	57M11338	1	Elec. Connector Accessory	-
10	57M11354	3	Elec. Connector Housing	Cap
11	57M11897	7	Elec. Connector Accessory	-
12	57M12125	1	Clamp	-
13	57M13605	1	Elec. Connector Housing	XX183-2, Rear To Main Interconnect
13	RWA11128	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
13	RWA11126	1	Repair Wire Assembly	Cavity B2, B3, B4, B5, B6, B8, B11, C1, C2, C3, C4, C7, C8, C9, C10, C11, C12, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, E1, E2, E10, E11, E12, F7, F10, F11, F12
14	57M8593	2	Elec. Connector Terminal	Cavity 1, 3
14	57M7614	2	Elec. Connector Terminal	Cavity 1, 3
14	57M13652	1	Elec. Connector Housing	X221, Implement Connector
15	57M7254	1	Elec. Connector Housing	XX014-1_CAP, Dust Cap
16	57M7256	1	Elec. Connector Housing	XX014-1, Back-Up Alarm
16	RWA11082	1	Repair Wire Assembly	Cavity A, B
17	57M7567	1	Elec. Connector Terminal	XGND4, IBBC Ground
18	57M7760	1	Electrical Connector Assy	XX186-2, IBBC Power
18	57M7614	1	Elec. Connector Terminal	Cavity 1
19	57M8924	1	Elec. Connector Housing	Y666, Rear Diff Lock Solenoid
19	RWA11097	1	Repair Wire Assembly	Cavity A, B
20	57M9498	1	Elec. Connector Housing	A701, SCV 1 Valve
20	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
21	57M9498	1	Elec. Connector Housing	A702, SCV 2 Valve
21	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
22	57M9498	1	Elec. Connector Housing	A703, SCV 3 Valve
22	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
23	57M9498	1	Elec. Connector Housing	A800, Rear Hitch Valve
23	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
24	57M9498	1	Elec. Connector Housing	A704, SCV 4 Valve
24	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
25	57M9498	1	Elec. Connector Housing	A705, SCV 5 Valve
25	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
26	57M9498	1	Elec. Connector Housing	A706, SCV 6 Valve
26	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
27	57M9556	1	Elec. Connector Accessory	-
28	57M9780	1	Elec. Connector Housing	B517, Primary Wheel Speed
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
29	57M9786	1	Elec. Connector Housing	B698, Rockshaft Position Rear Hitch
29	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
30	57M9800	1	Elec. Connector Housing	XX185-1, ATB Interconnect
30	RWA11029	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 10, 11
31	57M9838	1	Elec. Connector Accessory	-
32	57M9844	1	Elec. Connector Accessory	-
33	57M9847	3	Elec. Connector Accessory	-
34	R568227	3	Clip	-
36	R78053	1	Electrical Connector Assy	S549_CAP, Dust Cap
37	RE12363	1	Electrical Connector Assy	S549, Implement Switch
37	RWA11147	1	Repair Wire Assembly	Cavity A, B
38	RE258807	11	Tie Band	-
39	57M8924	1	Elec. Connector Housing	Y499, Solenoid Two Speed Rear PTO 1000/1000E
39	57M11380	1	Elec. Connector Accessory	-
39	RWA11097	1	Repair Wire Assembly	Cavity A, B
40	57M9780	1	Elec. Connector Housing	B516, Secondary Wheel Speed
40	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
41	57M9780	1	Elec. Connector Housing	XX721-1, Draft Sensor
41	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
42	57M9780	1	Elec. Connector Housing	B696, Rear PTO Speed
42	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
43	57M13948	1	Elec. Connector Accessory	-
35A	R568838	1	Bracket	ORDER R571566
35B	R571566	1	Bracket	-

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch ( - 802000)

Нет текстового описания
