Открытый узел

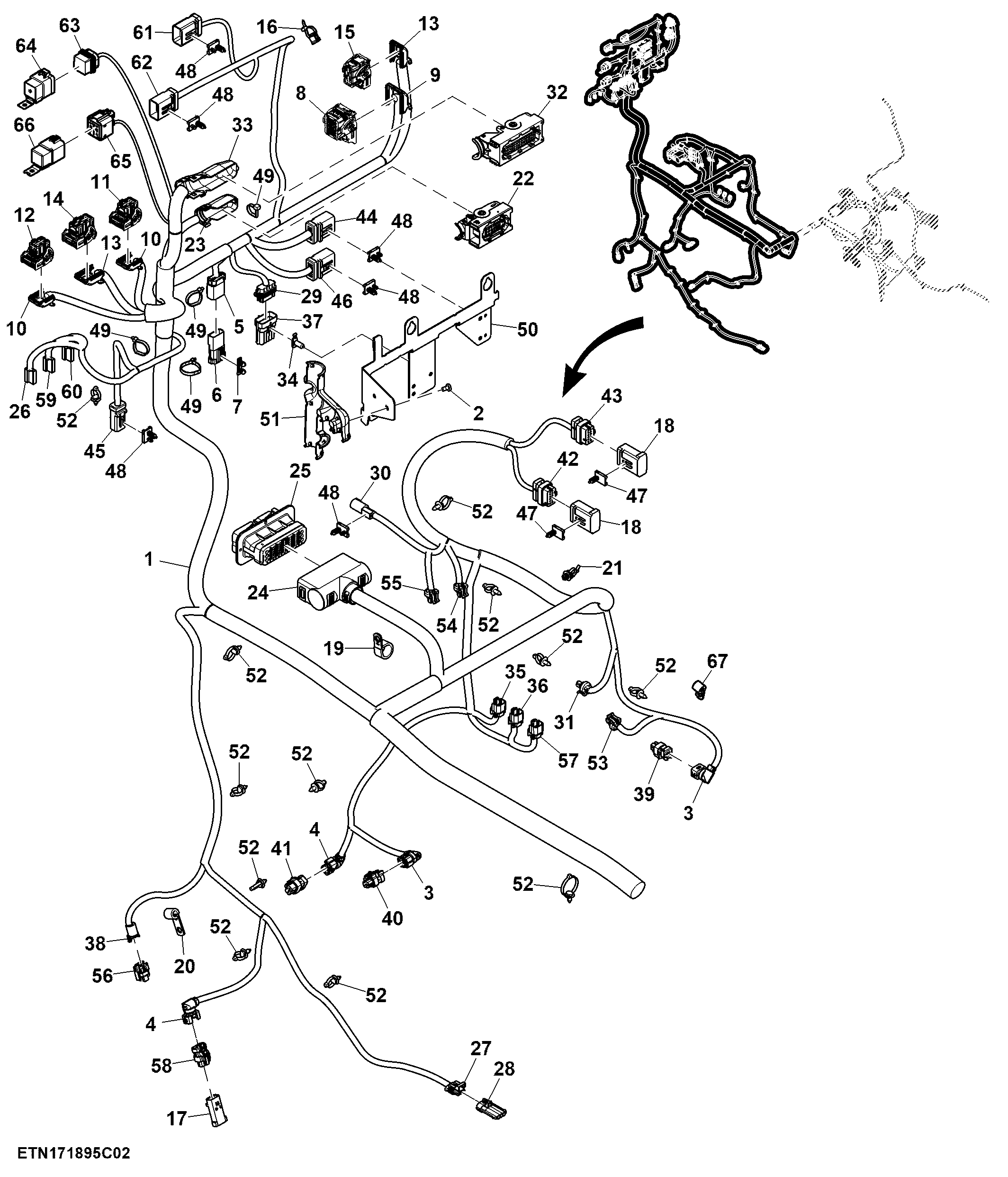

Wiring Harness, Chassis, FT4 / Stage 5 Engine (2/3) ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE595477	1	Chassis Wiring Harness	-
2	21M7400	2	Screw	M6 X 10
3	57M10155	2	Elec. Connector Accessory	-
4	57M10156	2	Elec. Connector Accessory	-
5	57M10303	1	Elec. Connector Housing	XX208-1, Trailer ABS
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M10304	1	Elec. Connector Housing	XX208-1_A, XX208-1 Cap
7	57M10308	1	Elec. Connector Accessory	-
8	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
8	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
8	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
8	57M10329	1	Elec. Connector Housing	A107-3, Cab Controller J3
9	57M10401	1	Elec. Connector Accessory	-
10	57M10604	2	Elec. Connector Housing	-
11	57M10605	1	Elec. Connector Housing	A980-1, Steering Control J1
11	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C4, D4, E2, E4, F2, F4
11	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H3, H4
12	RWA11030	1	Repair Wire Assembly	Cavity C3, C4, D3, F2
12	RWA11032	1	Repair Wire Assembly	Cavity G4
12	57M10611	1	Elec. Connector Housing	A980-3, Steering Control J3
13	57M10613	2	Elec. Connector Housing	-
14	57M10614	1	Elec. Connector Housing	A980-2, Steering Control J2
14	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B2, B4, C3, C4, D3, E1, E2, E3, F1, F2, F4, G1, G2, G3, G4, H1, H2, H4, J1, J2, J3, J4, K1, K2, K3
14	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
15	57M10615	1	Elec. Connector Housing	A107-1, Cab Controller J1
15	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, C2, C3, D2, D4, E1, E2, E3, E4, F3, F4, G1, G3, G4, H3, H4, J3, J4
15	RWA11032	1	Repair Wire Assembly	Cavity L2, M1, M2, M3, M4
16	57M10747	3	Elec. Connector Accessory	-
17	57M11334	1	Elec. Connector Accessory	-
18	57M11338	2	Elec. Connector Accessory	-
19	57M12124	1	Clamp	-
20	57M12138	1	Clamp	-
21	57M13016	1	Elec. Connector Accessory	-
22	57M15202	1	Elec. Connector Terminal	Cavity 1
22	57M14691	1	Elec. Connector Seal	Cavity 2
22	57M15110	1	Elec. Connector Terminal	Cavity 2
22	RWA11045	1	Repair Wire Assembly	Cavity 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
22	57M11890	1	Elec. Connector Seal	Cavity 1
22	57M13340	1	Elec. Connector Housing	XX501-1, Chassis To Cab Interconnect 2
22	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 11, 12, 13, 14
23	57M13343	1	Elec. Connector Accessory	-
24	57M13948	1	Elec. Connector Accessory	-
25	RWA11032	1	Repair Wire Assembly	Cavity
25	RWA11129	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
25	RWA11127	1	Repair Wire Assembly	Cavity B2, B3, B4, B5, B6, B8, B11, C1, C2, C3, C4, C7, C8, C9, C10, C11, C12, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, E1, E2, E3, E4, E5, E6, E10, E11, E12, F7, F10, F11, F12
25	57M14781	1	Elec. Connector Housing	XX183-1, Main To Rear Interconnect
26	57M7144	1	Elec. Connector Housing	M01, Front Washer Pump
26	RWA11076	1	Repair Wire Assembly	Cavity A, B
27	57M7255	1	Elec. Connector Housing	XX201, Radar Interconnect
27	57M7290	1	Elec. Connector Accessory	-
27	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
28	57M7257	1	Elec. Connector Housing	XX201_A, XX201 Cap
29	57M7262	1	Elec. Connector Housing	X116, Implement Accessory
29	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
29	CB01489384	1	Elec. Connector Accessory	-
30	57M7761	1	Elec. Connector Housing	XX186-1, IBBC_Power
30	57M7613	1	Elec. Connector Terminal	Cavity 1
31	57M8625	1	Elec. Connector Housing	B263_AT, Backup Pump Pressure
31	57M8624	1	Elec.Connect Locking Device	-
31	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
32	57M8730	1	Elec. Connector Housing	XX500-1, Chassis To Cab Interconnect
32	57M11957	1	Elec. Connector Accessory	-
32	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 8, 11, 12, 14, 21, 22, 26, 27, 28, 29, 30, 34, 35, 38, 39, 41, 43, 44, 56
32	RWA11045	1	Repair Wire Assembly	Cavity 61
33	57M8738	1	Elec. Connector Accessory	-
34	57M8910	1	Clip	-
35	57M8924	1	Elec. Connector Housing	Y747, Steer 1 Off
35	RWA11097	1	Repair Wire Assembly	Cavity A, B
35	57M8633	1	Elec. Connector Accessory	-
36	57M9210	1	Elec. Connector Housing	Y749, Steer 1 Right
36	RWA11097	1	Repair Wire Assembly	Cavity A, B
36	57M8633	1	Elec. Connector Accessory	-
37	57M9213	1	Elec. Connector Housing	X116_A, X116_Cap
38	57M11380	1	Elec. Connector Accessory	-
39	57M9727	1	Elec. Connector Housing	B694, Hydraulic Oil Temp
39	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
40	57M9775	1	Elec. Connector Housing	B696, Rear PTO Speed
40	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
41	57M9780	1	Elec. Connector Housing	B555, Diff Case Oil Presence Sensor
41	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
42	57M9800	1	Elec. Connector Housing	XX058-1, Combo Valve Interconnect
42	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
43	57M9802	1	Elec. Connector Housing	XX059-1, Combo Valve Interconnect - 1
43	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
44	57M9804	1	Elec. Connector Housing	XX119-1, Left Rear Fender Light Interconnect
44	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
45	57M9821	1	Elec. Connector Housing	XX141-2, Front Camera
45	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
46	57M9825	1	Elec. Connector Housing	XX109-1, Left Rear Fender Interconnect 2
46	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
47	57M9939	2	Elec. Connector Accessory	-
48	57M9940	6	Elec. Connector Accessory	-
49	R44302	10	Tie Band	-
50	-	1	Part 94	ORDER RE595477
51	R568847	1	Bracket	-
52	RE258807	30	Tie Band	-
53	57M8625	1	Elec. Connector Housing	B552, Hydraulic Oil Filter Restriction Sensor
53	57M8624	1	Elec.Connect Locking Device	-
53	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
54	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
54	57M8624	1	Elec.Connect Locking Device	-
54	57M8625	1	Elec. Connector Housing	B262, Main Hydraulic Pump Pressure-2
55	57M8625	1	Elec. Connector Housing	B261_AT, Main Hydraulic Pump Pressure-1
55	57M8624	1	Elec.Connect Locking Device	-
55	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
56	57M8924	1	Elec. Connector Housing	Y500, Rear PTO Solenoid
56	RWA11097	1	Repair Wire Assembly	Cavity A, B
57	57M9210	1	Elec. Connector Housing	Y748, Steer 1 Left
57	57M8633	1	Elec. Connector Accessory	-
57	RWA11097	1	Repair Wire Assembly	Cavity A, B
58	57M9780	1	Elec. Connector Housing	B717, Hydraulic Charge Press
58	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
59	57M7144	1	Elec. Connector Housing	M02, Rear Washer Pump
59	RWA11076	1	Repair Wire Assembly	Cavity A, B
60	57M7144	1	Elec. Connector Housing	M03, Right Washer Pump
60	RWA11076	1	Repair Wire Assembly	Cavity A, B
61	57M9804	1	Elec. Connector Housing	XX118-1, Right Fender Interconnect 1
61	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
62	57M9825	1	Elec. Connector Housing	XX108-1, Right Rear Fender Interconnect 2
62	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
63	57M7555	1	Elec. Connector Housing	KE1, Implement ECU Relay
63	57M11114	2	Elec. Connector Terminal	Cavity 1, 4
63	57M13620	1	Elec. Connector Terminal	Cavity 2
63	57M7579	1	Elec. Connector Terminal	Cavity 5
64	TCA51227	1	Relay	SUB FOR 57M12655
65	57M8233	1	Electrical Connector Assy	KE100, Implement Power Relay
65	57M10210	2	Elec. Connector Terminal	Cavity 3, 5
65	57M10213	2	Elec. Connector Cable Seal	Cavity 3, 5
65	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
65	57M10212	2	Elec. Connector Cable Seal	Cavity 1, 2
66	AL156697	1	Relay	-
67	57M12128	1	Clamp	-

Wiring Harness, Chassis, FT4 / Stage 5 Engine (2/3) ( - 804000)

Нет текстового описания
