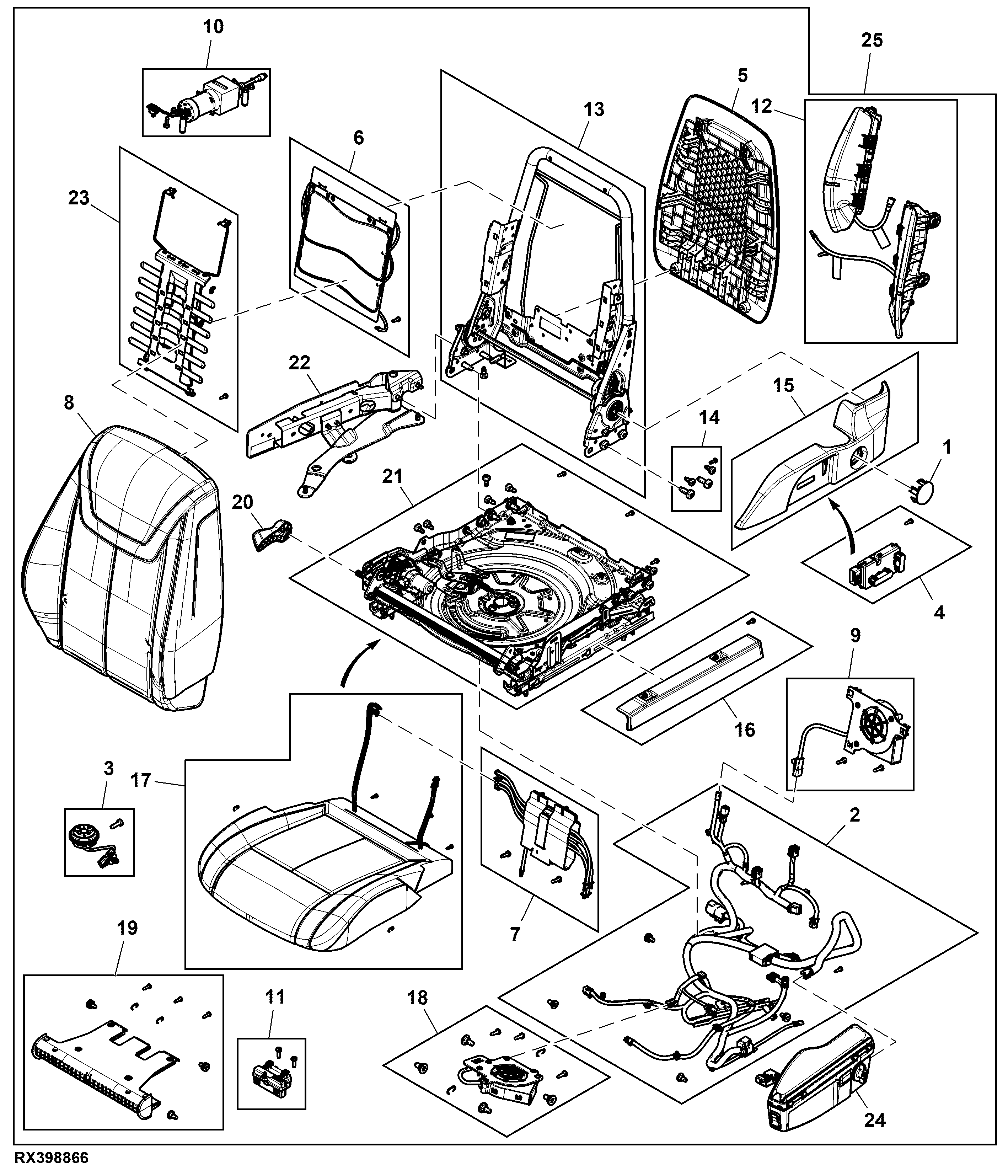

Seat Top Assembly, Ultimate, ActiveSeat™ ( - 802020)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R566458	1	Cover	Seat Belt Attachment
2	RE590638	1	Seat Kit	Seat Harness
3	RE590644	1	Toggle/Rocker Switch	Pneumatic Lumbar Control
4	RE590645	1	Toggle/Rocker Switch	6-Way Seat Adjust
5	RE590669	1	Panel Kit	Operator Seat Back Panel
6	RE590671	1	Seat Kit	Pneumatic Lumbar System
7	RE590672	1	Seat Kit	Seat 16+1 Valve Block
8	RE590675	1	Seat Kit	Seat Back Cushion
9	RE590676	1	Seat Kit	Seat Back Vent System
10	RE590679	1	Seat Kit	8-Liter Pneumatic Pump
11	RE590680	1	Seat Kit	Lin Communication Box
12	RE590682	1	Seat Kit	Seat Back Bolster
13	RE590684	1	Seat Kit	Seat Back Frame
14	RE590686	1	Seat Kit	LH Armrest Bracket
15	RE590689	1	Seat Kit	Seat Side Shield
16	RE590690	1	Seat Kit	LH Rail Cover
17	RE590693	1	Seat Kit	Seat Cushion Assembly, ORDER TA19495
17	TA19495	1	Seat Kit	-
18	RE590694	1	Seat Kit	Vent System
19	RE590695	1	Seat Kit	Cushion Length Adjustment
20	RE590700	1	Seat Kit	Swivel Handle
21	RE590702	1	Seat Kit	Seat Swivel
22	RE590704	1	Seat Kit	Pivoting CommandARM™ Bracket
23	RE594003	1	Seat Kit	Lumbar Assembly Service
24	RE595215	1	Armrest	LH
25	RE595412	1	Seat Assembly	-

Seat Top Assembly, Ultimate, ActiveSeat™ ( - 802020)
