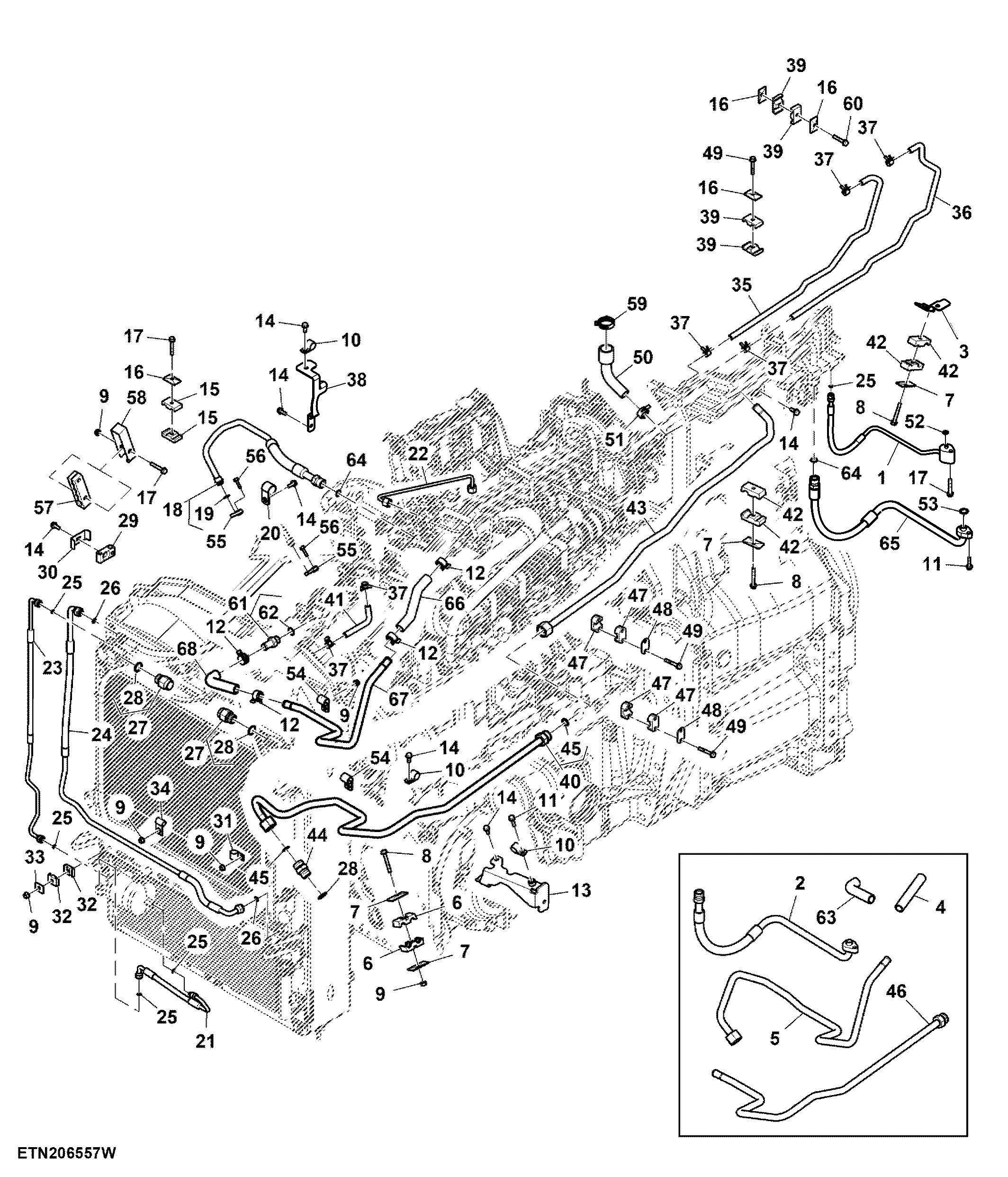

Line, Front Line Bundle, T3 Engine (2/2) ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA19737	1	Refrigerant Hose	A/C Dryer To Cab
1	RE595724	1	Refrigerant Hose	A/C Dryer To Cab, ORDER TA19737
2	RE595725	1	Refrigerant Hose	A/C Suction To Compressor, ORDER RE596991
3	RE595726	1	Bracket	ORDER TA19738
3	TA19738	1	Bracket	-
4	RE593915	1	Hose	AUX Coolant Return, ORDER RE596727
5	RE593919	1	Line	Cab Heater Return, ORDER TR118961
6	H135155	2	Clamp	-
7	H112567	4	Plate	-
8	19M7801	3	Screw	M8 X 60
9	14M7298	9	Flange Nut	M8
10	E53830	3	Clamp	-
11	19M7868	2	Screw	M8 X 30
12	R191781	4	Hose Clamp	-
13	RE595859	1	Bracket	-
14	19M7866	10	Screw	M8 X 20
15	H108291	2	Clamp	-
16	H121168	4	Plate	-
17	19M7800	3	Screw	M8 X 50
18	RE595856	1	Refrigerant Hose	A/C Compressor Inlet
19	51M7090	1	O-Ring	13.400 X 2.400 mm
20	R46667	1	Clamp	-
21	RE561618	1	Refrigerant Hose	A/C Condenser Outlet To Dryer
22	RE588877	1	Tube	Connect Bundle To EGR Port On Top of Engine
23	RE594011	1	Refrigerant Hose	Connects Bundle To Dryer Bottle
24	RE595866	1	Refrigerant Hose	Connects Condenser To Bundle
25	R183409	5	O-Ring	-
26	R183410	2	O-Ring	-
27	62M1002	2	Adapter Fitting	INCLUDES 51M7047
28	51M7047	3	O-Ring	23.600 X 2.900 mm
29	R568875	1	Clamp	-
30	R571608	1	Plate	-
31	N191985	4	Clip	-
32	H128515	2	Clamp	-
33	H121163	1	Strap	-
34	AH107416	2	Clip	-
35	RE594078	1	Hose	Connects Deareation Line From Bundle To Bottle
36	RE594079	1	Hose	Connects Deareation Line From Bundle To Bottle
37	R320593	6	Hose Clamp	-
38	RE588438	1	Bracket	ORDER TA20580
38	TA20580	1	Bracket	-
39	H120847	4	Clamp	-
40	TA19313	1	Line	Connects Rear Drain Line To Engine
41	RE596237	1	Hose	Connects Radiator To Deaeration Line
42	H114865	4	Clamp	-
43	RE586113	1	Line	Deareation Bottle Return Line
44	38H5005	1	Adapter Fitting	INCLUDES 51M7047
45	T77858	2	O-Ring	-
46	RE596153	1	Line	Connects Rear Drain Line To Engine, ORDER TA19313
47	H114876	4	Clamp	-
48	R572241	2	Plate	-
49	R106825	5	Screw	-
50	RE588524	1	Hose	Connects Bottle To Drain Line
51	H156922	1	Hose Clamp	-
52	R567091	1	Sealing Washer	-
53	R567094	1	Sealing Washer	-
54	T64784	2	Clip	-
55	R295484	2	Clamp	-
56	19M7863	2	Screw	M6 X 25
57	R569465	1	Block Clamp	-
58	R569467	1	Channel	-
59	L154742	1	Clamp	-
60	19M7799	1	Screw	M8 X 45
61	RE223627	1	Hose Fitting	Water Pump Inlet
62	51M7045	1	O-Ring	19.300 X 2.200 mm
63	RE596152	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp, ORDER TR118982
64	R183412	2	O-Ring	-
65	RE596991	1	Refrigerant Hose	A/C Suction To Compressor, ORDER TR121052
65	TR121052	1	Refrigerant Hose	A/C Suction To Compressor
66	RE596727	1	Hose	AUX Coolant Return
67	TR118961	1	Line	Cab Heater Return
68	TR118982	1	Hose	Connects Aux Drain Line To Fitting Using Tension Clamp

Line, Front Line Bundle, T3 Engine (2/2) ( - 804000)
