Открытый узел

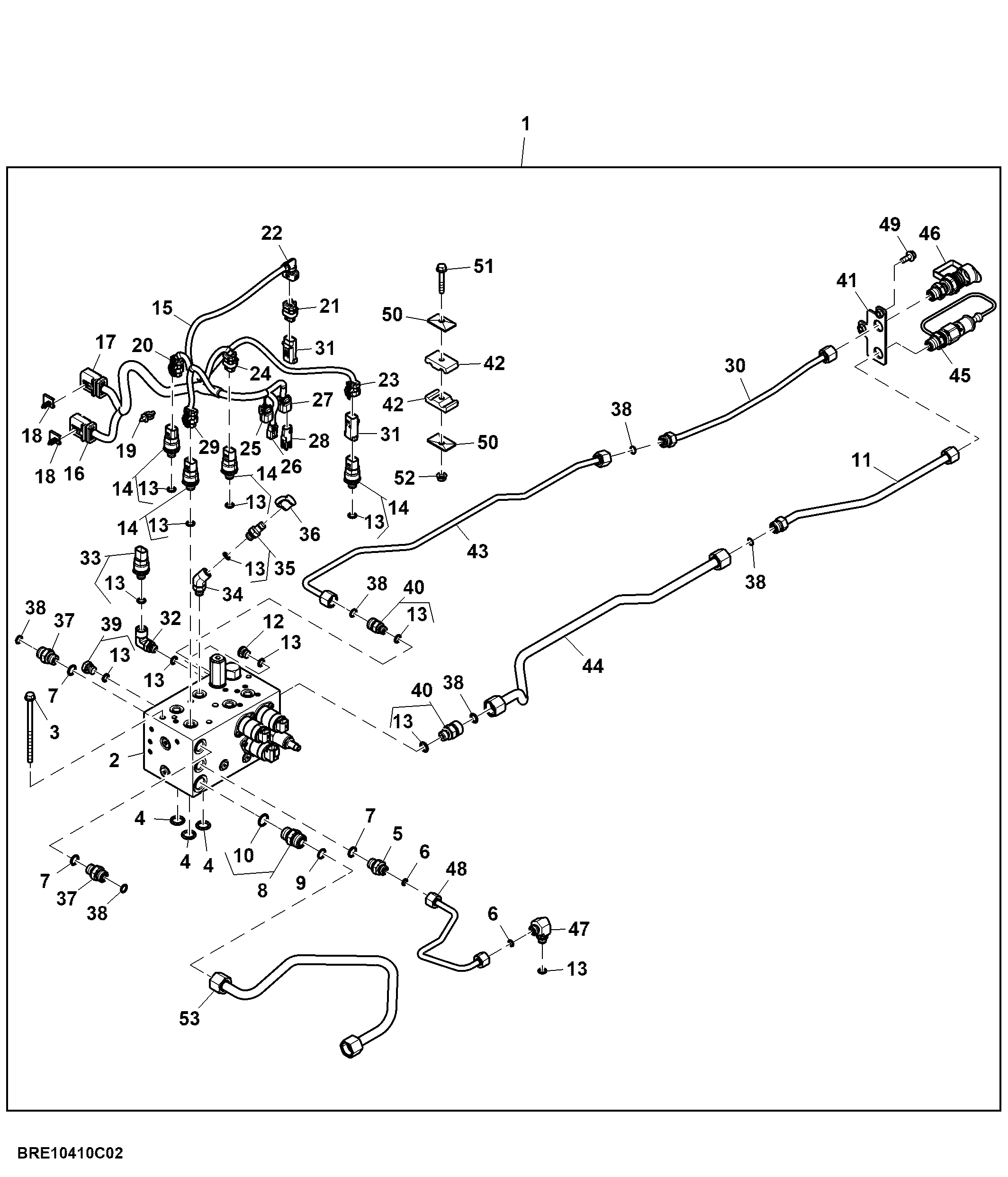

Hydraulic Trailer Brake Kit (Not for Europe / EAEU) (801001 - 802000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10410	1	Hydraulic Trailer Brake Kit	-
2	RE591258	1	Valve	-
3	19M8125	3	Screw	M8 X 140
4	B2762R	3	O-Ring	-
5	38H5012	1	Adapter Fitting	-
6	T77613	2	O-Ring	-
7	51M7043	3	O-Ring	15.300 X 2.200 mm
8	38H5004	1	Adapter Fitting	-
9	T77932	1	O-Ring	-
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	RE590970	1	Oil Line	INCLUDES T77857
12	64M1017	1	Drain Plug	-
13	51M7041	12	O-Ring	11.300 X 2.200 mm
14	RE584417	4	Pressure Sensor	90 Bar
15	RE593399	1	Chassis Wiring Harness	-
16	57M9825	1	Elec. Connector Housing	Combo Valve Connection 2, XX059-2
16	RWA11023	1	Repair Wire Assembly	Cavity 8, 9
16	RWA11025	1	Repair Wire Assembly	Cavity 11, 12
17	57M9804	1	Elec. Connector Housing	Combo Valve Interconnect 1, XX058-2
17	RWA11025	1	Repair Wire Assembly	Cavity 2 ,3, 4, 5, 6, 7, 8, 9, 10, 11
18	57M9939	2	Elec. Connector Accessory	-
19	RE258807	2	Tie Band	-
20	57M9780	1	Elec. Connector Housing	Right Rear Brake Pressure, B255
20	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
21	57M9780	1	Elec. Connector Housing	HYD Trailer Control Pressure, B257
21	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
22	57M10156	1	Elec. Connector Accessory	-
23	57M9780	1	Elec. Connector Housing	HYD Trailer Supplementry Pressure, B258
23	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
24	57M9780	1	Elec. Connector Housing	Trailer Pre Brake Pressure, B265
24	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
25	57M8924	1	Elec. Connector Housing	Trailer Brake Off, Y708
25	57M8633	1	Elec. Connector Accessory	-
25	RWA11097	1	Repair Wire Assembly	Cavity A, B
26	57M10517	1	Elec. Connector Housing	Trailer Brake, Y707
26	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
26	57M8022	1	Elec.Connect Locking Device	-
27	57M8924	1	Elec. Connector Housing	HYD Trailer Brake Leak Detection Solenoid, Y722
27	RWA11097	1	Repair Wire Assembly	Cavity A, B
27	57M8633	1	Elec. Connector Accessory	-
28	57M9222	1	Elec. Connector Housing	-
28	57M8633	1	Elec. Connector Accessory	-
29	57M9780	1	Elec. Connector Housing	Left Brake Pressure, B256
29	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
30	RE590968	1	Oil Line	INCLUDES T77857
31	57M11334	2	Elec. Connector Accessory	-
32	AL117978	1	Adapter Fitting	-
33	RE584419	1	Pressure Sensor	320 Bar
34	RE256240	1	Elbow Fitting	-
35	RE190805	1	Diagnostic Coupling	-
36	R77175	1	Cover	-
37	38H5003	2	Adapter Fitting	-
38	T77857	6	O-Ring	-
39	RE46684	1	Fitting Plug	-
40	38H5009	2	Adapter Fitting	-
41	RE583772	1	Bracket	-
42	H108291	4	Clamp	-
43	RE584393	1	Oil Line	Hydraulic Trailer Brake Coupler
44	RE596487	1	Oil Line	Hydraulic Trailer Brake Coupler
45	RE579717	1	Hyd. Quick-Connect Coupler	-
46	RE580317	1	Hyd. Quick-Connect Coupler	-
47	38H5016	1	Elbow Fitting	-
48	RE594428	1	Oil Line	Brake Pressure Load Sense
49	19M7866	2	Screw	M8 X 20
50	H121168	3	Plate	-
51	19M7800	2	Screw	M8 X 50
52	14M7298	1	Flange Nut	M8
53	RE584398	1	Oil Line	Brake Manifold Supply Line

Hydraulic Trailer Brake Kit (Not for Europe / EAEU) (801001 - 802000)

Нет текстового описания
