Hydraulic Trailer Brake Kit, (For EU/EAEU) (804001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10577	1	Valve	-
2	38H5003	3	Adapter Fitting	-
3	38H5008	1	Adapter Fitting	-
4	38H5027	1	Elbow Fitting	-
5	38H5240	1	Adapter Fitting	-
6	51M7040	1	O-Ring	9.300 X 2.200 mm
7	51M7043	3	O-Ring	15.300 X 2.200 mm
8	57M10517	1	Elec. Connector Housing	Trailer Brake, Y707
8	57M8022	1	Elec.Connect Locking Device	-
8	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
9	57M8924	1	Elec. Connector Housing	Secondary Brake Off, Y703
9	RWA11097	1	Repair Wire Assembly	Cavity A, B
10	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 11, 12
10	RWA11023	1	Repair Wire Assembly	Cavity 8, 9
10	57M9825	1	Elec. Connector Housing	Combo Valve Connection 2, XX059–2
11	14M7298	4	Flange Nut	M8
12	14M7743	2	Nut	M8
13	19M7786	2	Screw	M10 X 30
14	19M7798	1	Screw	M8 X 40
15	19M7800	3	Screw	M8 X 50
16	19M7866	3	Screw	M8 X 20
17	19M7867	4	Screw	M8 X 25
18	19M8125	3	Screw	M8 X 140
19	38H5016	2	Elbow Fitting	-
20	38H5076	1	Adapter Fitting	-
21	51M7041	9	O-Ring	11.300 X 2.200 mm
22	51M7045	6	O-Ring	19.300 X 2.200 mm
23	57M9780	1	Elec. Connector Housing	-
24	57M9804	1	Elec. Connector Housing	Combo Valve Interconnect 1, XX058–2
24	RWA11025	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
25	57M9939	2	Elec. Connector Accessory	-
26	AT452599	1	Adapter Fitting	-
27	B2762R	3	O-Ring	-
28	H108291	10	Clamp	-
29	H121168	7	Plate	-
30	H127589	2	Clamp	-
31	R532487	1	Stud	-
32	R572328	1	Bracket	-
33	R573050	1	Bracket	-
34	RE258807	2	Tie Band	-
35	RE46684	1	Fitting Plug	-
36	RE46687	1	Drain Plug	-
37	RE584417	1	Pressure Sensor	Right Rear Brake Pressure, INCLUDES 51M7041; B255
38	RE584419	1	Pressure Sensor	-
39	RE595879	1	Line	Hydraulic Trailer Brake Return
40	RE595919	1	Valve	320 Bar
41	RE596010	1	Chassis Wiring Harness	-
42	RE596139	1	Valve	-
43	RE596655	1	Oil Line	-
44	RE596656	1	Oil Line	Hydraulic Trailer Brake Load Sense
45	RE597088	1	Oil Line	Hydraulic Trailer Brakes Supply
46	RE597525	1	Line	Hydraulic Trailer Brakes Return to Valve
47	RE597526	1	Line	Hydraulic Trailer Brake Pilot to Valve
48	RE597527	1	Line	Hydraulic Trailer Brakes Supply to Valve
49	RE597528	1	Line	Hydraulic Trailer Brakes Load Sense to Valve
50	RE597543	1	Adapter Fitting	-
51	T77613	6	O-Ring	-
52	T77857	8	O-Ring	-
53	AT333807	1	Solenoid Valve Coil	-
54	L223021	1	Dust Shield	-
55	L223022	1	Dust Shield	-
56	R77175	2	Cover	-
57	57M9780	1	Elec. Connector Housing	Right Rear Brake Pressure, B255
57	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
58	57M9780	1	Elec. Connector Housing	Left Brake Pressure, B256
58	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
59	57M9780	1	Elec. Connector Housing	Secondary Brake Pressure, B260
59	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
60	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
60	57M9780	1	Elec. Connector Housing	Trailer Pre Brake Pressure, B265
61	RE584417	1	Pressure Sensor	Left Brake Pressure, INCLUDES 51M7041; B256
62	RE584417	1	Pressure Sensor	Secondary Brake Pressure, INCLUDES 51M7041; B260
63	RE584417	1	Pressure Sensor	Trailer Pre Brake Pressure, INCLUDES 51M7041; B265
64	57M8924	1	Elec. Connector Housing	Trailer Brake Off, Y708
64	RWA11097	1	Repair Wire Assembly	Cavity A, B
65	57M10517	1	Elec. Connector Housing	Secondary Brake, Y702
65	57M8022	1	Elec.Connect Locking Device	-
65	RWA11058	1	Repair Wire Assembly	Cavity 1, 2

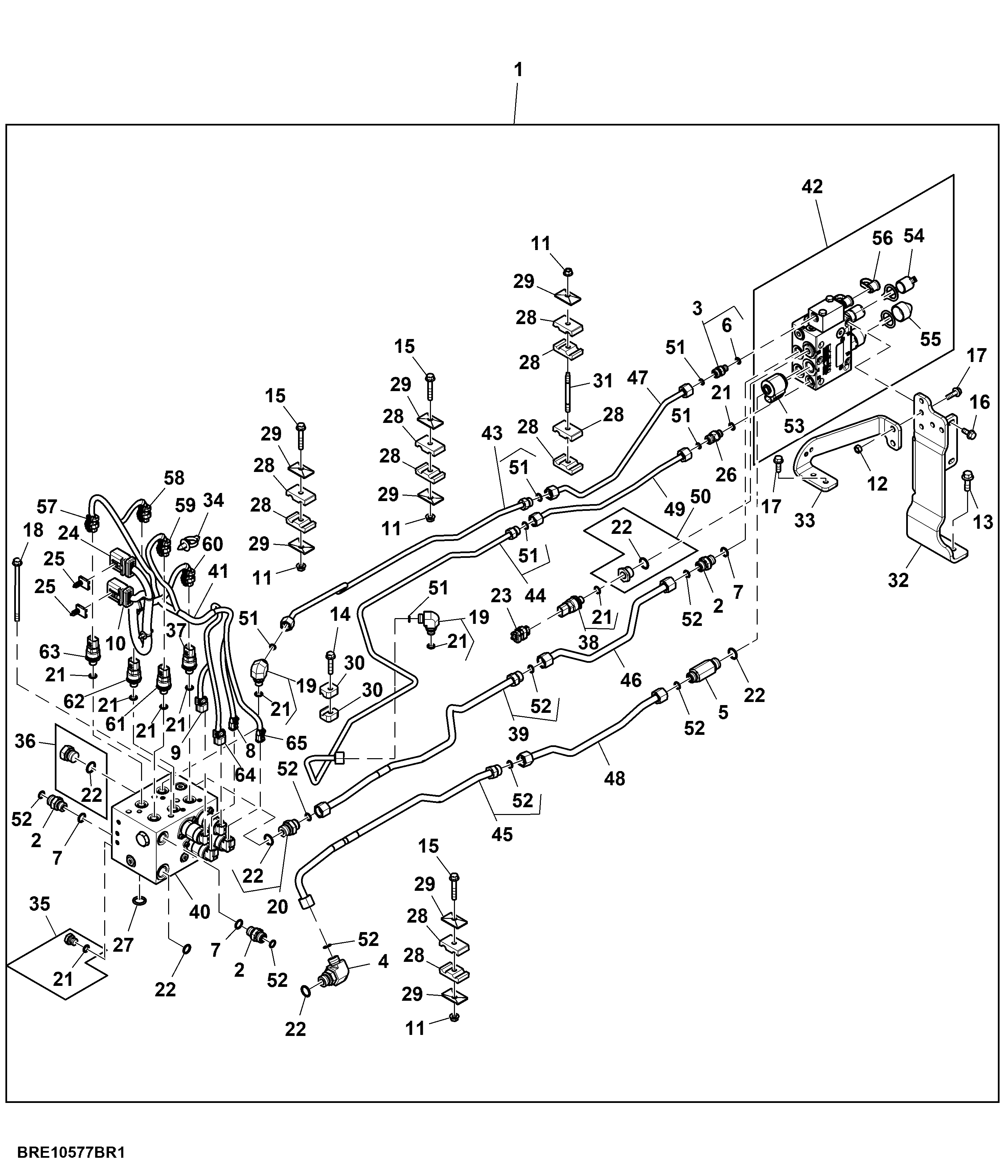

Hydraulic Trailer Brake Kit, (For EU/EAEU) (804001 - )
