Hydraulic Trailer Brake Kit, Auto Detect (802001 - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

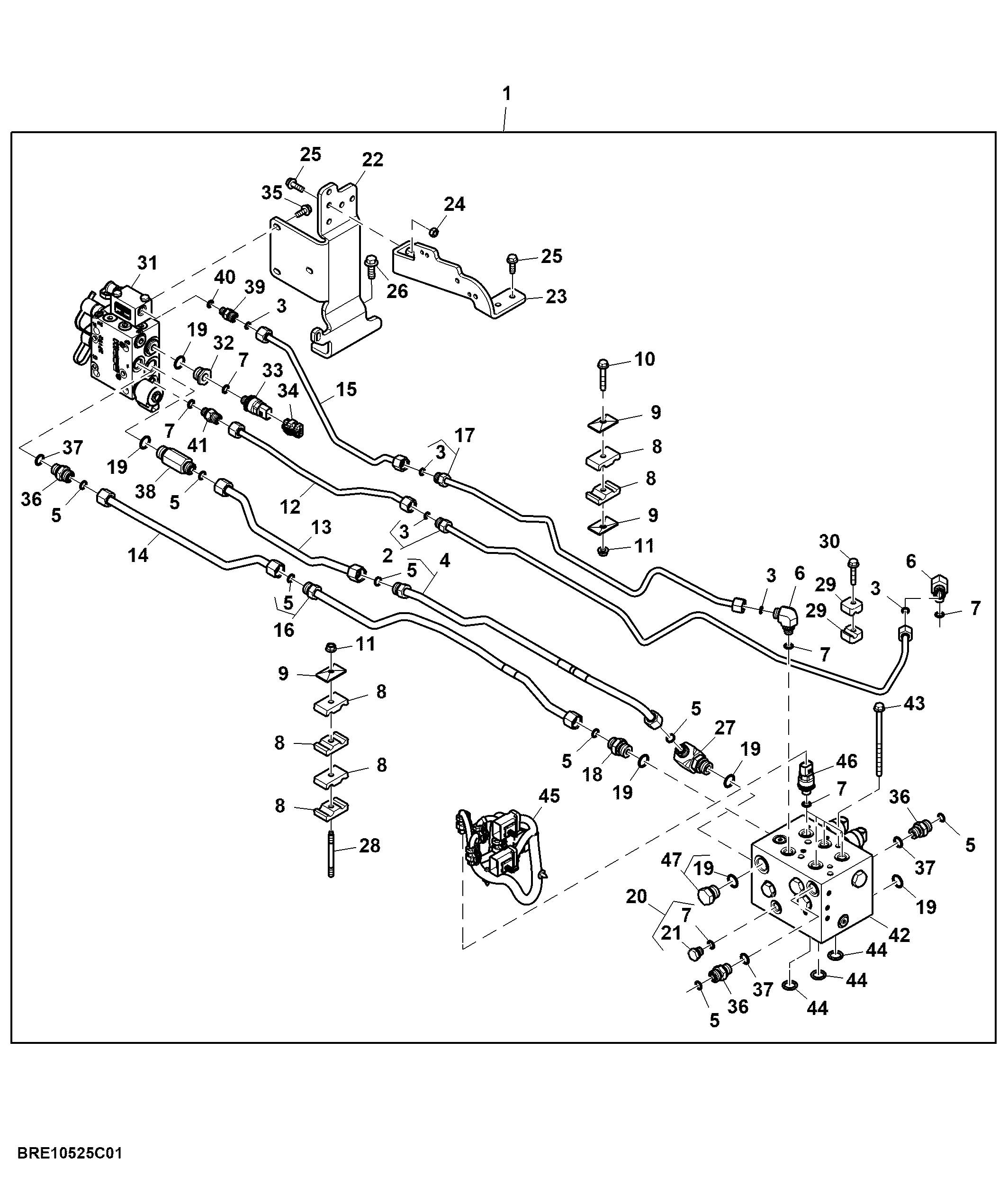

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10525	1	Valve	-
2	RE596656	1	Oil Line	Load Sense, INCLUDES T77613
3	T77613	6	O-Ring	-
4	RE597088	1	Oil Line	Supply, INCLUDES T77857
5	T77857	8	O-Ring	-
6	38H5016	2	Elbow Fitting	INCLUDES 51M7041
7	51M7041	9	O-Ring	11.300 X 2.200 mm
8	H108291	10	Clamp	-
9	H121168	7	Plate	-
10	19M7800	3	Screw	M8 X 50
11	14M7298	4	Flange Nut	M8
12	RE596668	1	Line	Load Sense
13	RE595877	1	Oil Line	Supply
14	RE595875	1	Line	Return
15	RE595876	1	Oil Line	Pilot
16	RE595879	1	Line	Return, INCLUDES T77857
17	RE596655	1	Oil Line	Pilot, INCLUDES T77613
18	38H5076	1	Adapter Fitting	INCLUDES 51M7045
19	51M7045	6	O-Ring	19.300 X 2.200 mm
20	RE46684	1	Fitting Plug	-
21	R107768	1	Drain Plug	-
22	R572135	1	Bracket	-
23	R572364	1	Bracket	-
24	14M7743	2	Nut	M8
25	19M7867	4	Screw	M8 X 25
26	19M7786	2	Screw	M10 X 30
27	38H5027	1	Elbow Fitting	-
28	R532487	1	Stud	-
29	H127589	2	Clamp	-
30	19M7798	1	Screw	M8 X 40
31	RE596139	1	Valve	Trailer Brake Valve
32	RE597543	1	Adapter Fitting	INCLUDES 51M7045
33	RE584419	1	Pressure Sensor	INCLUDES 51M7041
34	57M9780	1	Elec. Connector Housing	-
34	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
35	19M7866	3	Screw	M8 X 20
36	38H5003	3	Adapter Fitting	-
37	51M7043	3	O-Ring	15.300 X 2.200 mm
38	38H5240	1	Adapter Fitting	-
39	38H5008	1	Adapter Fitting	INCLUDES 51M7040
40	51M7040	1	O-Ring	9.300 X 2.200 mm
41	AT452599	1	Adapter Fitting	-
42	RE595919	1	Valve	Trailer Brake Valve
43	19M8125	3	Screw	M8 X 140
44	B2762R	3	O-Ring	-
45	RE596010	1	Chassis Wiring Harness	Combo Valve Jumper
46	RE584417	4	Pressure Sensor	INCLUDES 51M7041
47	RE46687	1	Drain Plug	-
