Headlights LED, W/O Front Hitch (For EU28+)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596149	1	Headlight	LH
2	RE596150	1	Headlight	RH
3	TR118473	1	Bracket	LH; SUB FOR RE596197
4	TR118471	1	Bracket	RH; SUB FOR RE596199
5	19M7866	4	Screw	M8 X 20
6	R297391	2	Screw	-
7	RE596168	1	Bracket	-
8	RE593798	2	Headlight	-
9	R571001	2	Mounting Parts	-
10	R571002	2	Spring Pin	-
11	R571003	2	Wiring Harness	-
12	R571004	2	Bulb	-
13	19M10931	2	Cap Screw	M10 X 80
14	14M7848	4	Lock Nut	M10
15	24M7299	2	Washer	10.500 X 30 X 2.500 mm
16	RE595515	1	Headlamp Wiring Harness	-
17	57M7255	1	Elec. Connector Housing	Left Low-Beam Driving Light, E324
17	57M7290	1	Elec. Connector Accessory	-
17	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
18	57M9789	1	Elec. Connector Housing	Front Chassis to Driving Light Extension Harness Interconnect, XX028-2
18	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
19	57M9939	1	Elec. Connector Accessory	-
20	57M11265	1	Elec. Connector Accessory	ORDER 57M15920
20	57M15920	1	Elec. Connector Accessory	-
21	57M7255	1	Elec. Connector Housing	Right Low-Beam Driving Light, E325
21	57M7290	1	Elec. Connector Accessory	-
21	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
22	57M8903	5	Clip	-
23	57M10362	2	Clamp	-
24	AH225363	1	Clip	-
25	RE258807	4	Tie Band	-

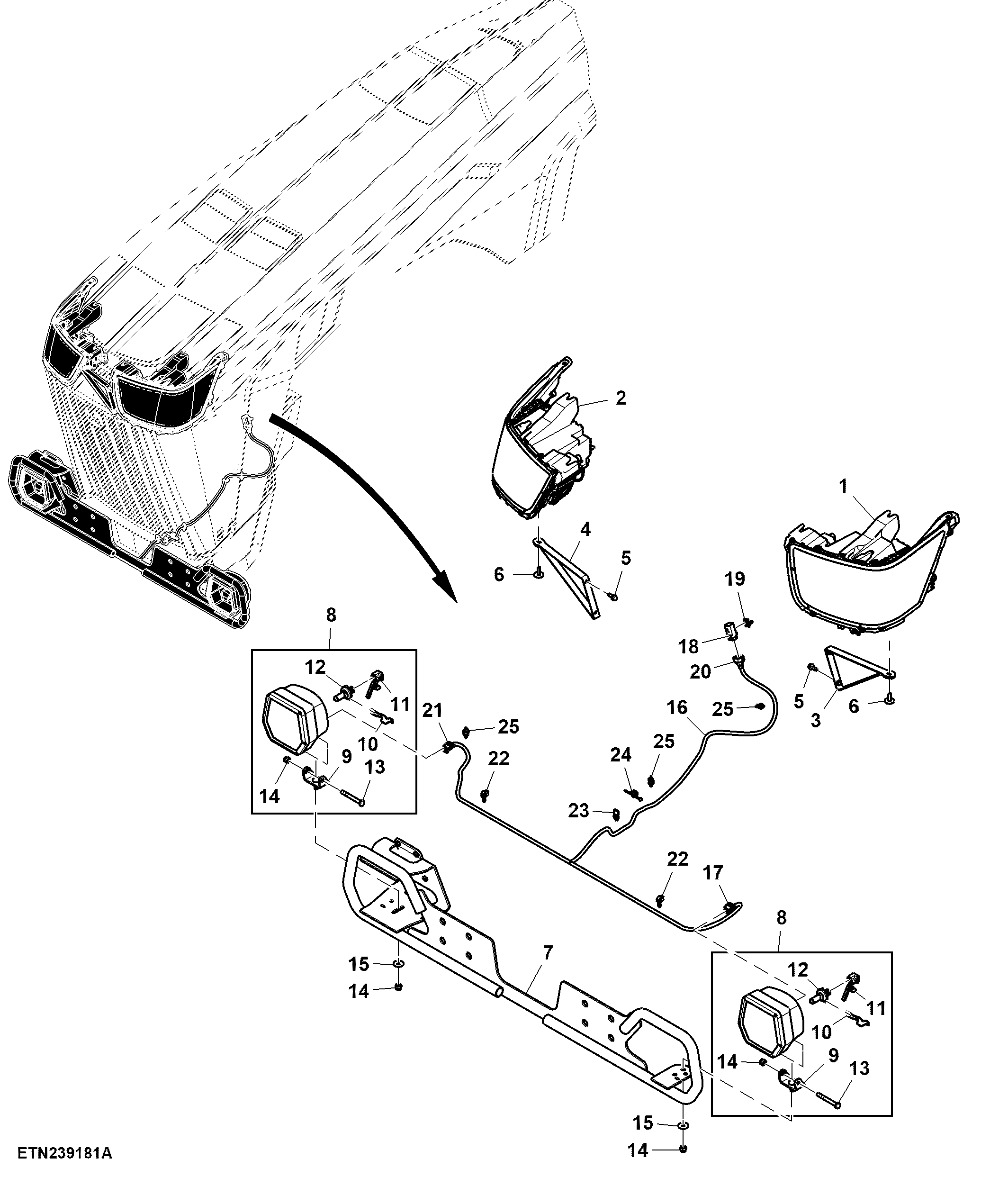

Headlights LED, W/O Front Hitch (For EU28+)
