Headlights LED, W/O Front Hitch (For EAEU)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

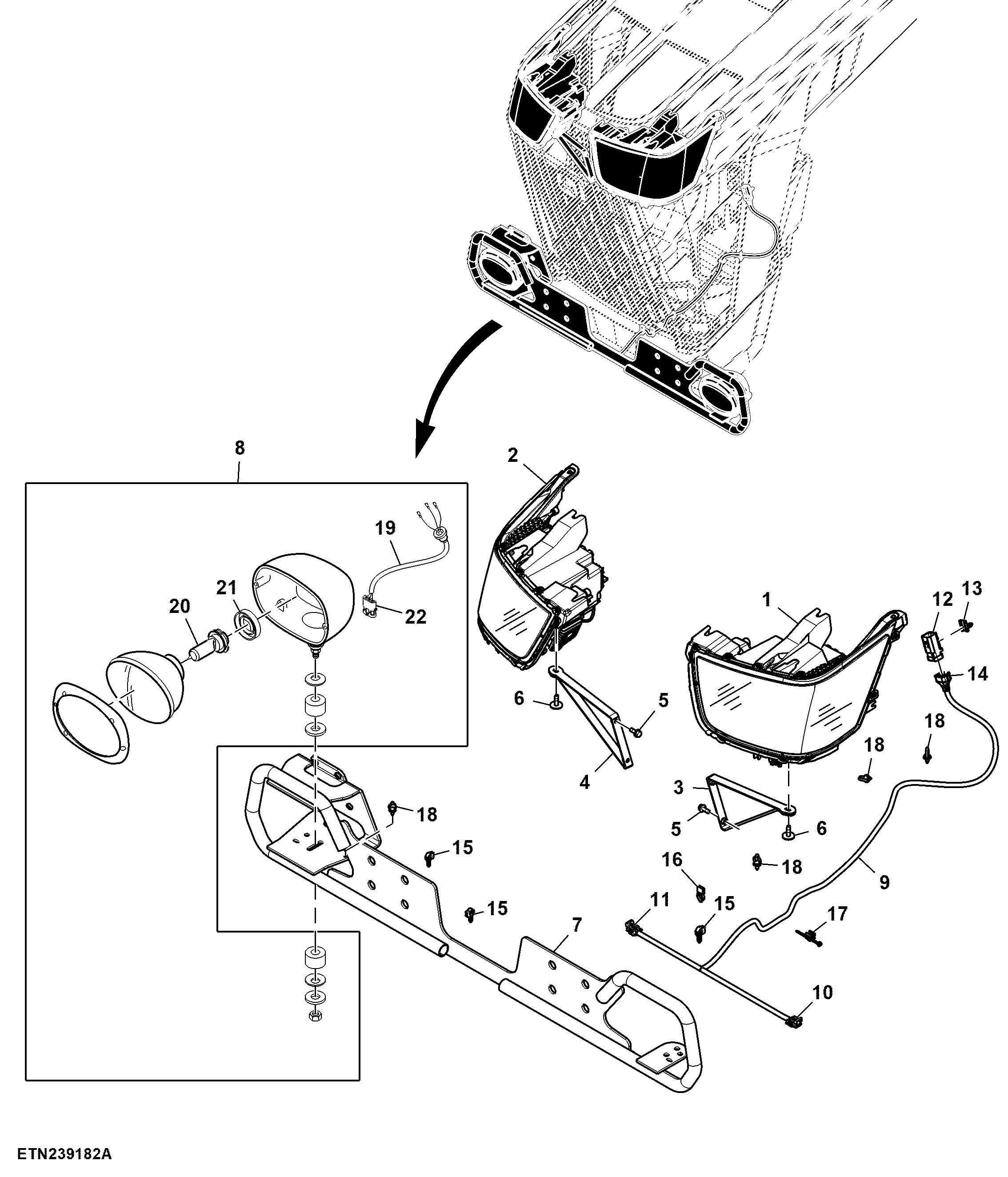

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596149	1	Headlight	LH
2	RE596150	1	Headlight	RH
3	TR118473	1	Bracket	LH; SUB FOR RE596197
4	TR118471	1	Bracket	RH; SUB FOR RE596199
5	19M7866	4	Screw	M8 X 20
6	R297391	2	Screw	-
7	RE596168	1	Bracket	-
8	RE229111	2	Headlight	-
9	RE596171	1	Headlamp Wiring Harness	-
10	57M7255	1	Elec. Connector Housing	Left Low-Beam Driving Light, E324
10	57M7290	1	Elec. Connector Accessory	-
10	RWA11083	1	Repair Wire Assembly	Cavity A, B
11	57M7255	1	Elec. Connector Housing	Right Low-Beam Driving Light, E325
11	57M7290	1	Elec. Connector Accessory	-
11	RWA11083	1	Repair Wire Assembly	Cavity A, B
12	57M9789	1	Elec. Connector Housing	Front Chassis to Driving Light Extension Harness Interconnect, XX028-2
12	RWA11025	1	Repair Wire Assembly	Cavity 1, 3, 4
13	57M9939	1	Elec. Connector Accessory	-
14	57M11265	1	Elec. Connector Accessory	ORDER 57M15920
14	57M15920	1	Elec. Connector Accessory	-
15	57M8903	5	Clip	-
16	57M10362	2	Clamp	-
17	AH225363	1	Clip	-
18	RE258807	4	Tie Band	-
19	RE229124	2	Headlamp Wiring Harness	-
20	57M7166	2	Bulb	12 V
21	L79050	2	Dust Shield	-
22	57M7257	1	Elec. Connector Housing	-
22	57M7290	1	Elec. Connector Accessory	-
22	RWA10714	1	Repair Wire Assembly	Cavity A, B, C

Headlights LED, W/O Front Hitch (For EAEU)

Нет текстового описания
