Открытый узел

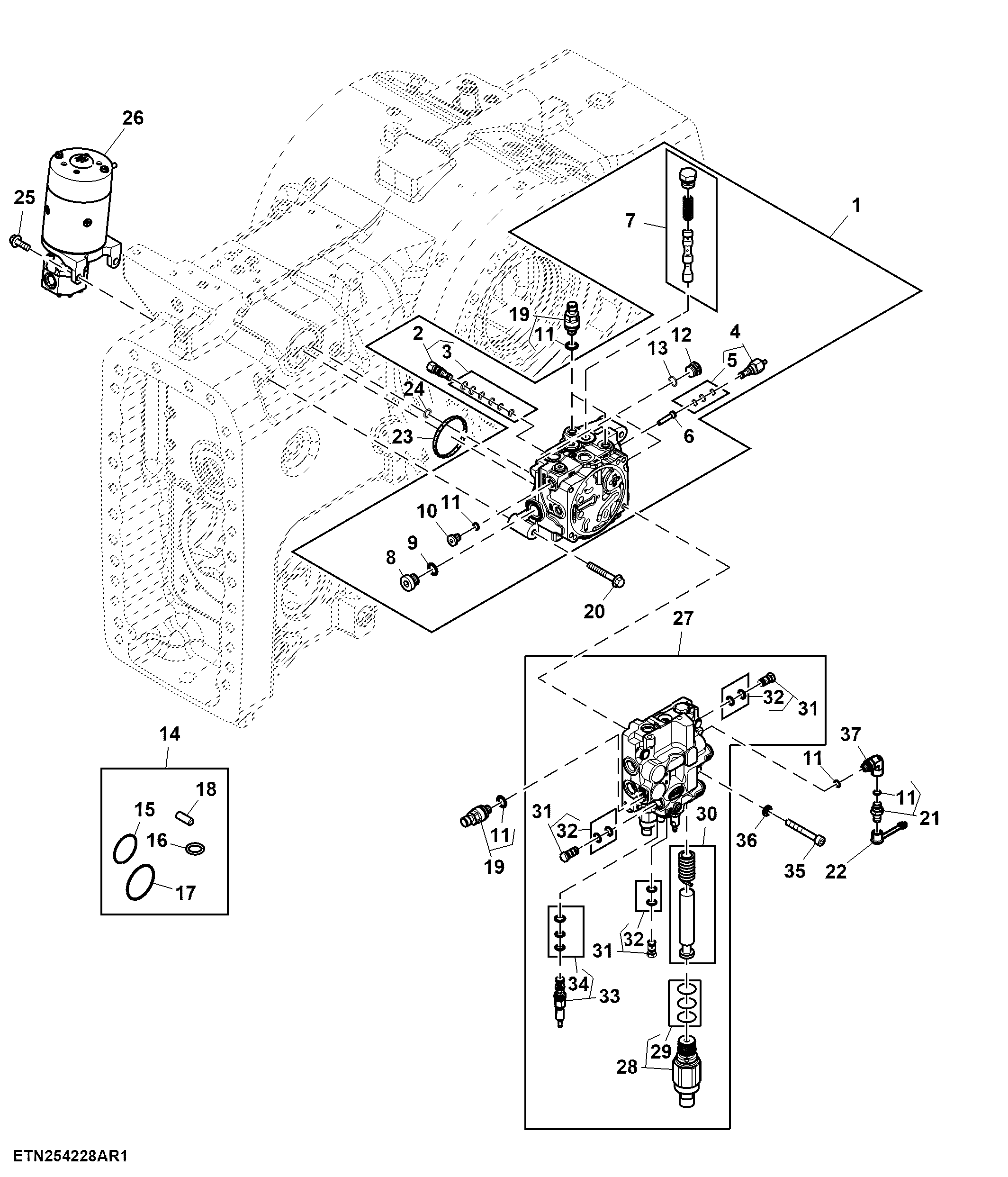

Control Valve, W/ ExactRate™ Tank (804001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE583800	1	Valve	-
2	AL203414	1	Valve Kit	Steering Load Sense Blocking Valve, V62, ORDER AL229995
2	AL229995	1	Valve Kit	-
3	AL203413	1	O-Ring Kit	-
4	RE337589	1	Valve	Steering Priority Load Sense Relief Valve, V103
5	RE557872	1	O-Ring Kit	-
6	RE571615	1	Filter	Steering Priority Load Sense Relief Valve Screen, F103
7	RE571616	1	Valve Spool	Priority Valve, V1
8	64M1022	1	Drain Plug	-
9	51M7047	1	O-Ring	23.600 X 2.900 mm
10	64M1017	1	Drain Plug	-
11	51M7041	6	O-Ring	11.300 X 2.200 mm
12	64M1021	1	Drain Plug	-
13	51M7045	1	O-Ring	19.300 X 2.200 mm
14	RE575260	1	Seal Kit	-
15	T78784	1	O-Ring	-
16	R274578	1	O-Ring	-
17	R99038	1	O-Ring	-
18	R159018	1	Dowel Pin	-
19	RE581544	3	Pressure Sensor	255 Bar Sensor
20	19M7809	3	Screw	M10 X 70
21	RE190805	1	Diagnostic Coupling	-
22	R77175	1	Cover	-
23	R564072	1	Sealing Ring	-
24	R158521	2	O-Ring	-
25	19M7786	2	Screw	M10 X 30
26	TA21014	1	Hydraulic Pump	Backup Hydraulic Pump
27	RE594314	1	Elec-Hyd Proportional Valve	AutoTrac™ Valve Section, V601
28	RE244397	1	Solenoid Valve	AutoTrac™ Enable Valve, V747
29	RE276475	1	Repair Kit	-
30	RE276485	1	Repair Kit	-
31	RE561827	3	Valve	-
32	RE564117	3	O-Ring Kit	-
33	RE561829	1	Valve	Park Brake Pressure Limiting Valve, V102
34	RE564118	1	O-Ring Kit	-
35	19M6876	4	Screw	M10 X 65
36	12H293	4	Lock Washer	7/16"
37	AL117978	1	Adapter Fitting	-

Control Valve, W/ ExactRate™ Tank (804001 - )

Нет текстового описания
