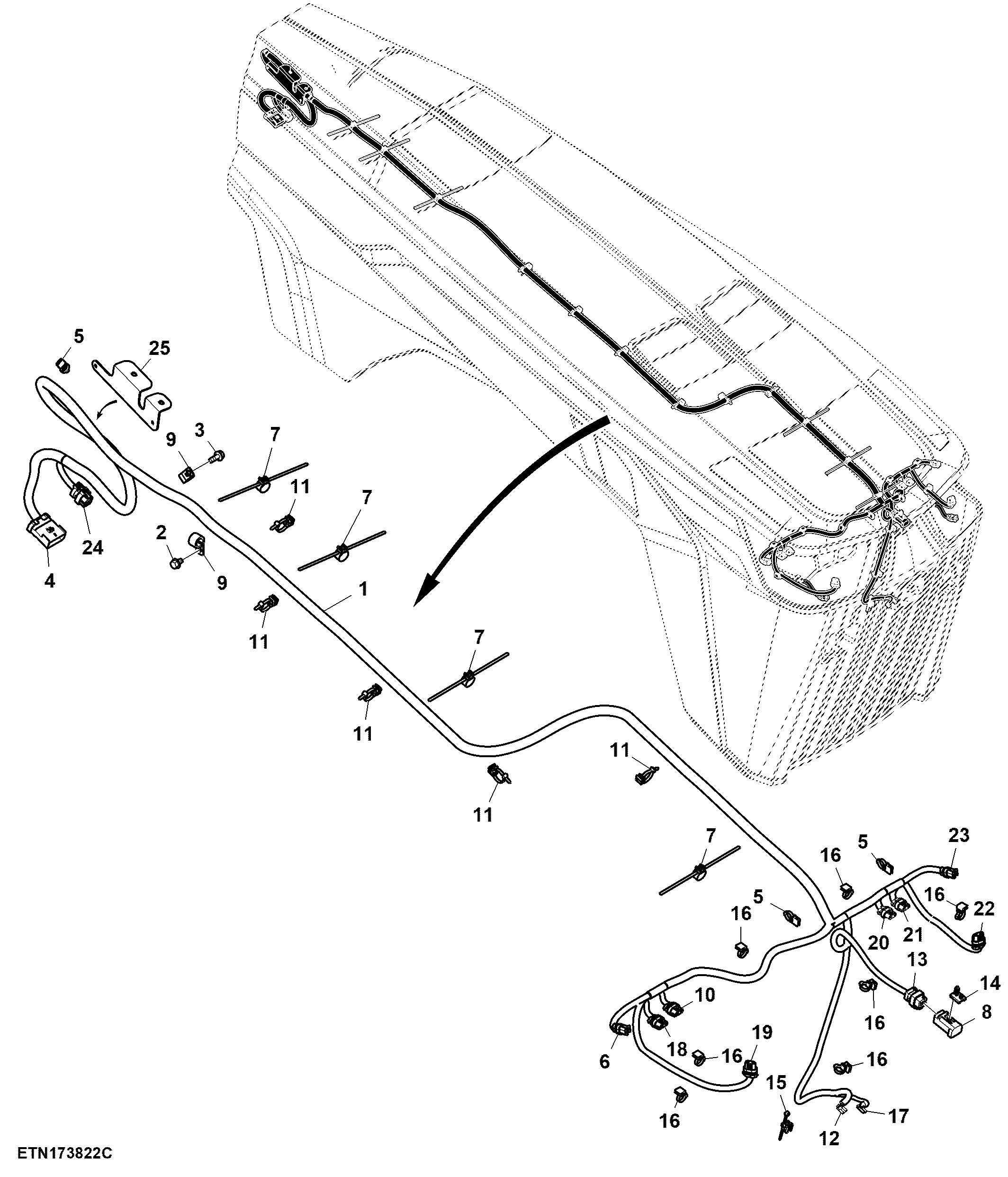

Wiring Harness, Hood, LED Lights

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596794	1	Chassis Wiring Harness	SUB FOR RE595514
2	19M7864	1	Screw	M8 X 12
3	19M7866	1	Screw	M8 X 20
4	57M10298	1	Elec. Connector Housing	Hood to Main Chassis Interconnect, XX180-2
4	RWA11136	1	Repair Wire Assembly	Cavity 1, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
5	57M10362	4	Clamp	-
6	57M10497	1	Elec. Connector Housing	DRL Right, E121-5
6	RWA11121	1	Repair Wire Assembly	Cavity 1, 2
7	57M10747	6	Elec. Connector Accessory	-
8	57M11336	1	Elec. Connector Accessory	-
9	57M13298	2	Clamp	-
10	57M8129	1	Elec. Connector Terminal	-
10	RWA11089	1	Repair Wire Assembly	Cavity B, A
10	57M8839	1	Elec. Connector Housing	Road Light Front Low Right, E121-6
11	57M9229	6	Clip	-
12	57M9238	1	Elec. Connector Terminal	Horn (+), B924-1
13	57M9786	1	Elec. Connector Housing	Front Camera, A992
13	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
14	57M9940	1	Elec. Connector Accessory	-
15	AH225363	1	Clip	-
16	AH225366	10	Clip	-
17	57M9238	1	Elec. Connector Terminal	Horn (-), B924-2
18	57M8129	1	Elec. Connector Terminal	-
18	RWA11089	1	Repair Wire Assembly	Cavity B, A
18	57M8839	1	Elec. Connector Housing	Road Light Front High Right, E121-2
19	57M8839	1	Elec. Connector Housing	Work Light Hood Right, E121-1
19	57M8129	1	Elec. Connector Terminal	-
19	RWA11089	1	Repair Wire Assembly	Cavity B, A
20	57M8839	1	Elec. Connector Housing	Road Light Front High Left, E120-2
20	57M8129	1	Elec. Connector Terminal	-
20	RWA11089	1	Repair Wire Assembly	Cavity B, A
21	57M8129	1	Elec. Connector Terminal	-
21	RWA11089	1	Repair Wire Assembly	Cavity B, A
21	57M8839	1	Elec. Connector Housing	Road Light Front Low Left, E120-6
22	57M8839	1	Elec. Connector Housing	Work Light Hood Left, E120-1
22	57M8129	1	Elec. Connector Terminal	-
22	RWA11089	1	Repair Wire Assembly	Cavity B, A
23	57M10497	1	Elec. Connector Housing	DRL Left, E120-5
23	RWA11121	1	Repair Wire Assembly	Cavity 1, 2
24	57M9786	1	Elec. Connector Housing	Front Camera Interconnect, XX941-2
24	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
25	R570554	1	Bracket	-
