Открытый узел

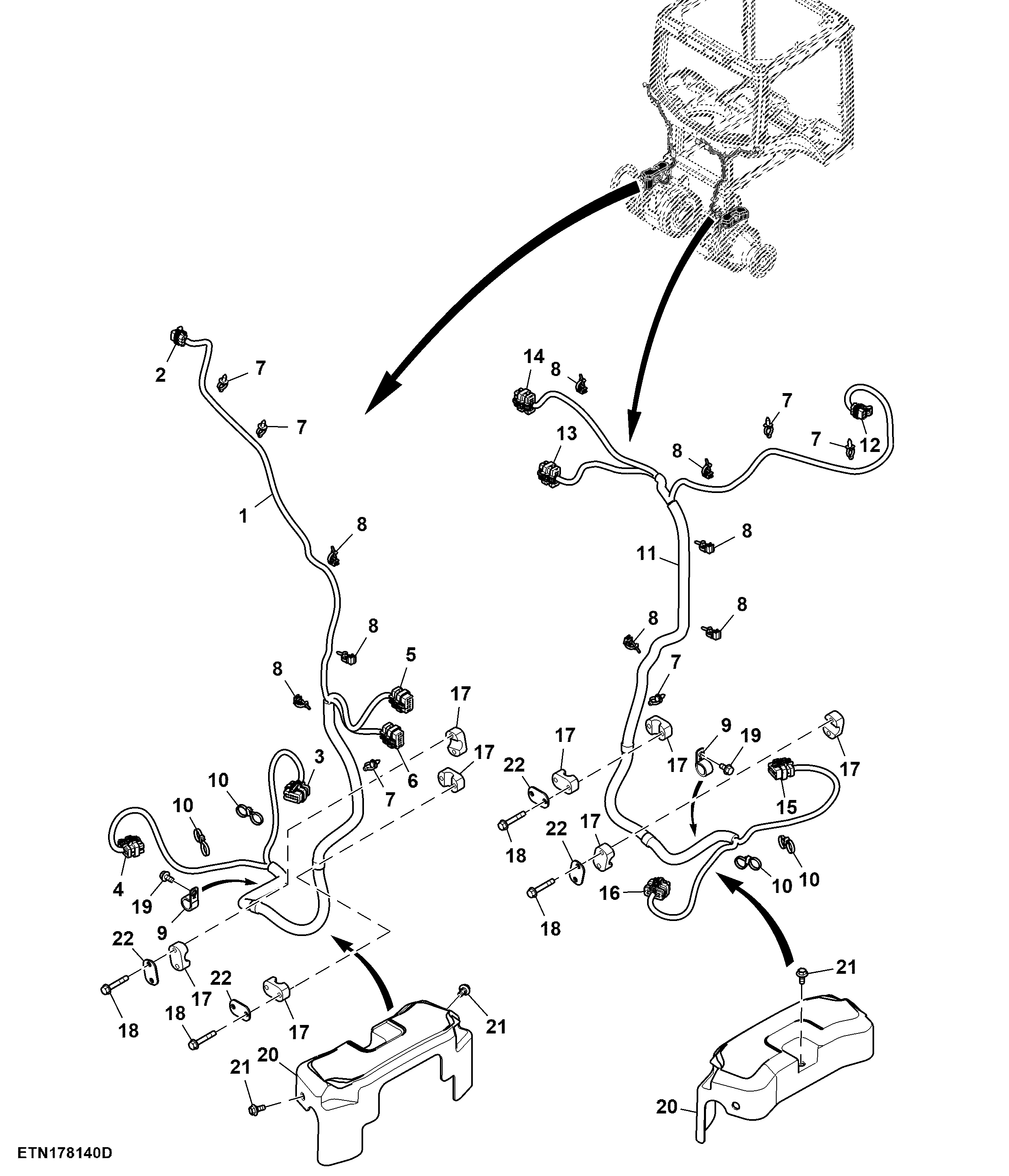

Wiring Harness, Fender Lights, 76" Axle Spacer

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20539	1	Wiring Harness	-
1	RE593500	1	Wiring Harness	ORDER TA20539; ALSO ORDER TA19465
2	57M7260	1	Elec. Connector Housing	Left Fender / Worklight Jumper Interconnect, X131A
2	57M7291	1	Electrical Connector Assy	-
2	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
3	57M9800	1	Elec. Connector Housing	Left Fender To Main Chassis Interconnect 1, XX119-2
3	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
4	57M9802	1	Elec. Connector Housing	Left Fender To Main Chassis Interconnect 2, XX109-2
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
5	57M9800	1	Elec. Connector Housing	Jumper To Left Fender Interconnect 1, XX719-1
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
6	57M9802	1	Elec. Connector Housing	Jumper To Left Fender Interconnect 2, XX709-1
6	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
7	RE258807	6	Tie Band	-
8	57M9229	9	Clip	-
9	57M13302	2	Clamp	-
10	57M10421	4	Elec. Connector Accessory	-
11	TA20540	1	Wiring Harness	-
11	RE593546	1	Wiring Harness	ORDER TA20540; ALSO ORDER TA19465
12	57M7260	1	Elec. Connector Housing	Right Fender / Worklight Jumper Interconnect, X133A
12	57M7291	1	Electrical Connector Assy	-
12	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
13	57M9800	1	Elec. Connector Housing	Right Fender To Main Chassis Interconnect 1, XX118-2
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
14	57M9802	1	Elec. Connector Housing	Right Fender To Main Chassis Interconnect 2, XX108-2
14	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
15	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
15	57M9800	1	Elec. Connector Housing	Jumper To Right Fender Interconnect 1, XX718-1
16	57M9802	1	Elec. Connector Housing	Jumper To Right Fender Interconnect 2, XX708-1
16	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
17	H114876	8	Clamp	-
18	19M7800	8	Screw	M8 X 50
19	19M7865	2	Screw	M8 X 16
20	R568881	2	Fender	-
21	R314966	6	Bolt	-
22	R572241	4	Plate	-

Wiring Harness, Fender Lights, 76" Axle Spacer

Нет текстового описания
