Открытый узел

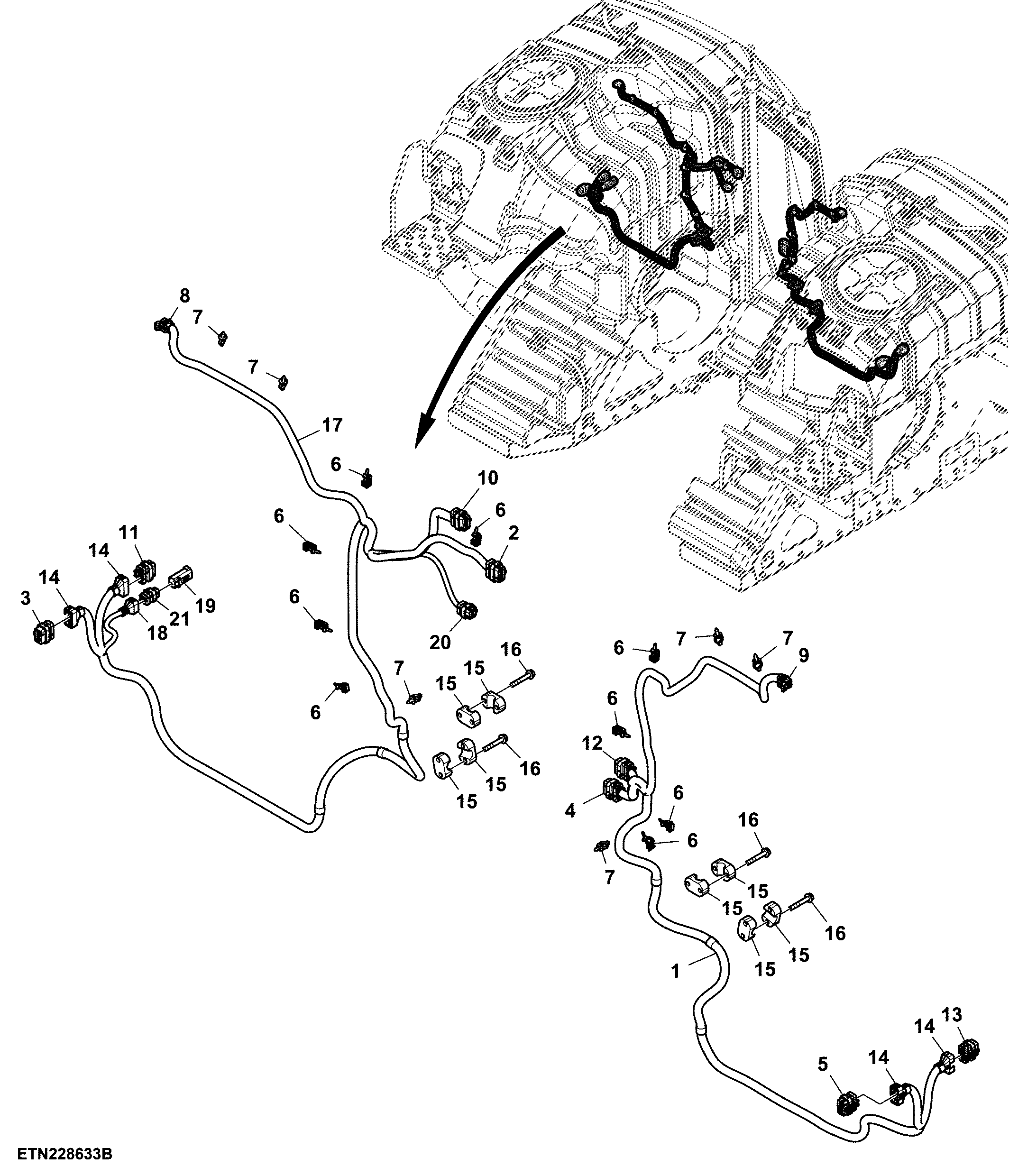

Wiring Harness, ExactRate™ Tank (804001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE596248	1	Wiring Harness	-
2	57M9802	1	Elec. Connector Housing	Right Fender To Main Chassis Interconnect, XX108-2
2	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
3	57M9802	1	Elec. Connector Housing	Jumper to Right Fender Interconnect, XX708-1
3	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
4	57M9802	1	Elec. Connector Housing	Left Fender to Main Chassis Interconnect, XX109-2
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
5	57M9802	1	Elec. Connector Housing	Jumper to Left Fender Interconnect, XX709-1
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
6	57M9229	9	Clip	-
7	RE258807	10	Tie Band	-
8	57M7260	1	Elec. Connector Housing	Right Fender / Worklight Jumper Interconnect, X133A
8	57M7291	1	Electrical Connector Assy	-
8	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
9	57M7260	1	Elec. Connector Housing	Left Fender / Worklight Jumper Interconnect, X131A
9	57M7291	1	Electrical Connector Assy	-
10	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
10	57M9800	1	Elec. Connector Housing	Right Fender to Main Chassis Interconnect, XX118-2
11	57M9800	1	Elec. Connector Housing	Jumper to Right Fender Interconnect, XX718-1
11	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
12	57M9800	1	Elec. Connector Housing	Left Fender to Main Chassis Interconnect, XX119-2
12	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
13	57M9800	1	Elec. Connector Housing	Jumper to Left Fender Interconnect, XX719-1
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
14	57M9844	4	Elec. Connector Accessory	-
15	H114876	8	Clamp	-
16	19M7800	8	Screw	M8 X 50
17	RE597352	1	Wiring Harness	-
18	57M9839	1	Elec. Connector Accessory	-
19	57M11335	1	Elec. Connector Accessory	-
20	57M9787	1	Elec. Connector Housing	Right Ymax Fender to Main Chassis Interconnect, XX138-2
20	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
21	57M9817	1	Elec. Connector Housing	Jumper to Right Ymax Fender Interconnect, XX728-1
21	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4

Wiring Harness, ExactRate™ Tank (804001 - )

Нет текстового описания
