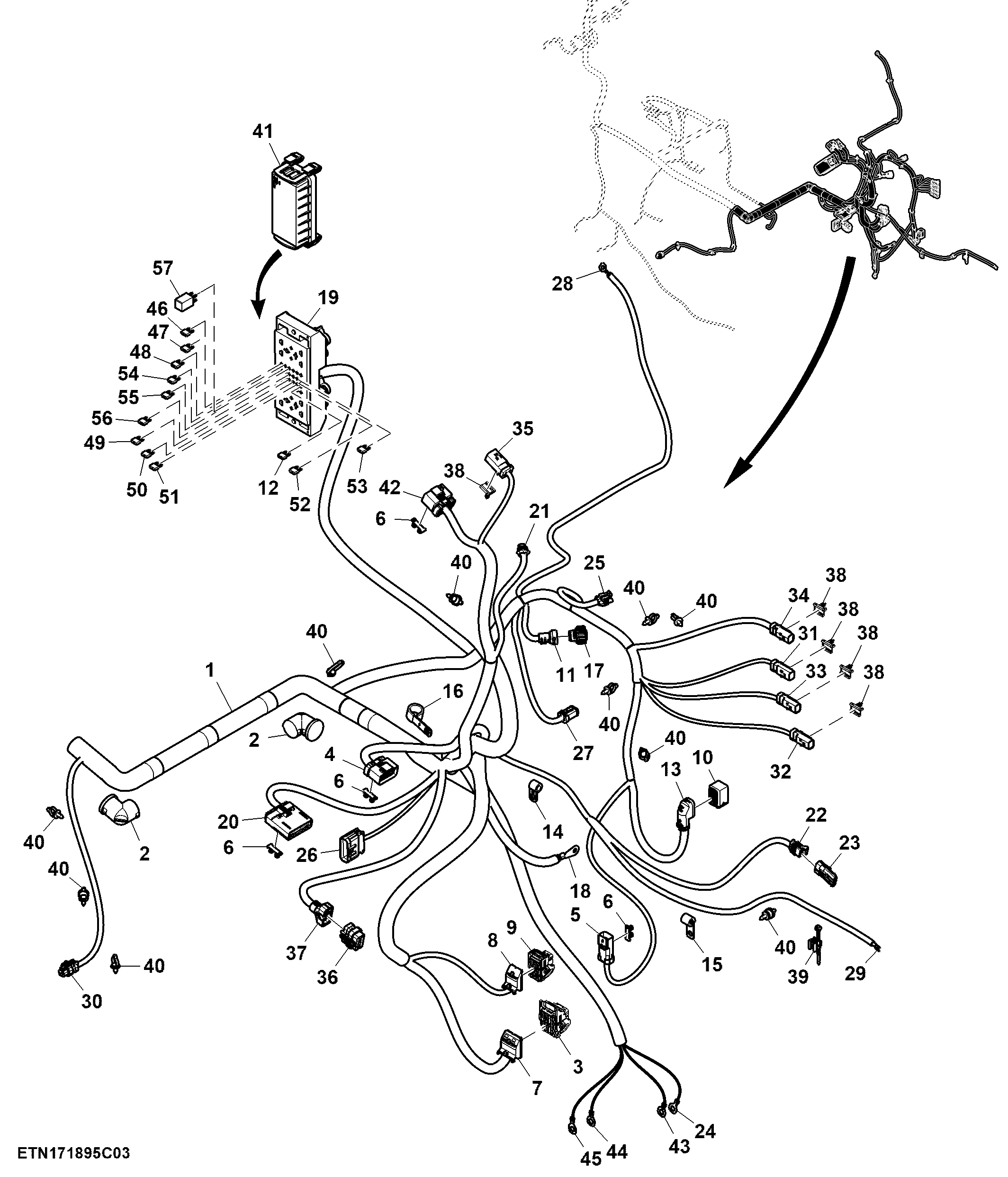

Wiring Harness, Chassis, FT4 / Stage 5 Engine (3/3) ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE595477	1	Chassis Wiring Harness	-
2	57M10192	2	Elec. Connector Accessory	-
3	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 13, 14, 21, 22, 23, 24, 25, 26, 32, 34, 35, 36, 37, 38, 39, 40, 45
3	RWA11032	1	Repair Wire Assembly	Cavity 6, 18, 29, 30, 41, 42, 53
3	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
3	57M10214	1	Elec. Connector Housing	A570-2, Cab Controller J2
4	57M10297	1	Elec. Connector Housing	XX180-1, Hood To Main Interconnect
4	57M11374	1	Elec. Connector Accessory	-
4	RWA11137	1	Repair Wire Assembly	Cavity 1, 3, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
5	57M10302	1	Elec. Connector Housing	XX570-1, Fuse Link (Relay) Module
5	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 5, 6
6	57M10308	4	Elec. Connector Accessory	-
7	57M10401	1	Elec. Connector Accessory	-
8	57M10613	1	Elec. Connector Housing	-
9	57M10615	1	Elec. Connector Housing	A570-1, Cab Controller - J1
9	RWA11030	1	Repair Wire Assembly	Cavity A1, A3, B1, B2, B3, B4, C1, C2, D1, D2, D4, E2, E4, F1, F2, F4, G1, G2, G4, H1, H2, H3, J3, J4, K1, K2
9	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L4, M1, M3, M4
10	57M10958	1	Elec. Connector Housing	B5501, SCR Supply Module
10	RWA11044	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 8, 9, 11, 12, 10
11	57M11120	1	Elec. Connector Accessory	-
12	57M7623	1	Fuse	60 A, FE30, Implement ECU Power Relay
13	57M11439	1	Elec. Connector Accessory	-
14	57M12128	1	Clamp	-
15	57M12138	1	Clamp	-
16	57M12139	2	Clamp	-
17	RWA11105	1	Repair Wire Assembly	Cavity 1, 4
17	57M13137	1	Elec. Connector Housing	Y5019, DEF Coolant Control Module
18	57M14406	1	Elec. Connector Terminal	KSW2-OUT, Alternator
19	57M14559	1	Elec. Connector Housing	FEXX, Front Load Center
19	RWA11045	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 19, 35, 36, 41, 42, 47, 48, 20, 21, 22
19	57M10375	4	Elec. Connector Terminal	Cavity 63, 64, 65, 66
19	57M15435	4	Elec. Connector Seal	Cavity 63, 64, 65, 66
20	57M14634	1	Elec. Connector Housing	XX184-2, Main To Engine (DEF)
20	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 11, 12, 13, 14, 23, 24
20	RWA11144	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, 21, 22
21	RWA11083	1	Repair Wire Assembly	Cavity A, B
21	57M11891	1	Elec. Connector Accessory	-
21	57M7254	1	Elec. Connector Housing	B5009, Coolant Level Loss
22	57M7255	1	Elec. Connector Housing	X289, Diagnostic Pressure 1
22	57M7290	1	Elec. Connector Accessory	-
22	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
23	57M7257	1	Elec. Connector Housing	X289_A, X289 Cap
23	57M7290	1	Elec. Connector Accessory	-
24	57M7567	1	Elec. Connector Terminal	XGND2D, Single Pt Grnd_1
25	57M7687	1	Elec. Connector Housing	S130, Service Light Switch
25	RWA11083	1	Repair Wire Assembly	Cavity A, C
26	57M8281	1	Elec. Connector Housing	XX330-1, Transmission Interconnect
26	RWA11103	1	Repair Wire Assembly	Cavity A
26	RWA11098	1	Repair Wire Assembly	Cavity B, C, D, E, K, L, M, N, P, R, A
26	57M11407	1	Elec. Connector Accessory	-
26	57M11996	1	Elec. Connector Accessory	-
27	57M8016	1	Elec.Connect Locking Device	-
27	RWA11116	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
27	57M8635	1	Elec. Connector Housing	B5506, DEF Quality Sensor
28	57M8871	1	Elec. Connector Terminal	XGND3, Fuel Filler Neck Grnd
29	57M8937	1	Elec. Connector Terminal	M301-3, Starter Solenoid
30	57M9772	1	Elec. Connector Housing	B692, Fuel Level
30	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
31	57M9776	1	Elec. Connector Housing	XX189-1, DEF Heater - Suction Line E5606 And E502
31	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
32	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
32	57M9777	1	Elec. Connector Housing	E5601, DEF Heater - Pressure Line
33	57M9778	1	Elec. Connector Housing	E5603, DEF Heater - Return Line
33	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
34	57M9779	1	Elec. Connector Housing	E502, Battery Indicator Light
34	RWA11025	1	Repair Wire Assembly	Cavity 1, 2
35	57M9789	1	Elec. Connector Housing	XX941-1, Chassis To Hood Interconnect 2
35	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
36	57M9800	1	Elec. Connector Housing	XX181-1_MFWD, Front Harness To Main Interconnect MFWD
36	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
37	57M9844	1	Elec. Connector Accessory	-
38	57M9940	5	Elec. Connector Accessory	-
39	AH225363	1	Clip	-
40	RE258807	17	Tie Band	-
41	RE594063	1	Elec. Connector Accessory	-
42	57M10297	1	Elec. Connector Housing	XX182-1, Main To Engine Interconnect
42	57M11374	1	Elec. Connector Accessory	-
42	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
43	57M7567	1	Elec. Connector Terminal	XGND2A, Single Point Ground
44	57M7567	1	Elec. Connector Terminal	XGND2B, Single Point Ground
45	57M7567	1	Elec. Connector Terminal	XGND2C1, Single Point Ground
46	57M7689	1	Fuse	10 A, FE07, Key Switch (Alt)
47	57M7689	1	Fuse	10 A, FE28, Rear 2
48	57M7689	1	Fuse	10 A, FE10, Front Chassis Controller
49	57M8623	1	Fuse	25 A, FE01, ECU Power
50	57M8623	1	Fuse	25 A, FE02, ECU Power
51	57M8623	1	Fuse	25 A, FE03, ECU Power
52	57M8623	1	Fuse	25 A, FE09, Front Chassis Control
53	57M7623	1	Fuse	60 A, FE100, Implement Power Fuse
54	57M7690	1	Fuse	15 A, FE05, Fuel Transfer Pump
55	57M7690	1	Fuse	15 A, FE08, SBBA, SBBC
56	57M7690	1	Fuse	15 A, FE14, Fuse Auto-Ether
57	SJ15808	1	Relay	20 A, KE14, Relay Auto-Ether
