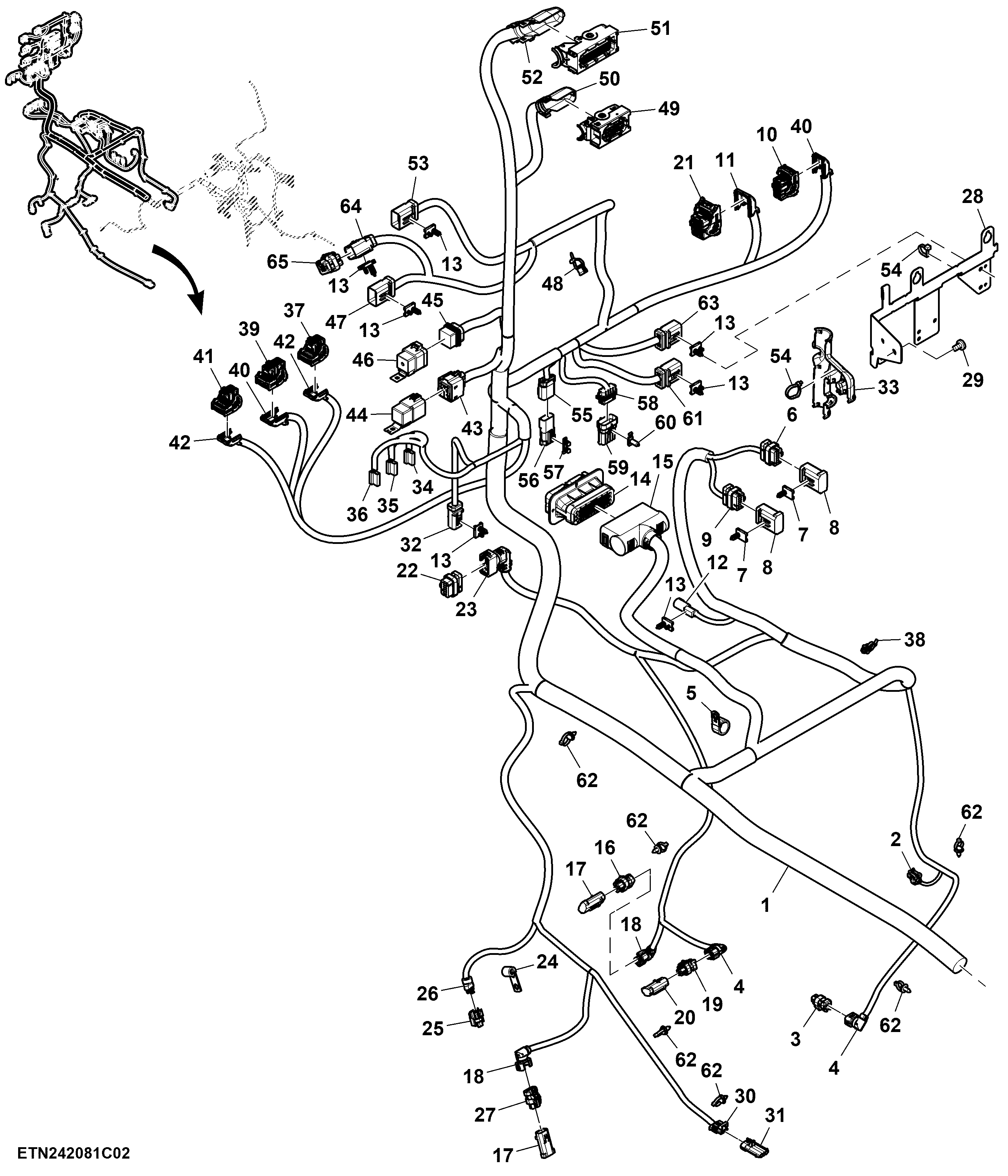

Wiring Harness, Chassis, FT4 / Stage 5 Engine (2/3) (804001 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE598194	1	Chassis Wiring Harness	-
2	57M8625	1	Elec. Connector Housing	Hydraulic Oil Filter Restriction Sensor, B552
2	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
2	57M8624	1	Elec.Connect Locking Device	-
3	57M9773	1	Elec. Connector Housing	Hydraulic Oil Temperature Sensor, B694
3	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
4	57M10155	2	Elec. Connector Accessory	-
5	57M12124	1	Clamp	-
6	57M9800	1	Elec. Connector Housing	Combo Valve Interconnect, XX058
6	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
7	57M9939	2	Elec. Connector Accessory	-
8	57M11338	2	Elec. Connector Accessory	-
9	57M9802	1	Elec. Connector Housing	Chassis to Air Trailer Brake and Secondary Brake Harness Interconnect, XX059-1
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
10	57M10615	1	Elec. Connector Housing	MECA- Cab Controller J1, A107-1
10	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, C2, C3, D2, D4, E1, E2, E3, E4, F3, F4, G1, G3, G4, H3, H4, J3, J4
10	RWA11032	1	Repair Wire Assembly	Cavity L2, M1, M2, M3, M4
11	57M10401	1	Elec. Connector Accessory	-
12	57M7761	1	Elec. Connector Housing	Main to Rear Chassis Implement Power, XX186-1
12	57M7613	1	Elec. Connector Terminal	Cavity 1
13	57M9940	7	Elec. Connector Accessory	-
14	57M14781	1	Elec. Connector Housing	Main to Rear Interconnect, XX183-1
14	RWA11129	1	Repair Wire Assembly	Cavity G1, G3, G2, A2, A1
14	RWA11127	1	Repair Wire Assembly	Cavity F12, F11, F10, F7, E12, E11, E10, E6, E5, E4, E3, E2, E1, D11, D10, D9, D5, D4, C11, C10, C9, C8, C7, D3, D2, D1, C4, C3, C2, C12, D8, C1, B11, D7, D6, B8, B6, B5, B4, B3, B2
15	57M13948	1	Elec. Connector Accessory	-
16	57M9780	1	Elec. Connector Housing	Sensor Oil Presence Diff Case, B555
16	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
17	57M11334	2	Elec. Connector Accessory	-
18	57M10156	2	Elec. Connector Accessory	-
19	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
19	57M9775	1	Elec. Connector Housing	Rear PTO Speed, B696
20	57M11333	1	Elec. Connector Accessory	-
21	57M10329	1	Elec. Connector Housing	MECA - Cab Controller J3, A107-3
21	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
21	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
21	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
22	57M9800	1	Elec. Connector Housing	HSSV Jumper, XX980-1
22	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
23	57M14990	1	Elec. Connector Accessory	-
24	57M12138	1	Clamp	-
25	57M8924	1	Elec. Connector Housing	Rear PTO Solenoid, Y500
25	RWA11097	1	Repair Wire Assembly	Cavity B, A
26	57M11380	1	Elec. Connector Accessory	-
27	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
27	57M9780	1	Elec. Connector Housing	Hydraulic Charge Pump Pressure Sensor, B717 ; SUB FOR 57M12655
28	-	1	Part 46	ORDER RE598194
29	21M7400	2	Screw	M6 X 10
30	57M7255	1	Elec. Connector Housing	Transmission/ Chassis To Radar Harness Interconnect, XX201-1
30	57M7290	1	Elec. Connector Accessory	-
30	RWA11083	1	Repair Wire Assembly	Cavity A, C
31	57M7257	1	Elec. Connector Housing	-
31	57M7290	1	Elec. Connector Accessory	-
32	57M9821	1	Elec. Connector Housing	Front Camera, XX141-2
32	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
33	-	1	Part 55	ORDER RE598194
34	57M7144	1	Elec. Connector Housing	Front Washer Pump, M01
34	RWA11076	1	Repair Wire Assembly	Cavity B, A
35	57M7144	1	Elec. Connector Housing	Rear Washer Pump, M02
35	RWA11076	1	Repair Wire Assembly	Cavity B, A
36	57M7144	1	Elec. Connector Housing	Right Washer Pump, M03
36	RWA11076	1	Repair Wire Assembly	Cavity A, B
37	57M10605	1	Elec. Connector Housing	Steering Controller J1, A980-1
37	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C4, D4, E2, E4, F2, F4
37	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H3, H4
38	57M13016	1	Elec. Connector Accessory	-
39	57M10614	1	Elec. Connector Housing	Steering Controller J2, A980-2
39	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B2, B4, C3, C4, D3, E1, E2, E3, F1, F2, F4, G1, G2, G3, G4, H1, H2, H4, J1, J2, J3, J4, K1, K2, K3
39	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
40	57M10613	2	Elec. Connector Housing	-
41	57M10611	1	Elec. Connector Housing	Steering Controller J3, A980-3
41	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B2, B4, C3, C4, D3, E1, E2, E3, F1, F2, F4, G1, G2, G3, G4, H1, H2, H4, J1, J2, J3, J4, K1, K2, K3
41	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
42	57M10604	2	Elec. Connector Housing	-
43	57M8233	1	Electrical Connector Assy	Implement Power Relay, KE100
43	RWA11174	1	Repair Wire Assembly	Cavity 2, 1
43	57M10213	1	Elec. Connector Cable Seal	Cavity 3, 5
43	57M10210	1	Elec. Connector Terminal	Cavity 3, 5
44	AL156697	1	Relay	-
45	57M7555	1	Elec. Connector Housing	Implement ECU Relay, KE1
45	RWA11166	1	Repair Wire Assembly	Cavity 1, 4
45	RWA11093	1	Repair Wire Assembly	Cavity 2, 5
46	57M12655	1	Elec. Connector Accessory	-
47	57M9804	1	Elec. Connector Housing	Main Chassis to Right Fender Interconnect, XX118-1
47	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
48	57M10747	3	Elec. Connector Accessory	-
49	RWA11045	1	Repair Wire Assembly	Cavity 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
49	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 11, 12, 13, 14
49	57M13340	1	Elec. Connector Housing	Chassis to Cab Interconnect 2, XX501-1
50	57M13343	1	Elec. Connector Accessory	-
51	57M8730	1	Elec. Connector Housing	Chassis to Cab Interconnect, XX500-1
51	RWA11042	1	Repair Wire Assembly	Cavity 8, 11, 21, 22, 1, 2, 3, 4, 5, 7, 14, 34, 35, 30, 12, 43, 44, 26, 27, 28, 29, 38, 39, 41, 56
51	RWA11045	1	Repair Wire Assembly	Cavity 61
52	57M8738	1	Elec. Connector Accessory	-
53	57M9825	1	Elec. Connector Housing	Main Chassis to Right Fender Interconnect, XX108-1
53	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
54	R44302	10	Tie Band	-
55	57M10303	1	Elec. Connector Housing	Chassis to Trailer Brake, XX208-1
55	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
56	57M10304	1	Elec. Connector Housing	-
57	57M10308	1	Elec. Connector Accessory	-
58	57M7262	1	Elec. Connector Housing	Conn_Option_Rear, X116
58	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
58	CB01489384	1	Elec. Connector Accessory	Quality Sensor
59	57M9213	1	Elec. Connector Housing	-
59	57M12072	1	Elec. Connector Accessory	DEF Tank Coolant Control Valve
60	57M8910	1	Clip	-
61	57M9825	1	Elec. Connector Housing	Main Chassis to Left Fender Interconnect 1, XX109-1
61	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
62	RE258807	27	Tie Band	-
63	57M9804	1	Elec. Connector Housing	Left Rear Fender Light Interconnect 1, XX119-1
63	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
64	57M9790	1	Elec. Connector Housing	Main Chassis To Right Fender Interconnect 3, XX138-1
64	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
65	57M9787	1	Elec. Connector Housing	XX138-1_CAP
