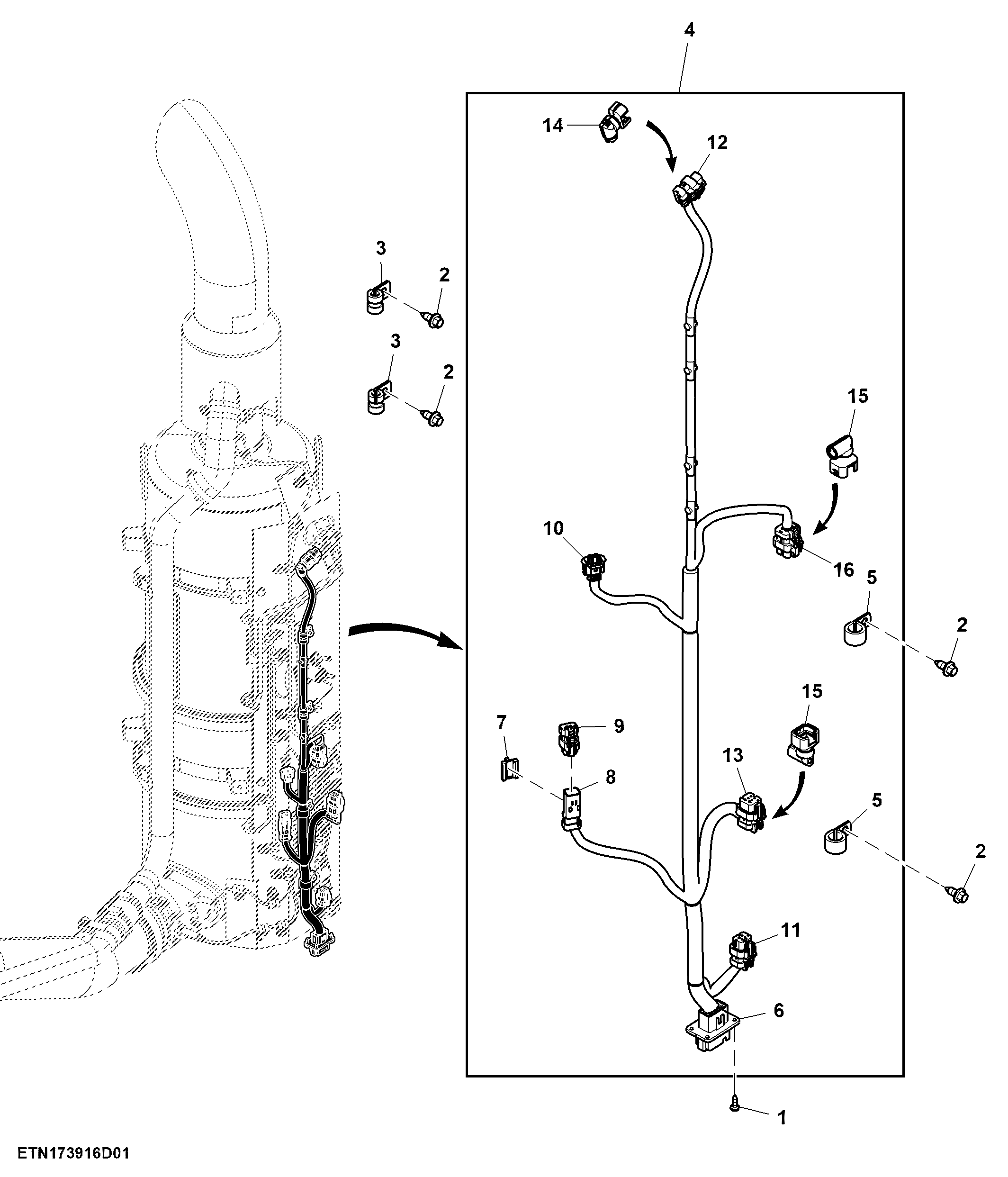

Wiring Harness, Aftertreatment Device ( - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7185	4	Screw	-
2	GX22456	4	Screw	-
3	T269643	2	Clamp	-
4	RE595502	1	Chassis Wiring Harness	-
5	57M13298	2	Clamp	-
6	57M9228	1	Elec. Connector Housing	ATD/ Engine Chassis Interconnect, XX003-2
6	57M7682	1	Elec.Connect Locking Device	-
6	RWA11056	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
7	57M9940	1	Elec. Connector Accessory	-
8	57M9776	1	Elec. Connector Housing	CAN Termination Resistor, A916
8	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
9	57M11134	1	Elec. Connector Housing	-
10	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve, Y5020
10	RWA11132	1	Repair Wire Assembly	Cavity 1, 2
11	57M9817	1	Elec. Connector Housing	After Treatment Temperature Module, B5204
11	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
12	57M9780	1	Elec. Connector Housing	DPF Delta Pressure, B5109
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M9787	1	Elec. Connector Housing	Aftertreatment Outlet NOx Sensor, B5503
13	RWA11027	1	Repair Wire Assembly	Cavity 1, 4, 5, 6
14	57M10156	1	Elec. Connector Accessory	-
15	57M10230	2	Elec. Connector Accessory	-
16	57M9787	1	Elec. Connector Housing	Aftertreatment Inlet NOx Sensor, B5502
16	RWA11027	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6

Wiring Harness, Aftertreatment Device ( - 804000)
