Открытый узел

Selective Control Valve, 6 Rear SCV, Standard Flow, W/ Hitch

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574941	1	Cover	Number I, Green, SCV Coupler
2	RE574660	1	Cover	Number II, Blue, SCV Coupler
3	RE574942	1	Cover	Number III, Brown, SCV Coupler
4	RE574943	1	Cover	Number IV, Black, SCV Coupler
5	RE574944	1	Cover	Number V, Violet, SCV Coupler
6	RE574945	1	Cover	Number VI, Gray, SCV Coupler
7	T122075	2	O-Ring	-
8	42M7062	1	Stud	-
9	14M7275	2	Nut	M12
10	24M7240	2	Washer	13 X 25 X 3 mm
11	L169038	1	Stud	-
12	RE583785	1	Oil Line	SCV Load Sense
13	38H5025	1	Elbow Fitting	-
14	51M7041	5	O-Ring	11.300 X 2.200 mm
15	T77814	1	O-Ring	-
16	R10093	20	O-Ring	-
17	RE588380	1	Selective Control Valve	Hitch Control Valve Unit (HV1), V800
17	TA20343	1	Selective Control Valve	Hitch Control Valve Unit (HV1), V800
18	RE271469	1	Manifold	INCLUDES (2) RE190805 AND (2) R77175
19	RE46684	1	Fitting Plug	-
20	RE304819	1	Stud Kit	-
21	14M7327	3	Lock Nut	M8
22	24M7095	27	Washer	8.400 X 15 X 1.600 mm
23	R266977	24	Socket Head Screw	-
24	RE260570	1	Manifold	-
25	RE588375	6	Selective Control Valve	140 LPM
25	TA20348	6	Selective Control Valve	140 LPM
26	R77175	3	Cover	-
27	RE283453	1	Manifold	-
28	RE190805	3	Diagnostic Coupling	-
29	RE559659	1	Breakaway Coupler	Low Profile
30	19M7798	1	Screw	M8 X 40
31	RE559660	3	Breakaway Coupler	Mid Profile
32	RE559661	2	Breakaway Coupler	High Profile
33	R267667	2	Cap	-
34	R267668	2	Hose Fitting	-
35	RE272882	10	Tube	Drain
36	H127589	2	Clamp	-
37	RE597480	1	Oil Line	SCV Load Sense, Auto-Detect, ORDER RE597882
37	RE597882	1	Oil Line	SCV Load Sense, Auto-Detect
38	R107768	1	Drain Plug	-

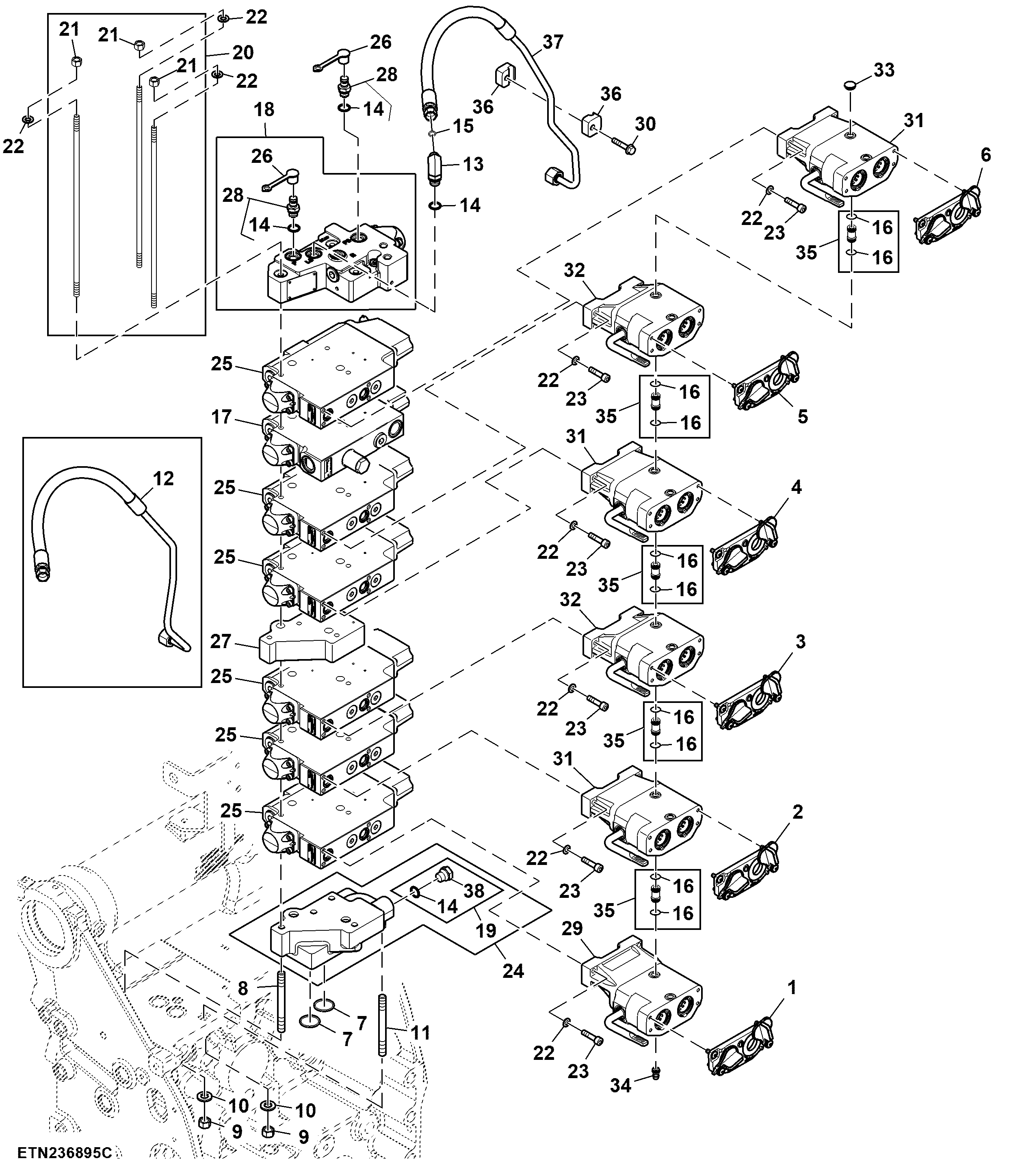

Selective Control Valve, 6 Rear SCV, Standard Flow, W/ Hitch
