Открытый узел

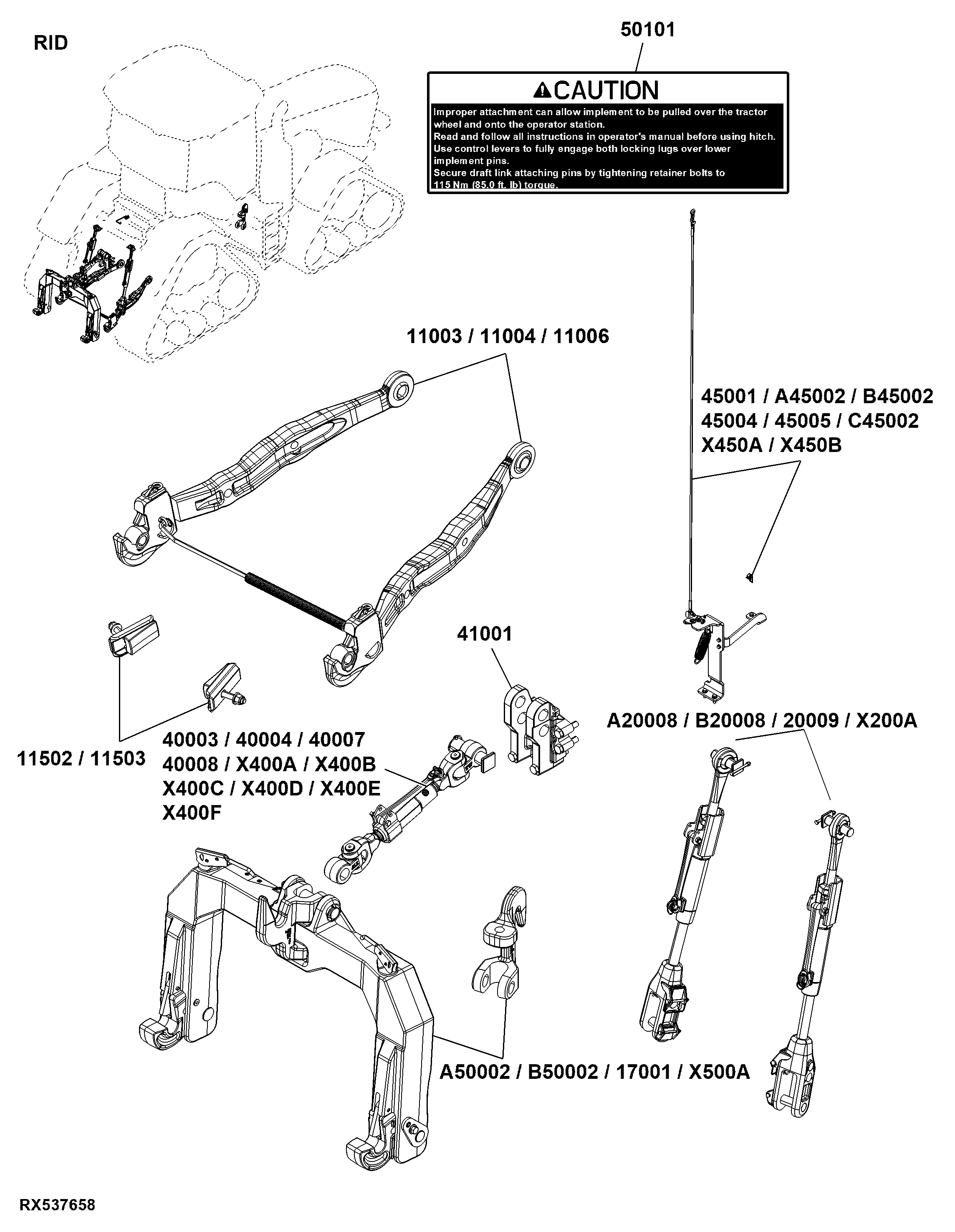

RID Center Link / Draft Link / Lift Link

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Lift Link, Heavy Duty, Category 3/4N, W/ Quick Coupler and Hydraulic Center Link (804001 - )	-
-	-	1	Holder, Hydraulic Center Link, W/ Hydraulic Trailer Brake, W/ Ball or Hook Ends (802001 - )	-
-	-	1	Holder, Hydraulic Center Link, W/O Hydraulic Trailer Brake, W/ Ball or Hook Ends (802001 - 804000)	-
-	-	1	Holder, Standard Center Link, W/ Ball or Hook Ends	-
-	-	1	Holder, Standard Link, W/ Back Up Alarm	-
-	-	1	Hydraulic Center Yoke Link End, Category 4, Attachment	-
-	-	1	Joint Kit, Hydraulic Center Link	-
-	-	1	Label, Safety, Quick Coupler	-
-	-	1	Lift Link, Heavy Duty Hitch, W/ Double Pivoted Top Ends (RH Illustrated) (804001 - )	-
-	-	1	Holder, Hydraulic Center Link, W/ Ball or Hook Ends ( - 802000)	-
-	-	1	Lift Link, Standard Duty Hitch, W/ Hook End, W/ Quick Coupler (804001 - )	-
-	-	1	Long Length Lift Link, W/ Hook End, W/ Quick Coupler ( - 804000)	-
-	-	1	Pin Kit, Non-Heavy Duty Hitch	-
-	-	1	Quick Coupler, Category 3/4N	-
-	-	1	Quick Coupler, Category 3/4N	-
-	-	1	Quick Coupler, Category 4N/3, Attachment	-
-	-	1	Seal Kit, Hydraulic Center Link	-
-	-	1	Upper Hook, Quick Coupler, Category 4N/ 3 (804001 - )	-
-	-	1	Center Link, Standard, Hitch W/ Hook Ends, Category 3/4N	-
-	-	1	Attachment, Rear Hydraulic Center Link W/ Pivot End, 120 mm	-
-	-	1	Attachment, Rear Hydraulic Center Link, W/ Hook End and Storage Bracket, 120 mm	-
-	-	1	Attachment, Rear Hydraulic Center Link, W/ Hook End and Storage Bracket, 90 mm	-
-	-	1	Bracket, Center Link Mounting, Tall	-
-	-	1	Bumper Blocks, W/ Hook End and Wedge Blocks	-
-	-	1	Bumper Blocks, W/ Quick Coupler and Wedge Blocks	-
-	-	1	Center Link, Hydraulic, Hitch W/ Hook Ends, Category 3/4N	-
-	-	1	Center Link, Hydraulic, Hitch W/ Quick Coupler, Category 3/4N	-
-	-	1	Attachment, Rear Hydraulic Center Link W/ Ball End, 90 mm	-
-	-	1	Center Link, Standard, Hitch W/ Quick Coupler, Category 3/4N	-
-	-	1	Draft Link, W/ Ball End or Quick Coupler Hitch, W/ Wedge Blocks, Category 3/4N	-
-	-	1	Draft Link, W/ Hook End and Stabilizers, Category 3/4N	-
-	-	1	Draft Link, W/ Hook End and Wedge Blocks, Category 3/4N	-
-	-	1	Easy guide Hydraulic Center Link Storage Bracket, Attachment (802001 - )	-
-	-	1	Easy Guide Hydraulic Center Link Storage Bracket, Kit	-
-	-	1	Holder, Center Link, W/ Hydraulic Trailer Brake, W/ Ball or Hook Ends (804001 - )	-

RID Center Link / Draft Link / Lift Link

Нет текстового описания
