Открытый узел

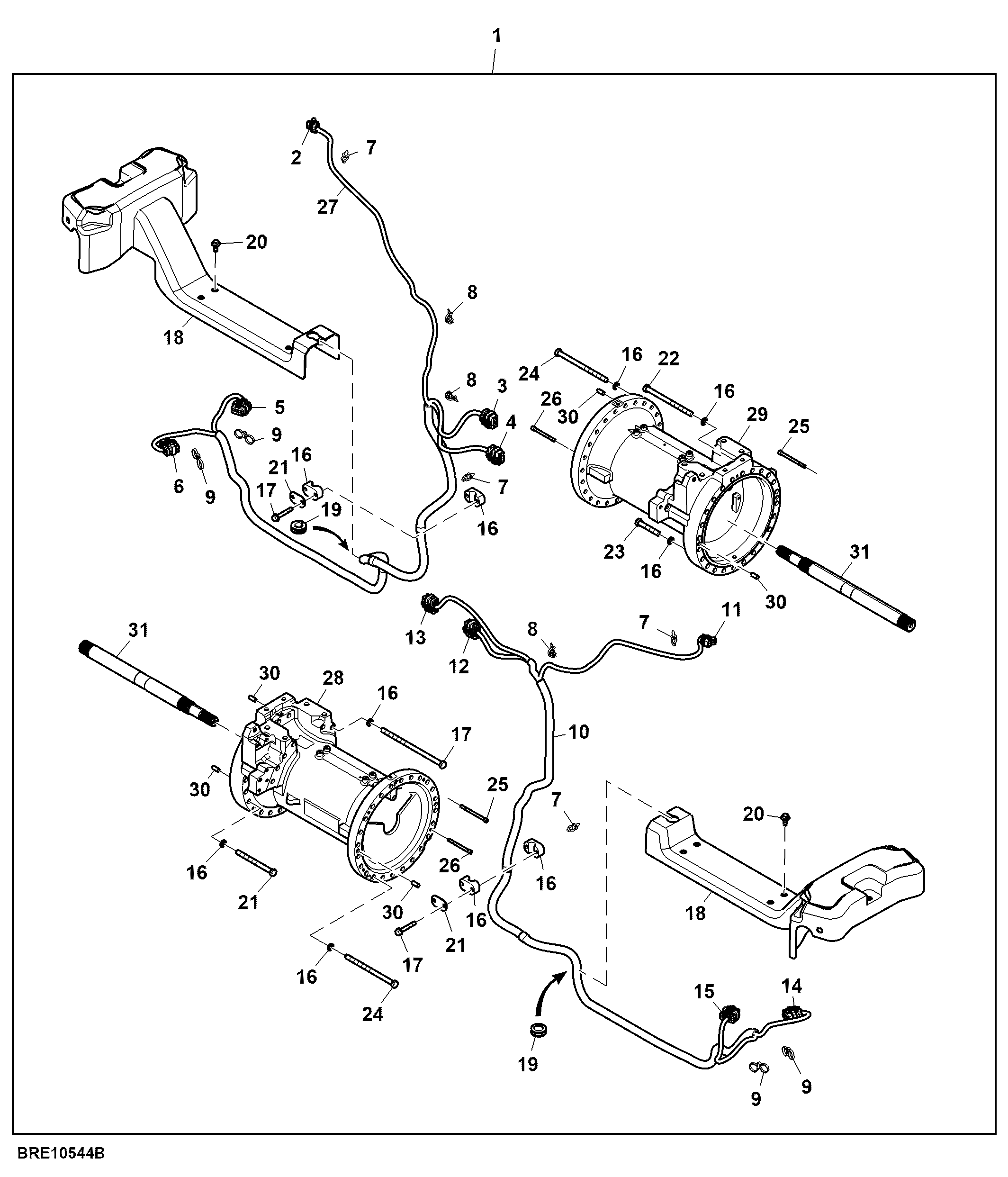

Rear Axle, 120 Inch Tread Spacing, Spacer Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BRE10544	1	Spacer	-
2	57M7260	1	Elec. Connector Housing	X131A, Left Fender / Worklight Jumper Interconnect
2	57M7291	1	Electrical Connector Assy	-
2	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
3	57M9800	1	Elec. Connector Housing	XX119-2, Left Fender To Main Chassis Interconnect 1
3	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
4	57M9802	1	Elec. Connector Housing	XX109-2, Left Fender To Main Chassis Interconnect 2
4	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
5	57M9800	1	Elec. Connector Housing	XX719-1, Jumper To Left Fender Interconnect 1
5	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
6	57M9802	1	Elec. Connector Housing	XX709-1, Jumper To Left Fender Interconnect 2
6	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
7	RE258807	6	Tie Band	-
8	57M9229	9	Clip	-
9	57M10421	4	Elec. Connector Accessory	-
10	RE593549	1	Wiring Harness	-
11	57M7260	1	Elec. Connector Housing	X133A, Right Fender / Worklight Jumper Interconnect
11	57M7291	1	Electrical Connector Assy	-
11	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, F
12	57M9800	1	Elec. Connector Housing	XX118-2, Right Fender To Main Chassis Interconnect 1
12	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
13	57M9802	1	Elec. Connector Housing	XX108-2, Right Fender To Main Chassis Interconnect 2
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
14	57M9800	1	Elec. Connector Housing	XX718-1, Jumper To Right Fender Interconnect 1
14	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
15	57M9802	1	Elec. Connector Housing	XX708-1, Jumper To Right Fender Interconnect 2
15	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11
16	24M7547	48	Washer	21 X 34 X 3 mm
17	R565042	6	Cap Screw	-
18	R568882	2	Fender	-
19	R194198	2	Grommet	-
20	R314966	8	Bolt	-
21	19M9934	18	Cap Screw	M20 X 220
22	19M9155	6	Cap Screw	M20 X 280
23	19M9137	18	Cap Screw	M20 X 120
24	R565135	48	Cap Screw	-
25	R565054	8	Cap Screw	-
26	R565131	8	Cap Screw	-
27	RE593503	1	Wiring Harness	-
28	RE598041	1	Housing	-
29	RE598042	1	Housing	-
30	R54380	8	Dowel Pin	-
31	R567275	2	Shaft	-

Rear Axle, 120 Inch Tread Spacing, Spacer Kit

Нет текстового описания
