Pneumatic Trailer Brake Assembly (2/2) ( - 802000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE588383	1	Line	ATB Valve To Supply Coupler
2	RE583780	1	Oil Line	Leak Detection Valve To Control Coupler
3	RE583782	1	Oil Line	ATB Valve To Control Coupler
4	RE583784	1	Oil Line	Part Control Valve To Trailer
5	RE583783	1	Oil Line	Air Tank To Park Control Valve
6	RE585927	1	Oil Line	Reservoir To Leak Detection Valve
7	H108291	4	Clamp	-
8	H121168	3	Plate	-
9	19M7799	1	Screw	M8 X 45
10	RE578876	1	Control Valve	Leak Detection Valve
11	RE580114	1	Fitting	-
12	RE573255	2	Adapter Fitting	-
13	SJ31574	1	Pneumatic Pressure Valve	Air Trailer Brake Control Valve, V70
14	RE584614	1	Control Valve	Air Trailer Park Valve
15	RE244485	2	Fitting	-
16	14M7425	2	Nut	M27
17	AL68572	1	Hitch Coupling	Hose Coupling Yellow
18	AL68571	1	Hitch Coupling	Hose Coupling Red
19	RE595440	1	Oil Line	ATB Pilot
20	38H5503	1	Adapter Fitting	-
21	T77613	10	O-Ring	-
22	51M7041	8	O-Ring	11.300 X 2.200 mm
23	RE592540	1	Oil Line	Reservoir To Leak Detection Valve
24	57M7254	1	Elec. Connector Housing	Air Trailer Brake Solenoid, Y664
24	57M9712	1	Elec. Connector Accessory	-
24	RWA11083	1	Repair Wire Assembly	Cavity A, B
25	T77932	1	O-Ring	-
26	14M7298	6	Flange Nut	M8
27	SJ32943	1	Fitting Plug	-
28	51M7040	2	O-Ring	9.300 X 2.200 mm
29	RE584414	2	Pressure Sensor	-
30	19M7800	3	Screw	M8 X 50
31	38H5257	1	Adapter Fitting	-
32	T77857	1	O-Ring	-
33	03M7498	2	Bolt	M8 X 55
34	AT444950	1	Adapter Fitting	-
35	03M7188	1	Bolt	M8 X 40
36	38H5016	2	Elbow Fitting	INCLUDES 51M7041
37	03M7305	2	Bolt	M8 X 70
38	38H5002	1	Adapter Fitting	-
39	57M9780	1	Elec. Connector Housing	Yellow Coupler Pressure Sensor, B770
39	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
40	AL117978	1	Adapter Fitting	-
41	RE190805	1	Diagnostic Coupling	INCLUDES 51M7041
42	R77175	1	Cover	-
43	RE579720	1	Adapter Fitting	INCLUDES T77613
44	38H5035	1	Elbow Fitting	-
45	51M7042	2	O-Ring	13.300 X 2.200 mm
46	38H5061	1	Tee Fitting	-
47	RE595431	1	Oil Line	ATB Valve Inlet, INCLUDES T77613
48	57M9804	1	Elec. Connector Housing	Air Brake Interconnect, XX185-2
48	RWA11025	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 10, 11
49	R559987	2	Clamp	-
50	RE590798	1	Chassis Wiring Harness	-
51	57M13137	1	Elec. Connector Housing	Air Trailer Brake Leak Detection Solenoid, Y721
51	RWA11105	1	Repair Wire Assembly	Cavity 1, 2
52	57M10711	1	Elec. Connector Accessory	-
53	57M9780	1	Elec. Connector Housing	Air Brake Pressure Sensor, B922
53	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3

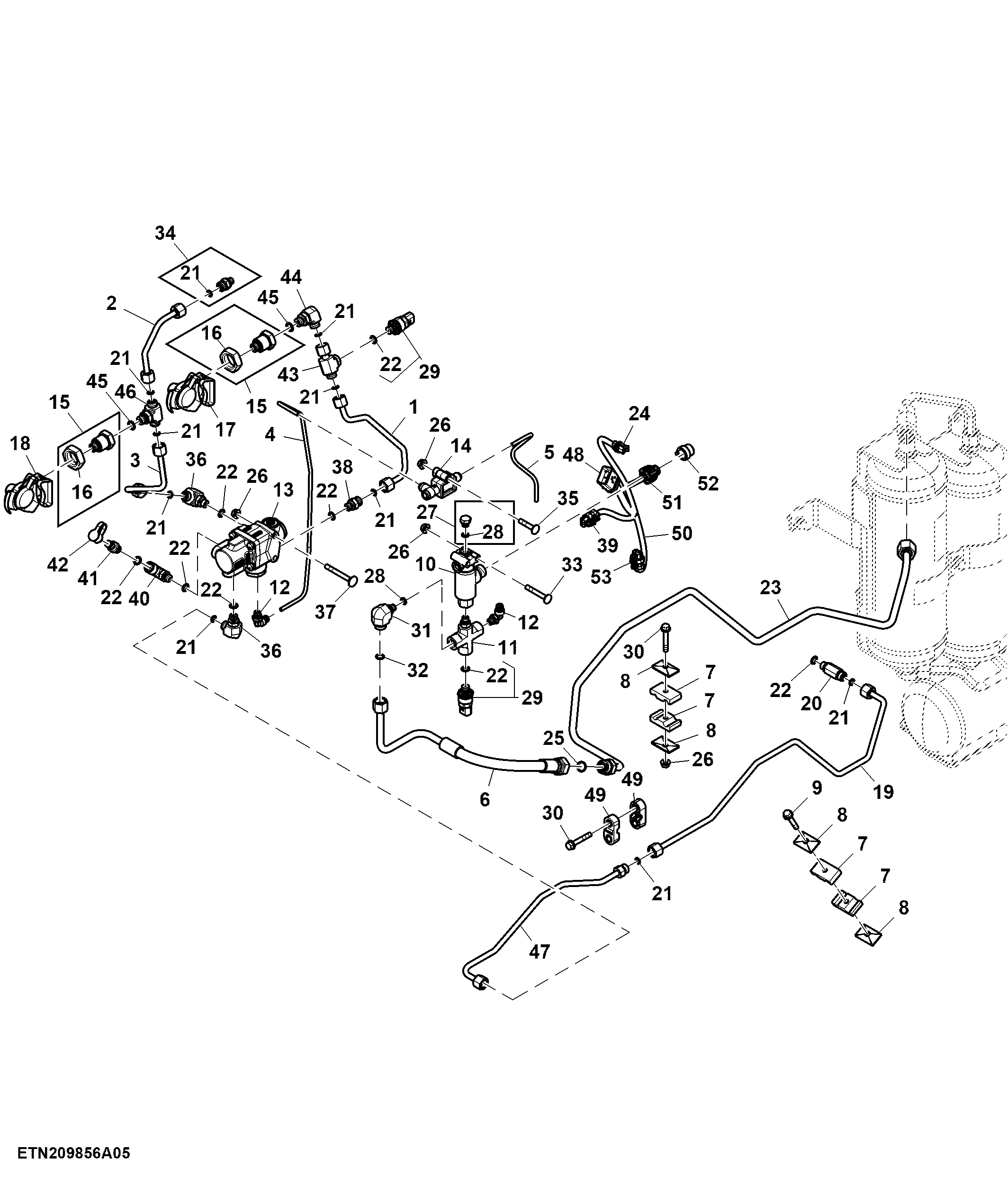

Pneumatic Trailer Brake Assembly (2/2) ( - 802000)
