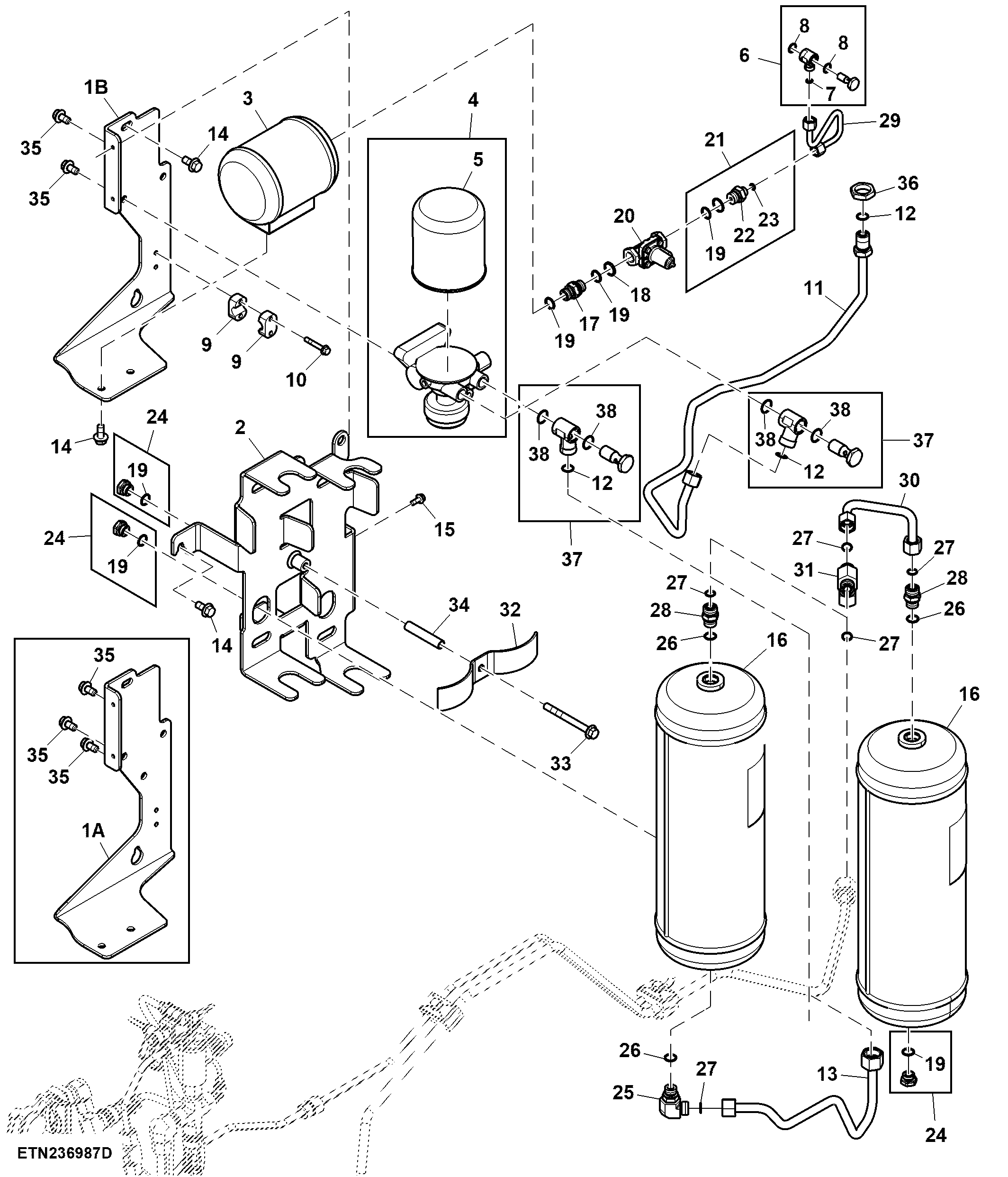

Pneumatic Trailer Brake Assembly (1/2) (802001 - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	RE595457	1	Bracket	-
3	AL207504	1	Reservoir	Air Trailer Brake Purge Tank, R72
4	AL231942	1	Air Dryer	Air Trailer Brake Pressure Regulating Valve Assembly, V72
5	HXE135862	1	Air Dryer	Air Dryer Cartridge, F72
6	RE563206	1	Fitting	-
7	R534806	1	O-Ring	-
8	R534793	2	O-Ring	-
9	H114876	2	Clamp	-
10	19M7800	2	Screw	M8 X 50
11	RE593842	1	Line	Dryer Supply At Midframe, INCLUDES T77858
12	T77858	3	O-Ring	-
13	RE595433	1	Oil Line	Dryer To LH Reservoir Tank
14	19M7788	6	Screw	M12 X 25
15	19M7866	2	Screw	M8 X 20
16	RE316718	2	Reservoir	Air Trailer Brake Dual Tank Reservoir, R70
17	RE583846	1	Adapter Fitting	-
18	R559684	1	Ring	-
19	51M7045	6	O-Ring	19.300 X 2.200 mm
20	AL207476	1	Pneumatic Pressure Valve	Air Trailer Brake Purge Tank Charge Valve, V73
21	RE574939	1	Adapter Fitting	-
22	38H5193	1	Adapter Fitting	-
23	T77613	1	O-Ring	-
24	RE583805	3	Fitting Plug	-
25	R559716	1	Elbow Fitting	-
26	51M7085	3	O-Ring	19 X 2 mm
27	T77932	5	O-Ring	-
28	R559717	2	Adapter Fitting	-
29	RE586528	1	Line	Dryer To Purge Tank
30	RE592539	1	Line	Tank To Tank Line from Top Port
31	38H5216	1	Tee Fitting	-
32	R312288	1	Clamp	-
33	19M7821	1	Screw	M12 X 120
34	28H3464	1	Spacer	0.493" X 0.675" X 3-1/2"
35	L168204	3	Cap Screw	USE WITH RE595420
35	L168204	2	Cap Screw	USE WITH RE597734
36	38H5094	1	Nut	1-3/16"
37	RE593752	2	Fitting	-
38	R524887	4	O-Ring	-
1A	RE595420	1	Bracket	ORDER RE597734
1B	RE597734	1	Bracket	-

Pneumatic Trailer Brake Assembly (1/2) (802001 - 804000)
