Открытый узел

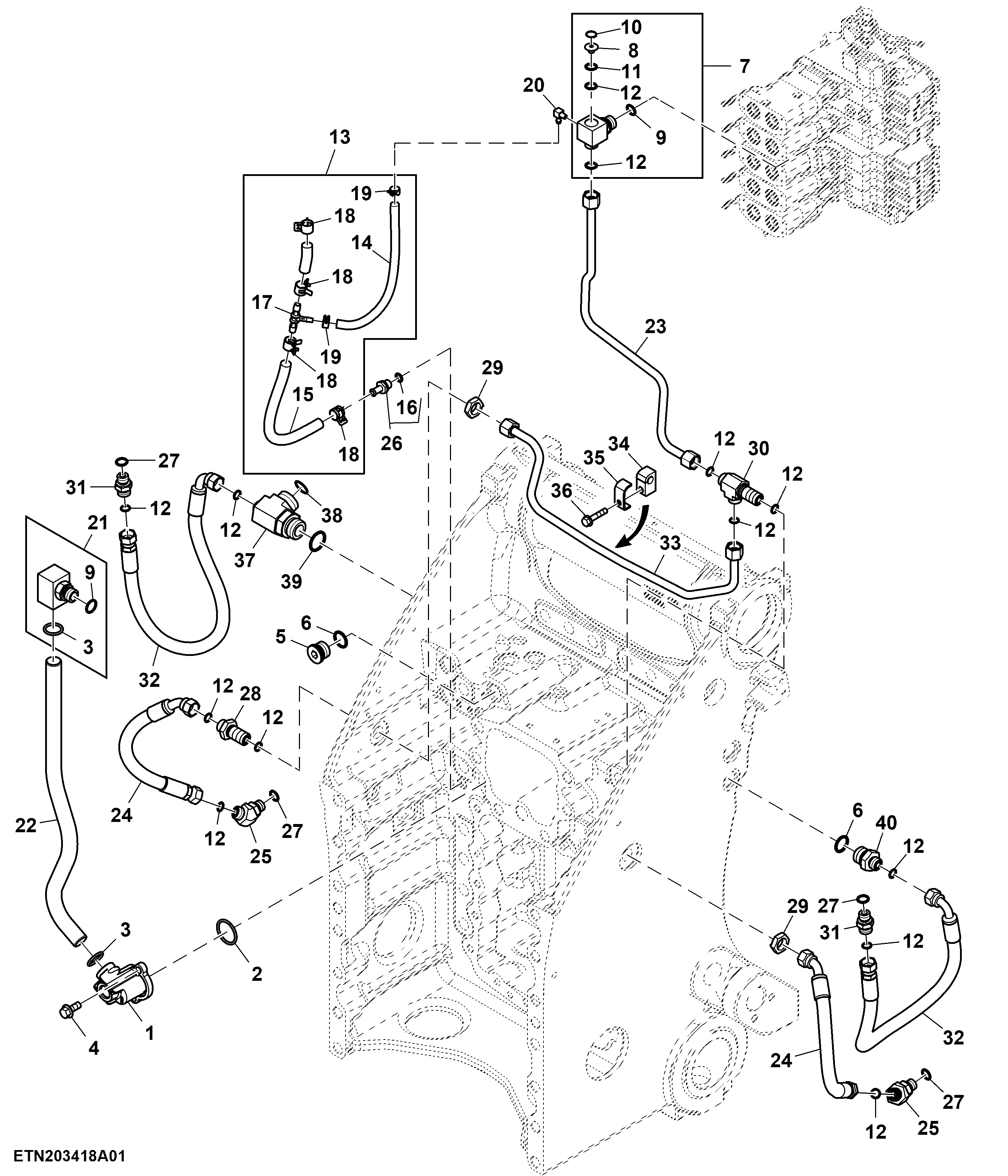

Oil Lines, Lift Cylinders, Rear Hitch, W/ 5 SCV

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R559176	1	Manifold	-
2	H35244	1	Ring	-
3	A4730R	2	O-Ring	-
4	19M7785	2	Screw	M10 X 25
5	64M1022	1	Drain Plug	-
6	51M7047	2	O-Ring	23.600 X 2.900 mm
7	RE264543	1	Valve	Rear Hitch Manual Drain Valve, V801
8	R277483	1	Plug	-
9	51M7045	2	O-Ring	19.300 X 2.200 mm
10	R46722	1	Snap Ring	-
11	T77814	1	O-Ring	-
12	T77857	13	O-Ring	-
13	RE562648	1	Hose Kit	Side SCV Coupler Drain to Hitch Frame
14	R541287	1	Hose	-
15	R541285	1	Hose	-
16	51M7041	1	O-Ring	11.300 X 2.200 mm
17	R283426	1	Tee Fitting	-
18	R202160	4	Clamp	-
19	R56101	2	Clip	-
20	M84497	1	Elbow Fitting	-
21	RE562650	1	Fitting	-
22	R541289	1	Oil Tube	-
23	RE562651	1	Oil Line	Hitch Valve to Bulkhead
24	RE342939	2	Hydraulic Hose	Bulkhead Fittings to Lower Hitch
25	38H5071	2	Elbow Fitting	-
26	RE193349	1	Hose Fitting	SCV Coupler Drain Hose to Hitch Frame
27	51M7043	4	O-Ring	15.300 X 2.200 mm
28	38H5073	1	Adapter Fitting	-
29	38H5092	2	Nut	13/16"
30	38H5089	1	Tee Fitting	-
31	38H5003	2	Adapter Fitting	-
32	RE562647	2	Hydraulic Hose	Upper Hitch Cylinder Ports to Sides of Hitch Frame
33	RE571316	1	Oil Line	Crossover Between Bulkhead Fittings in Hitch Frame
34	R305047	1	Block Clamp	-
35	R305041	1	Cover	Crossover Line Clamp
36	19M7798	1	Screw	M8 X 40
37	38H5231	1	Tee Fitting	-
38	T76938	1	O-Ring	-
39	51M7048	1	O-Ring	29.600 X 2.900 mm
40	38H5181	1	Adapter Fitting	-

Oil Lines, Lift Cylinders, Rear Hitch, W/ 5 SCV
