Открытый узел

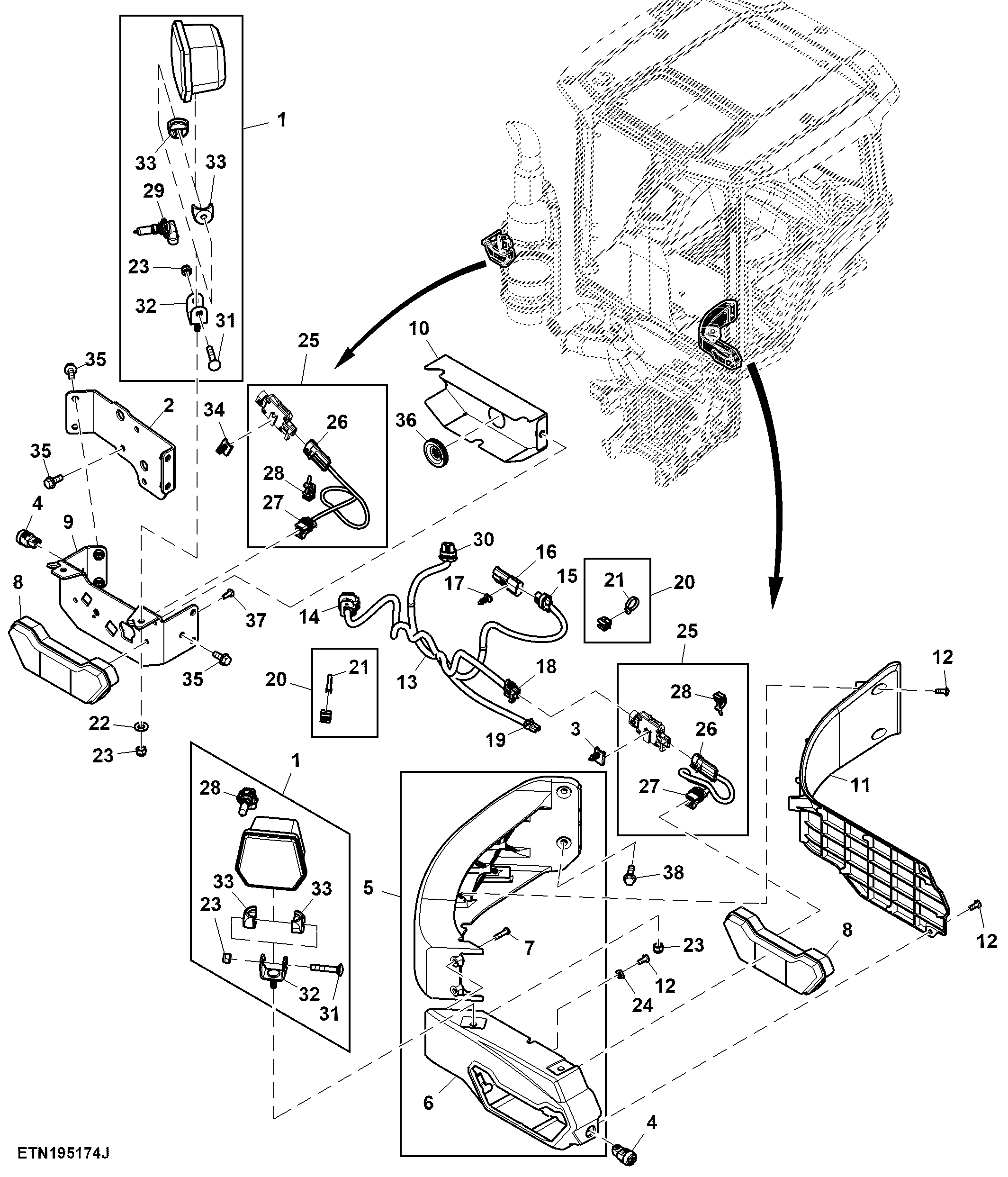

Front Midbody Flood Lights, 2 Halogen, W/ Midbody Marker Lights

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE593796	2	Floodlamp	Halogen Pedestal Mount
2	RE596125	1	Bracket	Mid Light Spacer Bracket
3	57M9939	1	Elec. Connector Accessory	-
4	RE592800	2	Plug	Marker
5	RE594341	1	Bracket	Light Mount, LH Assembly
6	-	1	Part 6	Light Mount, LH Outer, ORDER RE594341
7	21M7631	2	Screw	M6 X 25
8	RE592939	2	Lamp	9 V, Extremity Amber
9	RE596261	1	Bracket	Front Light Bracket
10	RE596262	1	Bracket	-
11	R569651	1	Cover	-
12	R194506	8	Screw	-
13	RE593477	1	Wiring Harness	Left Midbody Lights, W/ Position Lights
14	57M9786	1	Elec. Connector Housing	Left Midbody Lights to Roof Interconnect, XX172-2
14	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
15	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Outer Left, E226
15	RWA11089	1	Repair Wire Assembly	Cavity A, B
15	57M8129	1	Elec. Connector Terminal	-
16	57M8958	1	Elec. Connector Housing	-
16	57M8129	1	Elec. Connector Terminal	-
17	57M9555	1	Clip	-
18	57M7255	1	Elec. Connector Housing	Light Turn Marker Beltline Left, E176
18	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
18	57M7290	1	Elec. Connector Accessory	-
19	57M14930	1	Elec. Connector Housing	Side Light, E328
19	57M14931	2	Elec. Connector Terminal	Cavity 1, 2
20	AH225364	2	Clip	-
21	R44302	2	Tie Band	-
22	24M7271	1	Washer	10.500 X 20 X 2 mm
23	14M7847	4	Lock Nut	M8
24	R569996	3	Bracket	Position Light
25	RE592129	2	Sensor Kit	LED Light Dongle, ORDER TA19216
25	TA19216	2	Sensor Kit	LED Light Dongle
26	57M7257	2	Elec. Connector Housing	-
27	57M7255	2	Elec. Connector Housing	-
28	57M9229	2	Clip	-
29	R571005	2	Bulb	12 V
30	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Inner Left, E129
30	RWA11089	1	Repair Wire Assembly	Cavity A, B
30	57M8129	1	Elec. Connector Terminal	-
31	03M7369	2	Bolt	M8 X 45
32	R571006	2	Mounting Parts	-
33	R571007	4	Mounting Parts	-
34	57M9940	1	Elec. Connector Accessory	-
35	19M10365	8	Screw	M8 X 20
36	R565827	1	Grommet	-
37	R263172	2	Screw	-
38	19M10655	2	Screw	M8 X 30

Front Midbody Flood Lights, 2 Halogen, W/ Midbody Marker Lights

Нет текстового описания
