Chassis Wiring Harness, FT4/ Stage 5 Engine ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	2	Tie Band	-
2	R567146	25	Tie Band	-
3	RE596052	1	Chassis Wiring Harness	-
4	57M7309	1	Elec. Connector Housing	A/C Compressor Clutch, S501
4	RWA11089	1	Repair Wire Assembly	Cavity B
5	57M8873	1	Elec. Connector Terminal	Alternator, G301-2
6	57M9940	2	Elec. Connector Accessory	-
7	57M9071	1	Elec. Connector Housing	Engine Chassis/ ATD Interconnect, XX003-1
7	RWA11058	1	Repair Wire Assembly	Cavity 1, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
8	57M9144	1	Elec. Connector Housing	Compressor Inlet Humidity/ Pressure/ Temperature (CAN), B5500
8	RWA11130	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
9	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
9	57M9776	1	Elec. Connector Housing	Terminator Vehicle CAN Chassis, A912
10	57M8730	1	Elec. Connector Housing	JDPS Harness Interconnect, XX5097-1
10	RWA11042	1	Repair Wire Assembly	Cavity 13, 14, 15, 17, 18, 19, 20, 21, 16, 22, 34, 35, 36, 30, 33, 32, 31, 12, 23, 24, 27, 26, 25, 29, 28, 37, 38, 39, 41, 8, 10, 9, 11, 3, 7, 6, 5, 4
10	RWA11045	1	Repair Wire Assembly	Cavity 62, 60, 61
11	RE566207	1	Tie Band	-
12	RE258807	7	Tie Band	-
13	57M8738	1	Elec. Connector Accessory	-
14	57M10421	1	Elec. Connector Accessory	-
15	AH225363	1	Clip	-
16	RE596531	1	Battery Cable	-
17	57M9206	2	Clip	-
18	R568834	4	Block Clamp	-
19	R569884	8	Cap Screw	-
20	14M7375	1	Flange Nut	M5
21	14M7400	1	Lock Nut	M10
22	24M7106	1	Washer	10 X 18 X 2.500 mm
23	57M10298	1	Elec. Connector Housing	Engine Chassis to Main Interconnect, XX182-2
23	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
24	57M8812	1	Elec. Connector Housing	Auto-Ether Solenoid, Y5018
24	RWA11076	1	Repair Wire Assembly	Cavity A, B
25	R528122	1	Elec. Connector Accessory	-
26	RE538505	1	Elec. Connector Accessory	Engine Control Unit, A5505-3
26	RWA11027	1	Repair Wire Assembly	Cavity 12, 13, 1, 2, 16, 17, 7, 14, 52, 43, 50, 45, 44, 24, 23, 27, 30
27	57M11134	1	Elec. Connector Housing	-
28	57M9791	1	Elec. Connector Housing	Variable Speed Fan, Y5005
28	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
29	57M9841	1	Elec. Connector Accessory	-
30	57M11781	1	Elec. Connector Housing	Engine Chassis to Main Interconnect (DEF), XX184-1
30	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 11, 12, 13, 14, 23, 24
30	RWA11145	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 15, 16, 17, 18, 19, 20, 21, 22
31	R568228	2	Clip	-

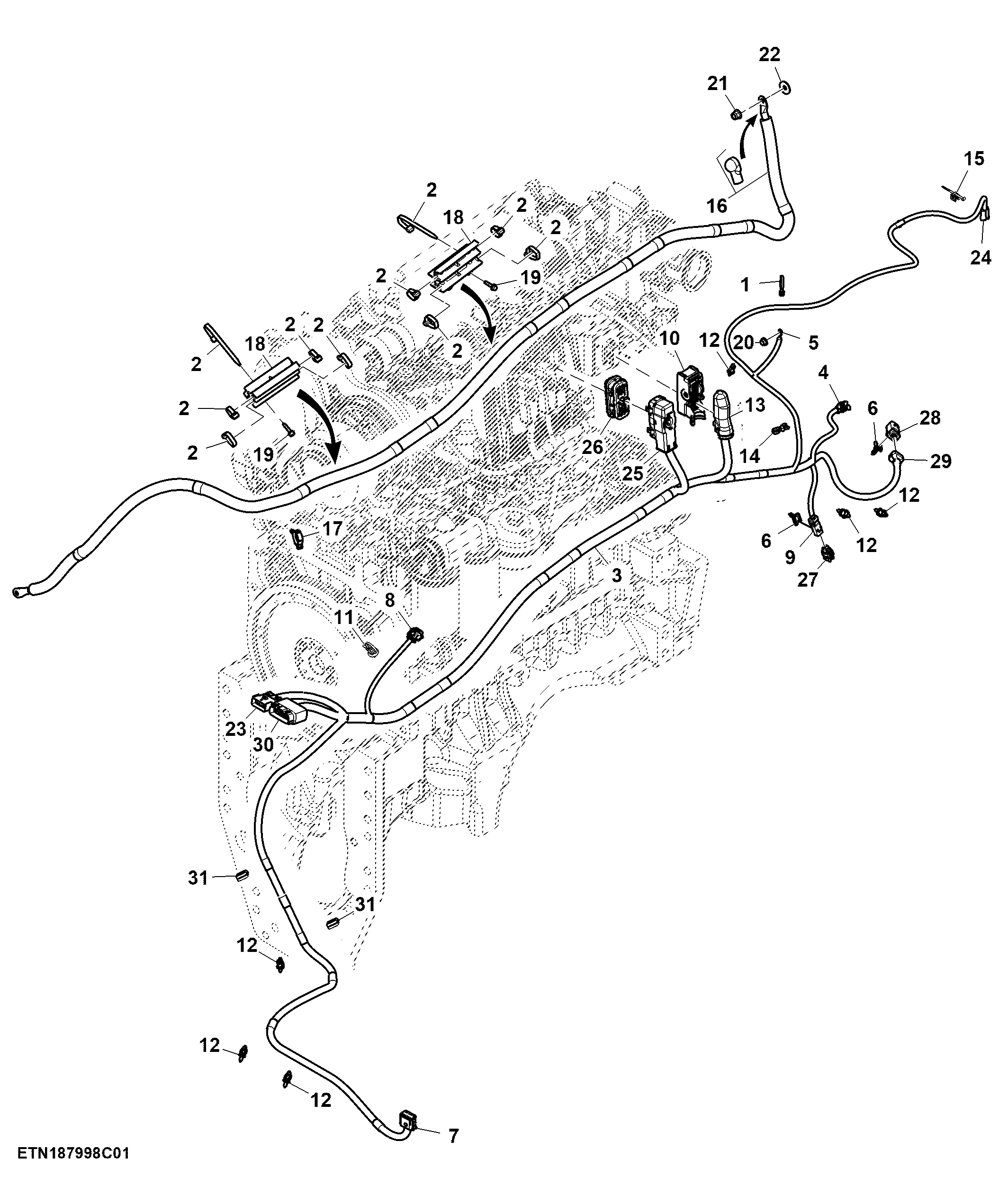

Chassis Wiring Harness, FT4/ Stage 5 Engine ( - 804000)
