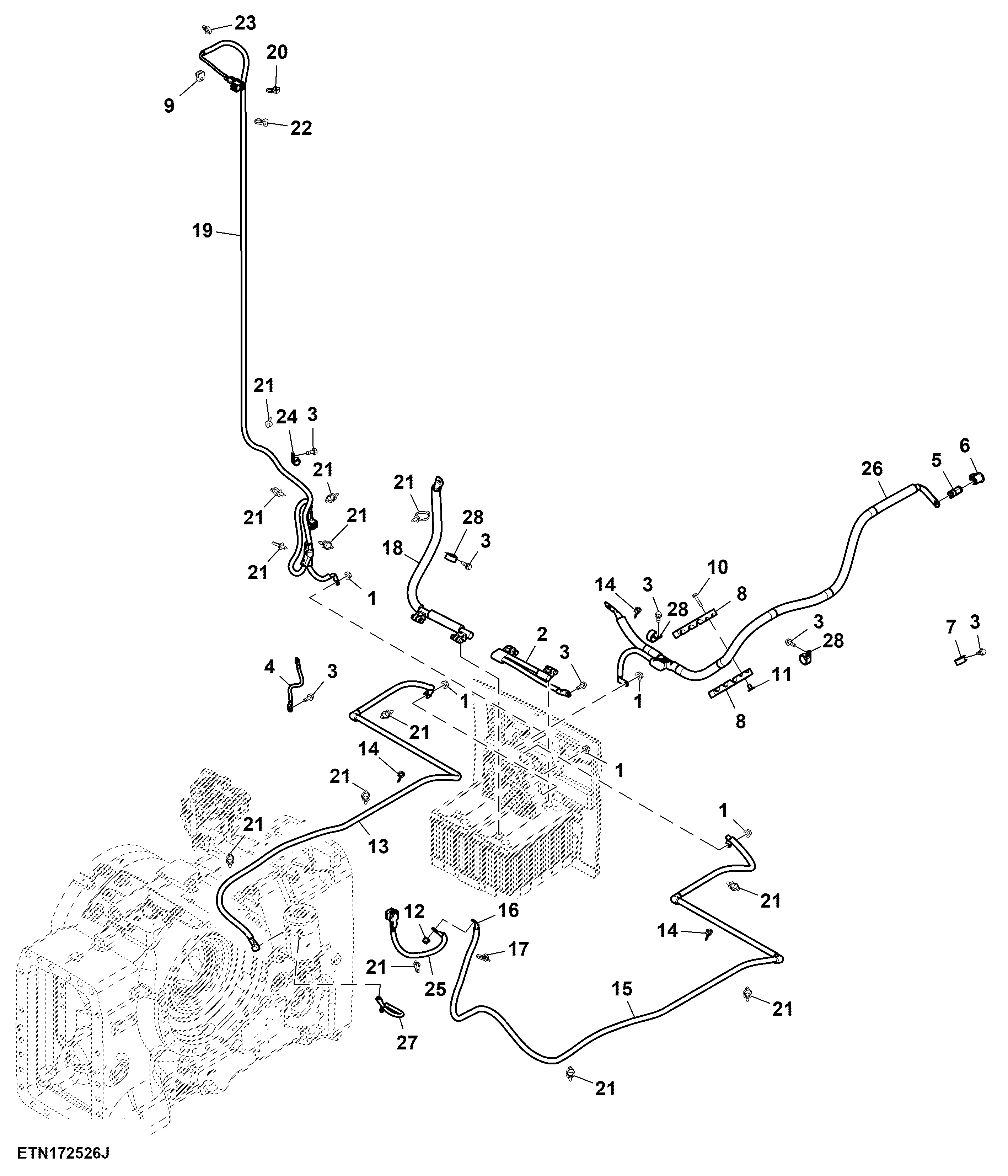

Battery Cables, W/ Battery Disconnect ( - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	5	Flange Nut	M8
2	RE596802	1	Chassis Wiring Harness	SUB FOR RE585727
3	19M7866	9	Screw	M8 X 20
4	RE590451	1	Ground Cable	Length = 290 mm
5	R135871	1	Elec. Connector Terminal	-
6	R96066	1	Cover	-
7	57M12140	1	Clamp	-
8	R570344	2	Block Clamp	-
9	R567104	1	Grommet	-
10	19M7798	2	Screw	M8 X 40
11	R187365	2	Nut	-
12	14M7400	1	Lock Nut	M10
13	RE596073	1	Battery Cable	INCLUDES (5) 57M8902, (6) RE258807
14	57M8902	10	Clip	-
15	RE596074	1	Battery Cable	INCLUDES (4) 57M8902, (5) RE258807, (2) RE566207, 57M12547
16	57M12547	1	Elec. Connector Terminal	-
17	RE566207	2	Tie Band	-
18	RE594411	1	Battery Cable	Length = 835 mm, INCLUDES RE258807
19	RE593421	1	Battery Cable	Length = 2895 mm, INCLUDES (4) 57M14529, (6) RE258807, (6) 57M12014, 57M10421, 57M13298
20	57M14529	4	Elec. Connector Accessory	-
21	RE258807	19	Tie Band	-
22	57M12014	6	Elec. Connector Accessory	-
23	57M10421	1	Elec. Connector Accessory	-
24	57M13298	1	Clamp	-
25	RE593425	1	Battery Cable	Length = 380 mm, INCLUDES RE258807
26	RE593419	1	Battery Cable	Length = 1770 mm, INCLUDES 57M8902
26	TA22473	1	Battery Cable	Length = 1770 mm, INCLUDES 57M8902
27	RE593450	1	Battery Cable	Length = 295 mm
28	57M12126	5	Clamp	-

Battery Cables, W/ Battery Disconnect ( - 804000)

Нет текстового описания
