Открытый узел

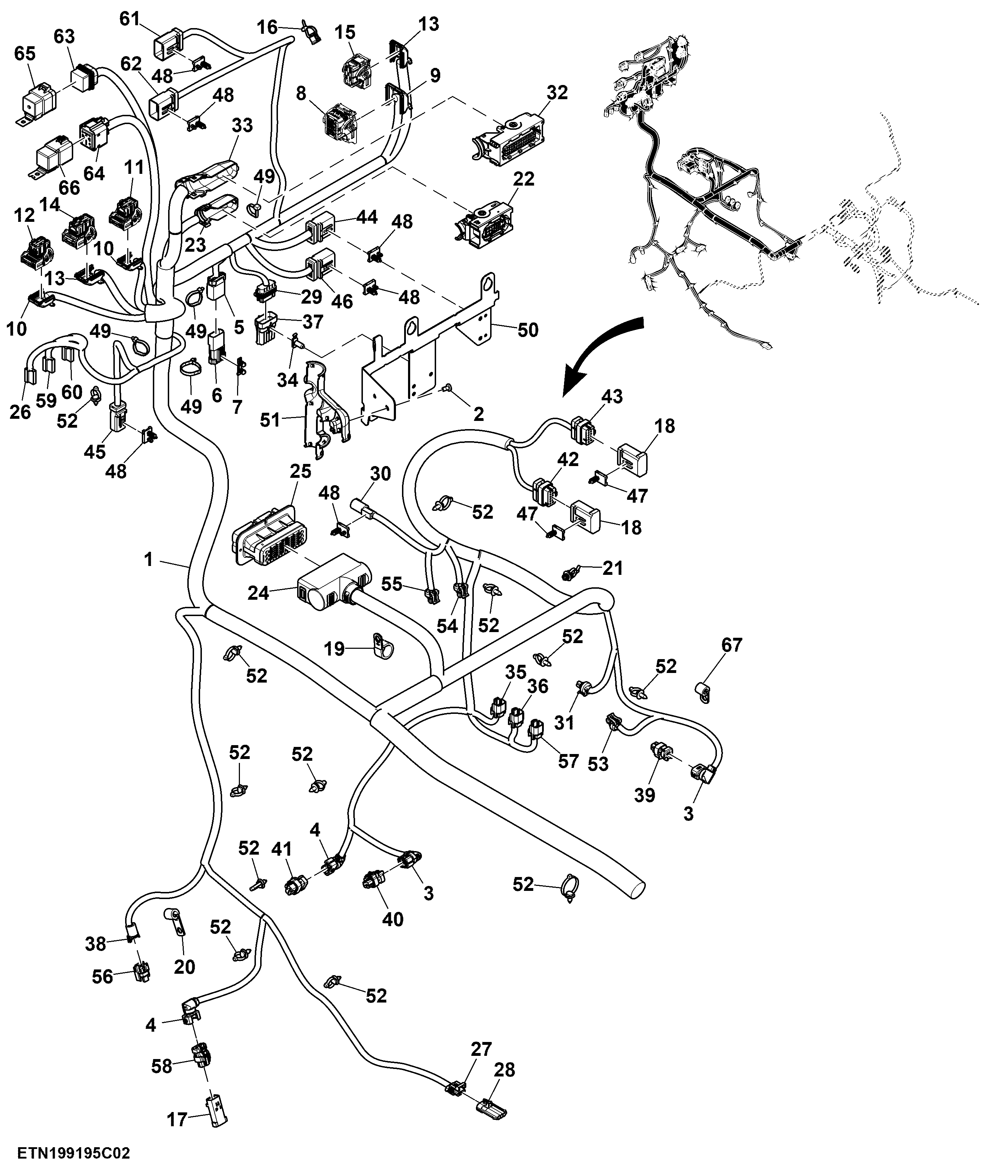

Wiring Harness, Chassis, T2 / T3 Engine (2/3) ( - 804000)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE595478	1	Chassis Wiring Harness	-
2	21M7400	2	Screw	M6 X 10
3	57M10155	2	Elec. Connector Accessory	-
4	57M10156	2	Elec. Connector Accessory	-
5	57M10303	1	Elec. Connector Housing	XX208-1, Trailer ABS
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
6	57M10304	1	Elec. Connector Housing	XX208-1_A, XX208-1 Cap
7	57M10308	1	Elec. Connector Accessory	-
8	57M10329	1	Elec. Connector Housing	A107-3, Cab Controller J3
8	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
8	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
8	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
9	57M10401	1	Elec. Connector Accessory	-
10	57M10604	2	Elec. Connector Housing	-
11	57M10605	1	Elec. Connector Housing	A980-1, Steering Control J1
11	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, A4, B1, B2, B4, C4, D4, E2, E4, F4, F2
11	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, G4, H3, H4
12	RWA11032	1	Repair Wire Assembly	Cavity G4
12	RWA11030	1	Repair Wire Assembly	Cavity C3, C4, D3, F2
12	57M10611	1	Elec. Connector Housing	A980-3, Steering Control J3
13	57M10613	2	Elec. Connector Housing	-
14	57M10614	1	Elec. Connector Housing	A980-2, Steering Control J2
14	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C3, C4, D3, E1, E2, F4, G2, G3, H2, H1, H4, J2, J3, J4, K1, K2, K3, B2, F1, F2, G1, G3, J1, E3
14	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, L3, L4, M1, M2, M3, M4
15	57M10615	1	Elec. Connector Housing	A107-1, Cab Controller J1
15	RWA11030	1	Repair Wire Assembly	Cavity A1, B1, C2, C3, D2, D4, E1, E2, E3, E4, F3, F4, G1, G3, G4, H3, H4, J3, J4
15	RWA11032	1	Repair Wire Assembly	Cavity L2, M1, M2, M3, M4
16	57M10747	3	Elec. Connector Accessory	-
17	57M11334	1	Elec. Connector Accessory	-
18	57M11338	2	Elec. Connector Accessory	-
19	57M12124	1	Clamp	-
20	57M12138	1	Clamp	-
21	57M13016	1	Elec. Connector Accessory	-
22	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 11, 12, 13, 14
22	57M14691	1	Elec. Connector Seal	Cavity 2
22	RWA11045	1	Repair Wire Assembly	Cavity 17, 18, 19, 20, 21, 22, 23, 24, 25, 26
22	57M15202	1	Elec. Connector Terminal	Cavity 1
22	57M11890	1	Elec. Connector Seal	Cavity 1
22	57M13340	1	Elec. Connector Housing	XX501-1, Chassis To Cab Interconnect 2
22	57M15110	1	Elec. Connector Terminal	Cavity 2
23	57M13343	1	Elec. Connector Accessory	-
24	57M13948	1	Elec. Connector Accessory	-
25	57M14781	1	Elec. Connector Housing	XX183-1, Main To Rear Interconnect
25	RWA11137	1	Repair Wire Assembly	Cavity B2, B4, B6, B8, B11, C1, C3, C4, C10, D3, D4, D7, D9, D10, E1, E2, E4, E5, E6, E10, E11, E12, F7, F10, F11, F12, E3, D5, C11, C7, C8, C9, D2, D1, C2, C12, D8, D6, B3, B5
25	RWA11129	1	Repair Wire Assembly	Cavity A1, A2, G1, G2, G3
26	R77476	1	Electrical Connector Assy	M01, Front Washer Pump
26	RWA11076	1	Repair Wire Assembly	Cavity A, B
27	57M7255	1	Elec. Connector Housing	XX201, Radar Interconnect
27	57M7290	1	Elec. Connector Accessory	-
27	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
28	57M7257	1	Elec. Connector Housing	XX201_A, XX201 Cap
29	57M7262	1	Elec. Connector Housing	X116, Implement Accessory
29	CB01489384	1	Elec. Connector Accessory	-
29	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K
30	57M7761	1	Elec. Connector Housing	XX186-1, IBBC_Power
30	57M7613	1	Elec. Connector Terminal	Cavity 1
31	57M8625	1	Elec. Connector Housing	B263_AT, Backup Pump Pressure
31	57M8624	1	Elec.Connect Locking Device	-
31	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
32	57M8730	1	Elec. Connector Housing	XX500-1, Chassis To Cab Interconnect
32	57M11957	1	Elec. Connector Accessory	-
33	57M8738	1	Elec. Connector Accessory	-
34	57M8910	1	Clip	-
35	RWA11097	1	Repair Wire Assembly	Cavity A, B
35	57M8633	1	Elec. Connector Accessory	-
35	57M8924	1	Elec. Connector Housing	Y747, Steer 1 Off
36	57M9210	1	Elec. Connector Housing	Y749, Steer 1 Right
36	RWA11097	1	Repair Wire Assembly	Cavity A, B
36	57M8633	1	Elec. Connector Accessory	-
37	57M9213	1	Elec. Connector Housing	X116_A, X116_Cap
37	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 8, 11, 12, 14, 21, 22, 23, 26, 27, 28, 29, 30, 34, 35, 38, 39, 41, 43, 44, 56
37	RWA11045	1	Repair Wire Assembly	Cavity 58, 60, 61
38	57M11380	1	Elec. Connector Accessory	-
39	57M9727	1	Elec. Connector Housing	B694, Hydraulic Oil Temp
39	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
40	57M9775	1	Elec. Connector Housing	B696, Rear PTO Speed
40	RWA11027	1	Repair Wire Assembly	Cavity 1, 2
41	57M9780	1	Elec. Connector Housing	B555, Diff Case Oil Presence Sensor
41	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
42	57M9800	1	Elec. Connector Housing	XX058-1, Combo Valve Interconnect
42	RWA11029	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7, 8, 9, 10, 11
43	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 11, 12
43	57M9802	1	Elec. Connector Housing	XX059-1, Combo Valve Interconnect - 1
44	57M9804	1	Elec. Connector Housing	XX119-1, Left Rear Fender Light Interconnect
44	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
45	57M9821	1	Elec. Connector Housing	XX141-2, Front Camera
45	RWA11023	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
46	57M9825	1	Elec. Connector Housing	XX109-1, Left Rear Fender Interconnect 2
46	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
47	57M9939	2	Elec. Connector Accessory	-
48	57M9940	6	Elec. Connector Accessory	-
49	R44302	10	Tie Band	-
50	-	1	Part 94	ORDER RE595478
51	R568847	1	Bracket	-
52	RE258807	30	Tie Band	-
53	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
53	57M8625	1	Elec. Connector Housing	B552, Hydraulic Oil Filter Restriction Sensor
53	57M8624	1	Elec.Connect Locking Device	-
54	57M8625	1	Elec. Connector Housing	B262, Main Hydraulic Pump Pressure-2
54	57M8624	1	Elec.Connect Locking Device	-
54	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
55	57M8625	1	Elec. Connector Housing	B261, Main Hydraulic Pump Pressure-1
55	57M8624	1	Elec.Connect Locking Device	-
55	RWA11097	1	Repair Wire Assembly	Cavity 1, 2, 3
56	57M8924	1	Elec. Connector Housing	Y500, Rear PTO Solenoid
56	RWA11097	1	Repair Wire Assembly	Cavity A, B
57	57M9210	1	Elec. Connector Housing	Y748, Steer 1 Left
57	57M8633	1	Elec. Connector Accessory	-
57	RWA11097	1	Repair Wire Assembly	Cavity A, B
58	57M9780	1	Elec. Connector Housing	B717, Hydraulic Charge Press
59	R77476	1	Electrical Connector Assy	M02, Rear Washer Pump
59	RWA11076	1	Repair Wire Assembly	Cavity A, B
60	RWA11076	1	Repair Wire Assembly	Cavity A, B
60	R77476	1	Electrical Connector Assy	M03, Right Washer Pump
61	57M9804	1	Elec. Connector Housing	XX118-1, Right Fender Interconnect 1
61	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
62	57M9825	1	Elec. Connector Housing	XX108-1, Right Rear Fender Interconnect 2
62	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 9, 10, 11, 12
63	57M7555	1	Elec. Connector Housing	-
64	57M8233	1	Electrical Connector Assy	-
65	57M11114	2	Elec. Connector Terminal	Cavity 1, 4
65	57M7579	1	Elec. Connector Terminal	Cavity 5
65	57M13620	1	Elec. Connector Terminal	Cavity 2
65	TCA51227	1	Relay	70 A, KE1, Implement ECU Relay, SUB FOR 57M12655
66	AL156697	1	Relay	70 A, KE100, Implement Power Relay
66	57M10210	2	Elec. Connector Terminal	Cavity 3, 5
66	57M8234	2	Elec. Connector Terminal	Cavity 1, 2
66	57M10212	2	Elec. Connector Cable Seal	Cavity 1, 2
66	57M10213	2	Elec. Connector Cable Seal	Cavity 3, 5
67	57M12128	1	Clamp	-

Wiring Harness, Chassis, T2 / T3 Engine (2/3) ( - 804000)
