Открытый узел

Transmission Pump Lines, W/ High Flow Pump, e23™ ( - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R543539	1	Gasket	-
2	62M1024	1	Adapter Fitting	-
3	B3690R	1	O-Ring	-
4	AL117978	1	Adapter Fitting	-
5	51M7041	2	O-Ring	11.300 X 2.200 mm
6	19M7789	2	Screw	M12 X 30
7	RE582881	1	Hydraulic Hose	High Flow Pump Inlet
8	H127589	2	Clamp	-
9	19M7798	1	Screw	M8 X 40
10	H156922	2	Hose Clamp	-
11	H114865	4	Clamp	-
12	19M7866	4	Screw	M8 X 20
13	H112567	2	Plate	-
14	19M7801	2	Screw	M8 X 60
15	R565817	1	Cover	-
16	R571505	1	Hydraulic Hose	Vent
17	RE584414	1	Pressure Sensor	15 bar
18	RE595447	1	Oil Line	Rear Park Pump Off Steel Line, INCLUDES T77613
19	T77613	2	O-Ring	-
20	RE595435	1	Oil Line	Front Park Pump Off Steel Line
21	RE593459	1	Oil Line	Transmission Supply, ORDER RE596975
22	RE593460	1	Oil Line	Transmission Lubricant, ORDER RE596974
23	RE593461	1	Oil Line	PTO Supply, ORDER RE596992
24	R572006	2	Block Clamp	-
25	R314966	4	Bolt	-
26	R565759	1	Oil Tube	-
27	19M7821	2	Screw	M12 X 120
28	38H5004	1	Adapter Fitting	-
29	51M7045	1	O-Ring	19.300 X 2.200 mm
30	T77932	1	O-Ring	-
31	38H5005	1	Adapter Fitting	-
32	51M7047	1	O-Ring	23.600 X 2.900 mm
33	T77858	1	O-Ring	-
34	38H5006	1	Adapter Fitting	-
35	51M7048	2	O-Ring	29.600 X 2.900 mm
36	T76938	1	O-Ring	-
37	38H5145	1	Elbow Fitting	-
38	RE596975	1	Oil Line	Transmission Supply
39	RE596974	1	Oil Line	Transmission Lubricant
40	RE596992	1	Oil Line	PTO Supply

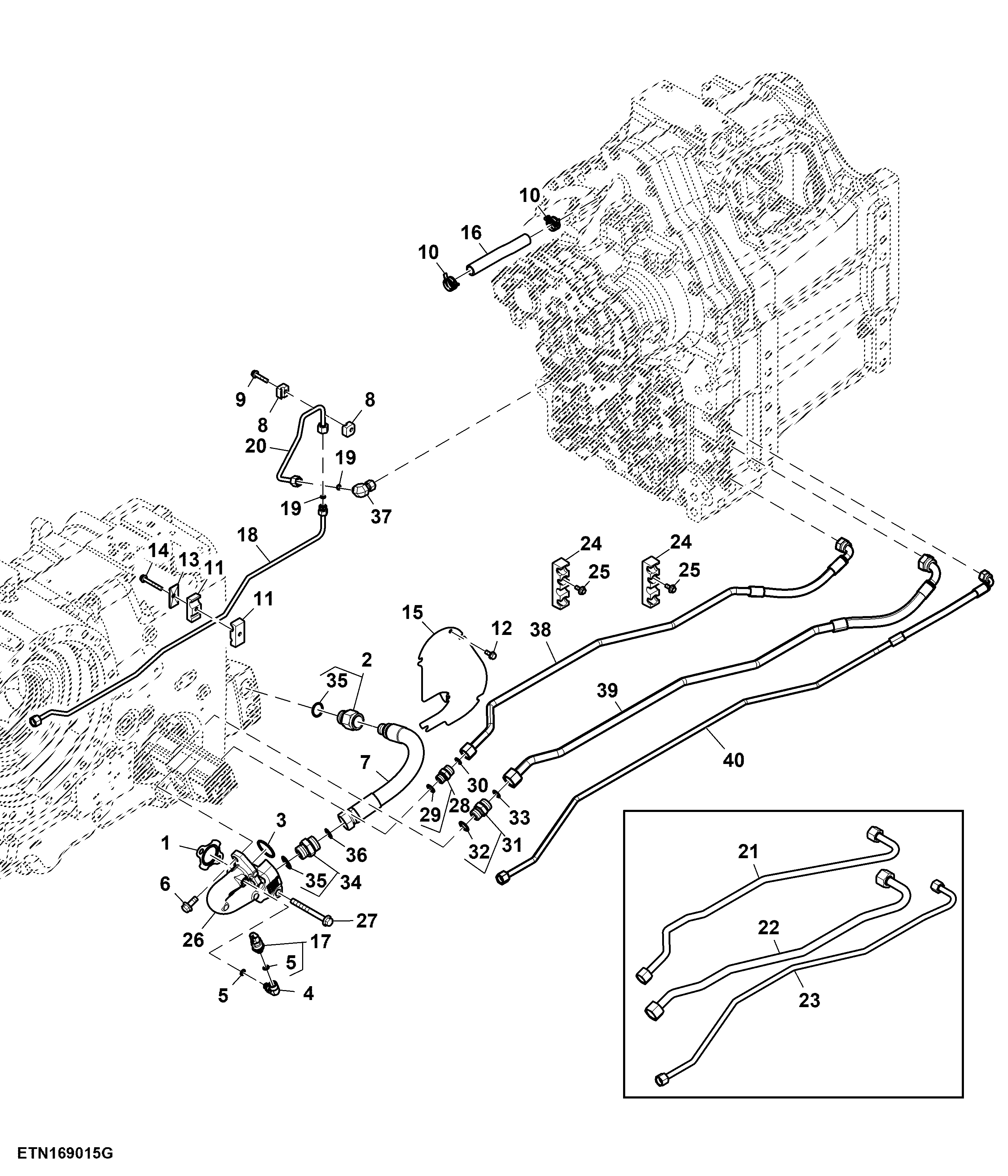

Transmission Pump Lines, W/ High Flow Pump, e23™ ( - 804000)

Нет текстового описания
