Открытый узел

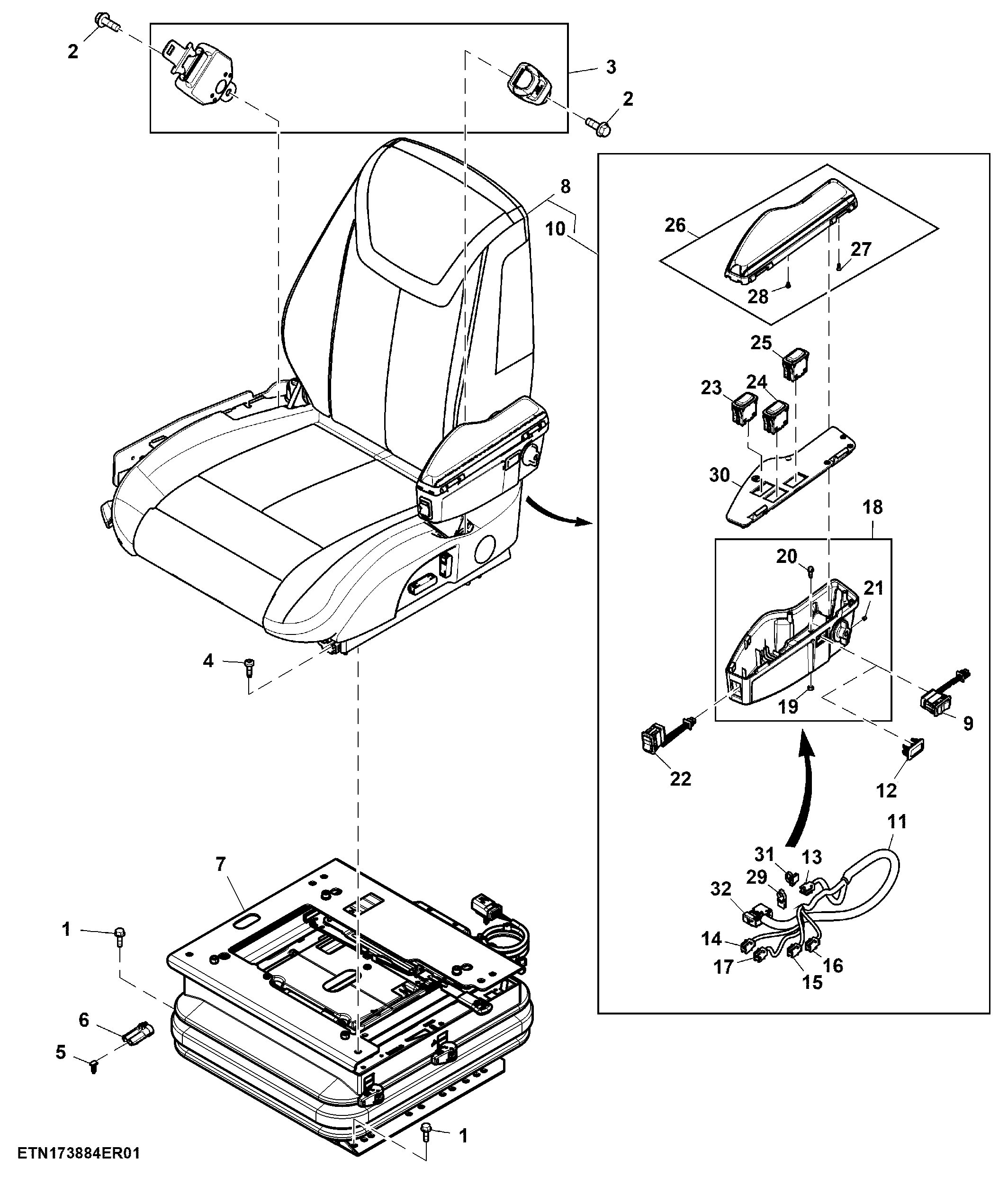

Seat Assembly, Premium, Passive Seat ( - 802020)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	R543772	2	Cap Screw	-
3	RE590504	1	Seat Belt	-
4	R569386	4	Screw	-
5	57M9555	1	Clip	-
6	57M14490	1	Elec. Connector Housing	-
7	RE595210	1	Seat Suspension	-
8	RE593483	1	Seat Assembly	-
9	RE189796	1	Toggle/Rocker Switch	Seat Firmness
10	RE595214	1	Armrest	LH
11	RE590667	1	Wiring Harness	Premium LH Armrest
12	M115279	1	Plug	-
13	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, XS194
13	57M7718	1	Electrical Connector Assy	-
13	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
14	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, XS200
14	57M7718	1	Electrical Connector Assy	-
14	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M7713	1	Electrical Connector Assy	Lumbar Up/ Down Switch, XS204
15	57M7718	1	Electrical Connector Assy	-
15	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
16	57M7713	1	Electrical Connector Assy	Lumbar In/ Out Switch, XS203
16	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
16	57M7718	1	Electrical Connector Assy	-
17	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, XS201
17	57M7718	1	Electrical Connector Assy	-
17	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
18	RE594008	1	Armrest Kit	LH Armrest Lower Tub
19	14M7297	6	Nut	M5
20	37M7392	6	Screw	M5 X 16, ORDER 37M7468
20	37M7468	6	Screw	M5 X 20
21	22M7095	1	Set Screw	M5 X 6
22	RE228095	1	Toggle/Rocker Switch	Seat Height
23	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjust Control
24	RE593852	1	Toggle/Rocker Switch	Lumbar In Out Adjustment Control
25	RE593851	1	Toggle/Rocker Switch	Lumbar Up Down Adjustment Control
26	RE590663	1	Armrest Kit	LH Armrest Lower Lid
27	37M7163	6	Screw	-
28	37M7237	7	Screw	-
29	57M10362	1	Clamp	-
30	RE590648	1	Armrest Kit	Premium LH Armrest Switch Bezel
31	57M9229	2	Clip	-
32	57M14885	1	Elec. Connector Housing	LH Armrest/ Seat Harness Inline, XX430-1

Seat Assembly, Premium, Passive Seat ( - 802020)
