Seat Assembly, Premium, ActiveSeat™ (802021 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8327	4	Screw	M8 X 25
2	57M9229	2	Clip	-
3	RE590648	1	Armrest Kit	Premium LH Armrest Switch Bezel, USE WITH RE595214
3	RE596832	1	Armrest Kit	Premium LH Armrest Switch Bezel, USE WITH RE596836
4	RE189796	1	Toggle/Rocker Switch	Seat Firmness
5	R569386	4	Screw	-
6	RE595386	1	Seat Suspension	-
6	TA17996	1	Seat Suspension	-
7	-	1	Part 9	Components On Separate Page
7	TA19491	1	Seat Assembly	Components On Separate Page, INCLUDES R569386, M115279
8	RE595214	1	Armrest	LH
8	RE596836	1	Armrest	LH
9	RE590667	1	Wiring Harness	-
10	57M14885	1	Elec. Connector Housing	LH Armrest/ Seat Harness Inline, XX430-1
11	57M7713	1	Electrical Connector Assy	Suspension Firm Adjuster Switch, XS194
11	57M7718	1	Electrical Connector Assy	-
11	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
12	57M7713	1	Electrical Connector Assy	Cushion Length Adjust Switch, XS200
12	57M7718	1	Electrical Connector Assy	-
12	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
13	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
13	57M7713	1	Electrical Connector Assy	Lumbar Up/ Down Switch, XS204
13	57M7718	1	Electrical Connector Assy	-
14	57M7713	1	Electrical Connector Assy	Lumbar In/ Out Switch, XS203
14	57M7718	1	Electrical Connector Assy	-
14	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
15	57M7713	1	Electrical Connector Assy	Suspension Height Adjuster Switch, XS201
15	57M7718	1	Electrical Connector Assy	-
15	RWA11123	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
16	RE596784	1	Armrest Kit	LH Armrest Lower Tub, USE WITH RE596836
16	RE594008	1	Armrest Kit	LH Armrest Lower Tub, USE WITH RE595214
17	14M7297	6	Nut	M5
18	37M7392	6	Screw	M5 X 16, ORDER 37M7468
18	37M7468	6	Screw	M5 X 20
19	22M7095	1	Set Screw	M5 X 6
20	RE228095	1	Toggle/Rocker Switch	Seat Height
21	RE594010	1	Toggle/Rocker Switch	Cushion Length Adjust Control
22	RE593852	1	Toggle/Rocker Switch	Lumber In Out Adjustment Control
23	RE593851	1	Toggle/Rocker Switch	Lumber Up Down Adjustment Control
24	RE590663	1	Armrest Kit	LH Armrest Lid
25	37M7163	6	Screw	-
26	37M7237	7	Screw	-
27	57M10362	1	Clamp	-
28	M115279	1	Plug	-

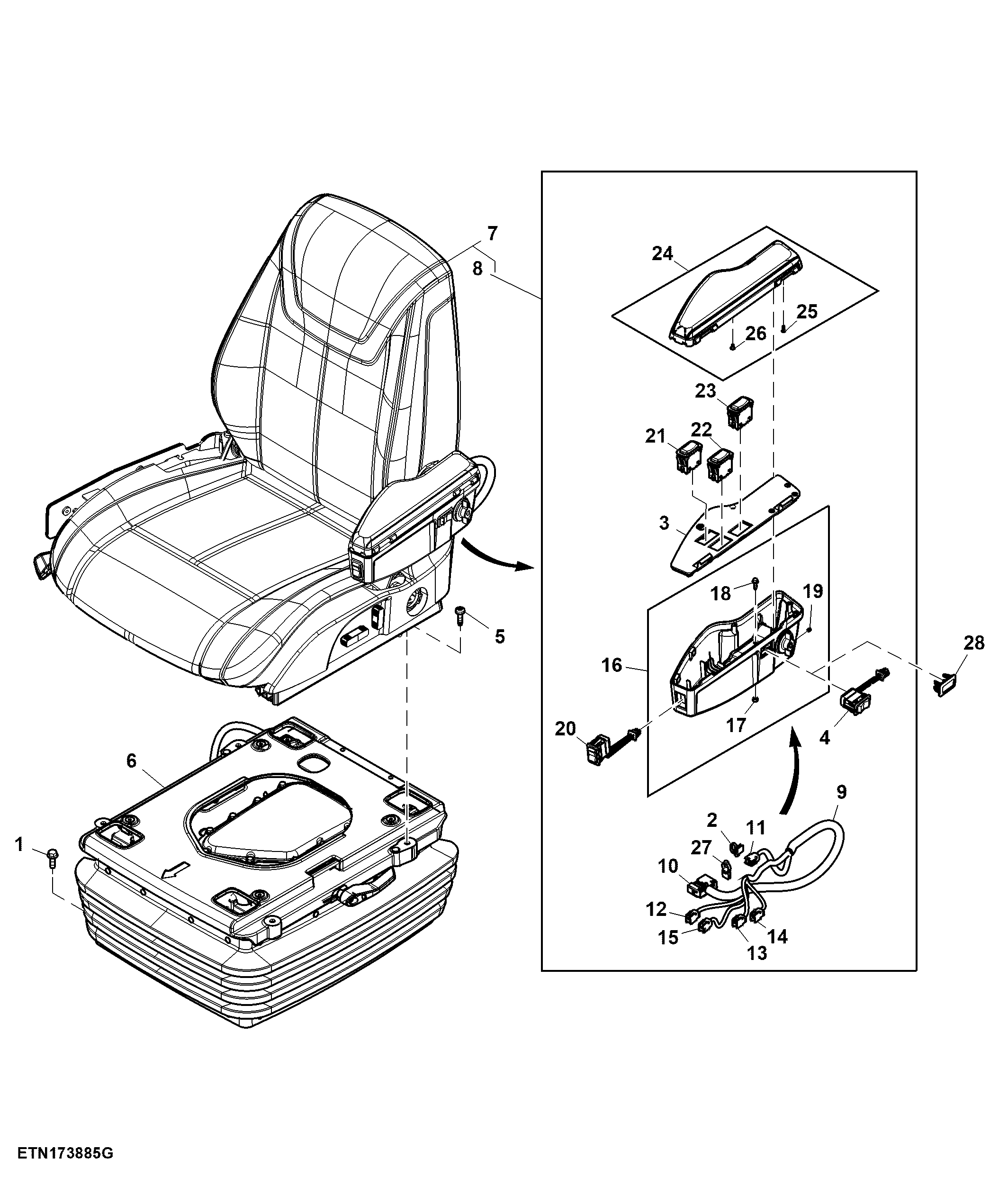

Seat Assembly, Premium, ActiveSeat™ (802021 - )
