Oil Line, Standard Flow Pump, e23™ ( - 804000)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R565759	1	Oil Tube	-
2	19M7789	2	Screw	M12 X 30
3	RE593459	1	Oil Line	Transmission Supply, ORDER RE596975
4	RE593460	1	Oil Line	Transmission Lubricant, ORDER RE596974
5	38H5005	1	Adapter Fitting	INCLUDES 51M7047
6	T77858	1	O-Ring	-
7	51M7047	1	O-Ring	23.600 X 2.900 mm
8	38H5004	1	Adapter Fitting	INCLUDES 51M7045
9	T77932	1	O-Ring	-
10	51M7045	1	O-Ring	19.300 X 2.200 mm
11	19M7821	2	Screw	M12 X 120
12	B3690R	1	O-Ring	-
13	R543539	1	Gasket	-
14	RE46684	1	Fitting Plug	-
15	51M7041	1	O-Ring	11.300 X 2.200 mm
16	64M1010	1	Drain Plug	-
17	51M7048	1	O-Ring	29.600 X 2.900 mm
18	RE593461	1	Oil Line	PTO Supply, ORDER RE596992
19	RE595447	1	Oil Line	Rear Park Pump Off Steel Line, INCLUDES T77613
20	T77613	2	O-Ring	-
21	H114865	4	Clamp	-
22	H112567	2	Plate	-
23	19M7801	2	Screw	M8 X 60
24	RE595435	1	Oil Line	Front Park Pump Off Steel Line
25	H127589	2	Clamp	-
26	19M7798	1	Screw	M8 X 40
27	R571505	1	Hydraulic Hose	-
28	H156922	2	Hose Clamp	-
29	R565817	1	Cover	-
30	19M7866	4	Screw	M8 X 20
31	38H5145	1	Elbow Fitting	-
32	R572006	2	Block Clamp	-
33	R314966	4	Bolt	-
34	RE596975	1	Oil Line	Transmission Supply
35	RE596974	1	Oil Line	Transmission Lubricant
36	RE596992	1	Oil Line	PTO Supply

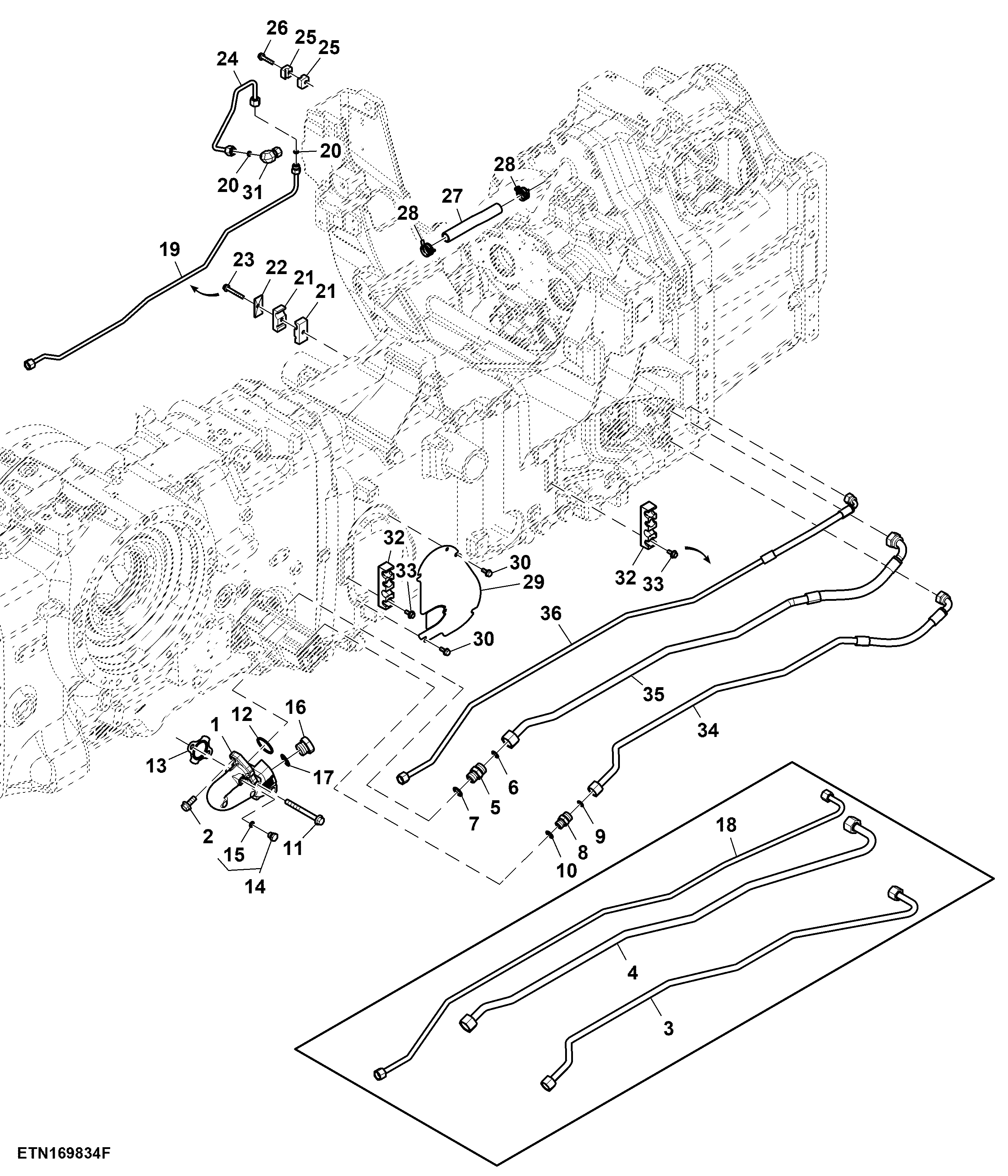

Oil Line, Standard Flow Pump, e23™ ( - 804000)
